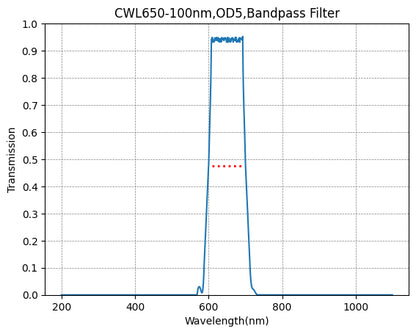

• A graph showing the transmission rate on the y-axis against wavelength on the x-axis for a bandpass filter with a central wavelength of 650nm and a FWHM of 100nm.
1 2

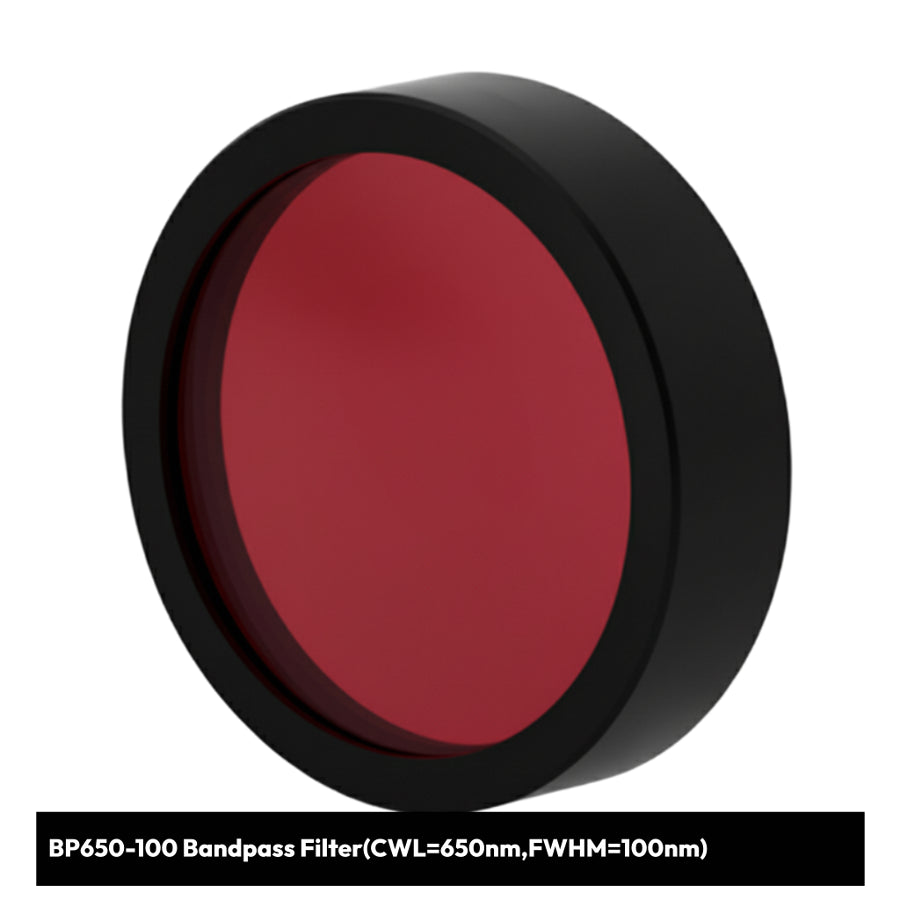

BP650-100 Bandpass Filter(CWL=650nm,FWHM=100nm)

BP650-100 Bandpass Filter(CWL=650nm,FWHM=100nm)

PN:SO3010406

$55.00 USD
$55.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Broadband Deep Red Bandpass Filter

The BP650-100 Bandpass Filter delivers exceptional light collection at 650nm with a wide 100nm full-width half-maximum (FWHM). This broadband filter provides excellent coverage across the red to near-infrared transition region, making it ideal for applications requiring high light throughput and comprehensive spectral coverage.

Key Features & Benefits

  • Central Wavelength: CWL=650nm ±3nm at the red/near-infrared boundary
  • Wide Bandwidth: 100nm FWHM maximizes light collection across broad spectral range
  • High Transmission: >90% peak transmission ensures maximum available light
  • Broad Coverage: Captures wavelengths from ~600nm to ~700nm in single filter
  • Reliable Construction: Hard-coated surfaces provide long-lasting optical performance

Versatile Applications

Perfect for broadband imaging systems, multi-spectral analysis, color photography applications, and systems requiring high sensitivity across the red spectrum. The 100nm bandwidth makes it excellent for applications where signal strength is prioritized over narrow spectral selectivity.

Enhanced Light Collection

When your application demands strong signal collection across the red to near-infrared spectrum, this filter excels. The wide 100nm bandwidth captures a comprehensive range of wavelengths, making it perfect for high-sensitivity imaging, broadband spectroscopy, and applications where maximizing photon collection is more important than precise wavelength discrimination.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
