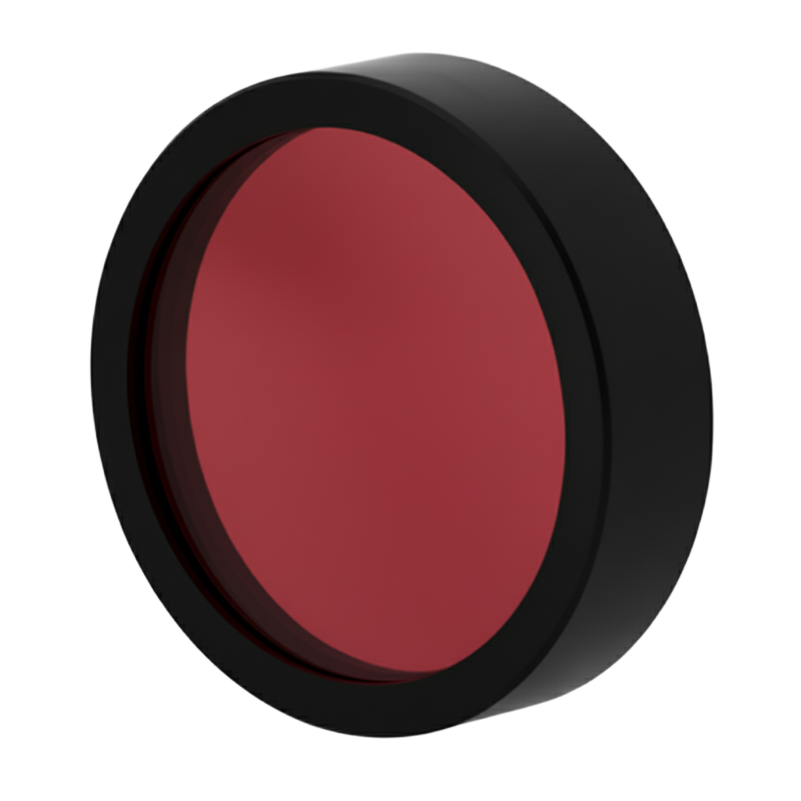

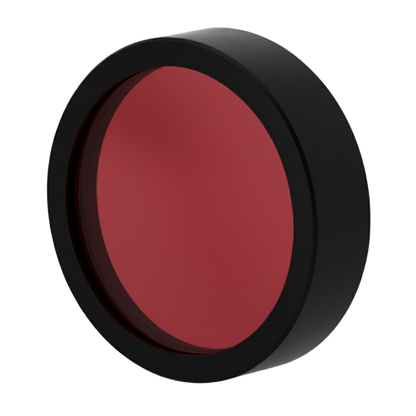

BP700-100 Bandpass Filter(CWL=700nm,FWHM=100nm)
BP700-100 Bandpass Filter(CWL=700nm,FWHM=100nm)
PN:SO3010476
Couldn't load pickup availability
Broadband Red to Near-Infrared Bandpass Filter
The BP700-100 Bandpass Filter is engineered for applications requiring broad spectral coverage spanning from deep red visible light into the near-infrared spectrum. With its 700nm center wavelength and wide 100nm FWHM, this filter provides excellent transmission across the critical red-to-NIR transition region while maintaining superior out-of-band blocking.
Key Features:
- Red-NIR Optimized: 700nm center wavelength bridging visible and NIR spectra
- Wide Bandwidth: 100nm FWHM for comprehensive spectral coverage
- High Transmission: >85% average transmission across passband
- Superior Blocking: Excellent rejection of unwanted wavelengths
- Robust Design: Hard-coated surfaces for demanding applications
- Temperature Stable: Consistent performance across operating range
Versatile Applications:
- Agricultural and vegetation monitoring
- Biomedical imaging and tissue analysis
- Industrial quality control and inspection
- Multi-spectral imaging systems
- Remote sensing applications
- Fluorescence and luminescence studies
Technical Specifications:
- Center Wavelength (CWL): 700nm
- Full Width Half Maximum (FWHM): 100nm
- Passband Range: ~650nm to 750nm
- Substrate: High-quality optical glass
- Coating: Broadband multi-layer coating
- Surface Quality: 40-20 scratch-dig
- Parallelism: <30 arcseconds
- Clear Aperture: >90% of diameter
Wide Bandwidth Advantages:
The generous 100nm bandwidth makes this filter ideal for:
- Applications requiring both visible red and NIR wavelengths
- Agricultural monitoring utilizing chlorophyll absorption characteristics
- Biomedical applications in the optical window region
- Systems with broadband light sources or LED arrays
- Multi-spectral analysis without filter switching
This spectral range (650-750nm) captures the transition from visible red light into the near-infrared, making it particularly valuable for vegetation analysis where chlorophyll absorption in red light contrasts with high NIR reflectance.
Perfect for researchers and engineers working with agricultural monitoring, biomedical imaging, and multi-spectral applications where comprehensive red-to-NIR coverage provides enhanced analytical capabilities. Each filter is manufactured to exacting standards and tested for consistent performance across the entire passband.

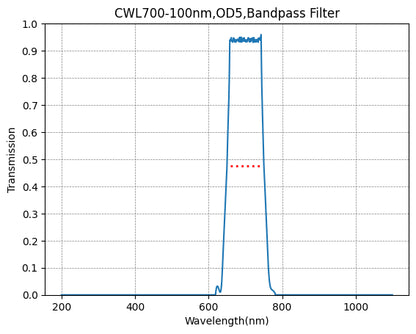

Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to shop@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact shop@syronoptics.com for details.
Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.
Methods
- Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
- Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
- Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.
Price
Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.
Packaging
Packaging
If you need generic packaging, please leave "Generic" in the note when placing order.
In such case:
- No Branding information in Packaging Materials
- All Documentation will be generic
- We will send image of the parcel to you before fulfilling shipment
- You can use your document template for the shipment.
Feel free to contact shop@syronoptics.com for details.
Payment
Payment
Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay
For amount under $200 you can request to make payment within 7days after receiving the order.
SKU:
View full details
Standard Mountings
Camera Mounting List
-
Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
