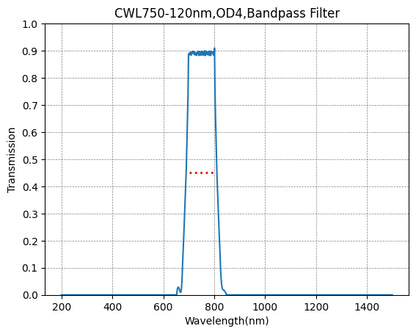

• Graph showing the transmission rate on the y-axis against wavelength in nanometers on the x-axis, indicating a bandpass filter with a central wavelength of 750nm and a bandwidth of 120nm.
1 2

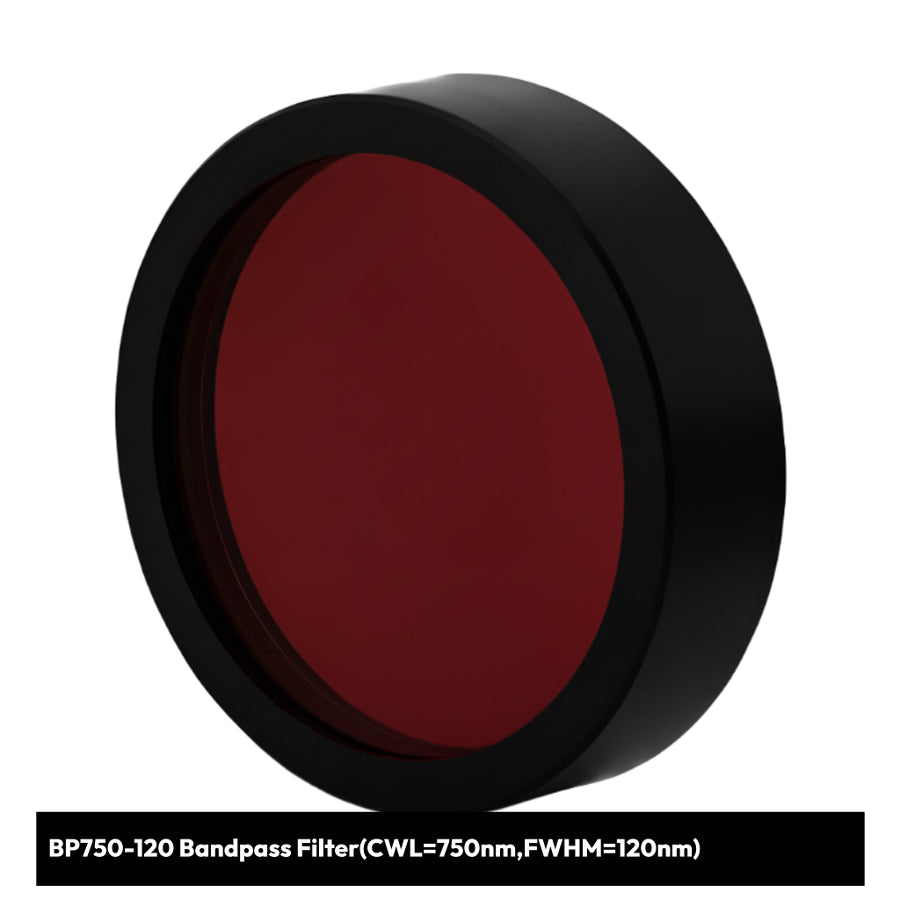

BP750-120 Bandpass Filter(CWL=750nm,FWHM=120nm)

BP750-120 Bandpass Filter(CWL=750nm,FWHM=120nm)

PN:SO3010505

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Broadband Visible Bandpass Filter for High-Throughput Applications

The BP750-120 Bandpass Filter delivers exceptional broadband performance for visible light applications at 750nm with a generous 120nm bandwidth. This filter provides superior light collection efficiency while maintaining effective spectral discrimination, making it ideal for applications requiring maximum signal throughput and broad spectral coverage in the visible spectrum.

Key Specifications:

  • Center Wavelength (CWL): 750nm - optimized for broadband visible applications
  • Full Width Half Maximum (FWHM): 120nm bandwidth for maximum light collection
  • High Throughput: Exceptional light transmission across the wide passband
  • Effective Blocking: Superior out-of-band rejection characteristics
  • Robust Design: Built for demanding optical environments

Prime Applications:

  • Broadband visible light imaging systems
  • General-purpose visible light detection and sensing
  • Industrial machine vision and automation
  • Wide-spectrum surveillance and monitoring
  • Multi-spectral imaging applications
  • Cost-effective visible light system prototyping
  • Educational and demonstration systems

Performance Benefits:

  • Maximum Light Collection: Wide bandwidth captures the most available signal
  • System Simplification: Single filter replaces multiple narrow-band components
  • Enhanced Sensitivity: Improved signal-to-noise ratio for low-light conditions
  • Versatile Performance: Suitable for diverse visible light applications
  • Cost-Effective Solution: Reduces system complexity and component count

SyronOptics Engineering: The BP750-120 filter is manufactured using our proven multi-layer coating technology, optimized for broadband performance while maintaining excellent durability. Each filter undergoes comprehensive quality testing to ensure consistent performance across the entire 120nm passband.

Perfect for system designers, engineers, and integrators who need maximum visible light collection, broad spectral coverage, or cost-effective solutions for general-purpose visible light applications at 750nm.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
