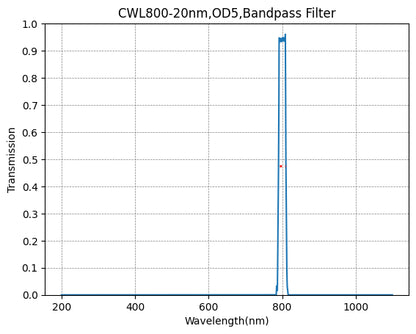

• A graph showing the transmission rate on the y-axis against wavelength on the x-axis for a bandpass filter with a central wavelength of 800nm and a full width at half maximum of 20nm.

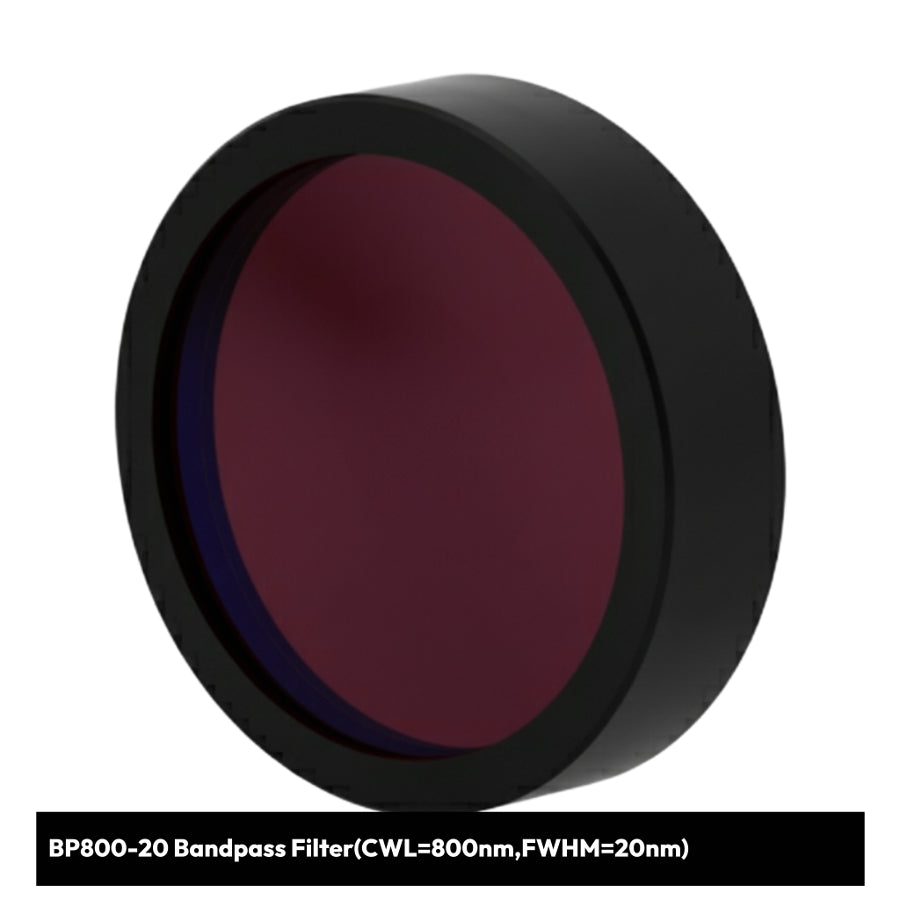

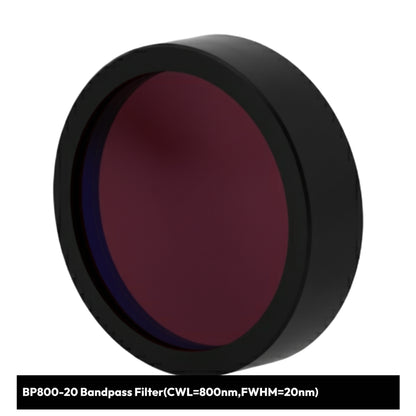

  • Bandpass filter with a dark red center and black rim on a white background
1 2

BP800-20 Bandpass Filter(CWL=800nm,FWHM=20nm)

BP800-20 Bandpass Filter(CWL=800nm,FWHM=20nm)

PartNumber:SO3010554

$55.00 USD
$55.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

In Stock.

Ships within 5 working days of order.
  • Wavelength: 800nm center wavelength with 20nm FWHM for near-infrared applications
  • Spectral Features: Precision bandpass transmission optimized for NIR spectroscopy, fluorescence imaging, and balanced optical applications
  • Optical Density: OD5 blocking for exceptional out-of-band rejection and signal clarity
  • Filter Dimension Availability: Multiple sizes available to fit your optical system requirements

Request Raw Data

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

Shipment & Delivery

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

Return & Refund

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

Custom Sizing

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

Payment Terms

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

View full details
  • BP800-20 Bandpass Filter - Near-Infrared (NIR) Fluorescence Imaging

    BP800-20 Bandpass Filter - Near-Infrared (NIR) Fluorescence Imaging

    Near-Infrared (NIR) Fluorescence Imaging

    This is a primary application for such high-spec filters. It can serve as an Emission Filter for fluorophores that emit around 800 nm.

    Target Fluorophores: It matches the emission profiles of dyes like Alexa Fluor 790 (Emission peak ~805-814 nm) or the tail of IRDye 800CW (Emission peak ~789 nm).

    Recommended Light Sources

    • 780 nm or 785 nm Laser Diode / LED: You need an excitation source lower than 800 nm to excite the fluorophore (e.g., Alexa Fluor 790), so the filter can detect the 800 nm emission.
  • BP800-20 Bandpass Filter - Machine Vision & Surveillance

    BP800-20 Bandpass Filter - Machine Vision & Surveillance

    Machine Vision & Surveillance

    Used on camera lenses to block all ambient light (sunlight, overhead room lighting) while allowing only 800 nm LED illumination to pass. Ideally suited for inspecting fruit (bruise detection often uses NIR) or reading invisible codes on packaging.

    Recommended Light Sources

    • 800 nm (or 805 nm) High-Power LEDs: The light source must match the filter's center wavelength. Since the bandwidth is narrow (20 nm), precise LED binning (e.g., 800 ±10 nm) is required to avoid losing light.

Fequently Asked Questions

Different Types of Filter Mountings

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount:

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

What are the Thickness of the Optical Filters?

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2.0mm

*Most of our optics are coming with 1.1mm and 2.0mm

With Standard Mounting (Mounted, No Thread):

  • 3.5mm (Default)
  • 6mm (Upon Request)

Thread Mounted:

  • 6mm - 8mm

  • dia12.5mm(mounted)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia12.5mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia25mm(mounted)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • SM05(0.535″-40TPI)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM05/SM05

  • SM1(1.035″-40TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM1/SM1

  • C-Mount(1″-32TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    Internal/External Thread:

    C-Mount/C-Mount
