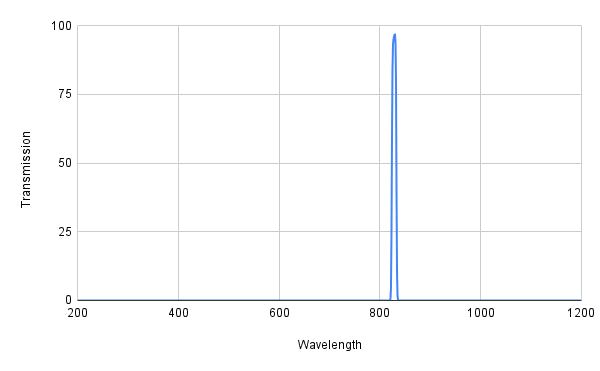

• Graph showing the transmission of a bandpass filter with wavelength on the x-axis and transmission on the y-axis, indicating a peak transmission at approximately 830nm with a FWHM of 10nm.
1 2

BP830-10 Bandpass Filter(CWL=830nm,FWHM=10nm)

BP830-10 Bandpass Filter(CWL=830nm,FWHM=10nm)

PN:SO3010592

$60.00 USD
$60.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Ultra-Precision NIR Bandpass Filter for Critical Applications

The BP830-10 Bandpass Filter represents the pinnacle of optical precision with its expertly engineered 830nm center wavelength and ultra-narrow 10nm FWHM bandwidth. This high-performance filter delivers exceptional spectral selectivity for the most demanding near-infrared applications where precision and purity are absolutely critical.

Key Features:

  • Ultra-Narrow Bandwidth: 10nm FWHM provides exceptional spectral resolution and unmatched selectivity
  • Precision Wavelength: 830nm center wavelength optimized for critical NIR spectroscopy applications
  • Superior Blocking: OD3+ out-of-band rejection eliminates unwanted spectral interference
  • Maximum Transmission: Advanced optical coatings ensure optimal signal throughput within the passband
  • Exceptional Quality: Manufactured to the highest precision standards for consistent performance

Applications:

Ideal for high-resolution spectroscopy, precision fluorescence imaging, laser line filtering, and analytical instrumentation where narrow spectral windows are essential. Perfect for applications requiring the highest level of spectral purity and wavelength discrimination in the NIR region.

Technical Excellence:

This filter excels in the most demanding applications where spectral purity is paramount. Whether you're conducting advanced research, performing critical measurements, or developing precision optical systems, the BP830-10 delivers the ultra-narrow bandwidth performance that sets your work apart from the competition.

When absolute precision matters most, trust the optical excellence that only ultra-narrow bandwidth filtering can deliver.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
