BP910-10 Bandpass Filter(CWL=910nm,FWHM=10nm)
BP910-10 Bandpass Filter(CWL=910nm,FWHM=10nm)
PN:SO3010696
Couldn't load pickup availability
Near-Infrared Bandpass Filter for Precision Optical Applications
The BP910-10 is a high-performance bandpass filter engineered for demanding applications in the near-infrared (NIR) spectral region. With a center wavelength of 910nm and ultra-narrow 10nm FWHM, this filter delivers exceptional spectral precision for biomedical imaging, laser applications, and advanced analytical instrumentation.
Key Features:
- Ultra-Narrow Band Precision: 910nm center wavelength with extremely tight 10nm full width at half maximum (FWHM)
- NIR Optimization: Specifically designed for near-infrared applications
- Superior Blocking Performance: OD2+ optical density for maximum contrast and signal purity
- Advanced Coating Technology: Multi-layer interference coating optimized for NIR transmission
Primary Applications:
Biomedical & Life Sciences:
- Near-infrared fluorescence imaging
- Deep tissue penetration studies
- Photodynamic therapy applications
- Optical coherence tomography (OCT)
Laser & Photonics:
- Laser diode characterization and testing
- Fiber laser applications
- Optical amplifier systems
- Laser safety and beam cleanup
Industrial & Research:
- NIR spectroscopy and analysis
- Water content measurement
- Process monitoring and control
- Custom NIR optical instrument integration
Technical Specifications:
- Center Wavelength (CWL): 910nm
- Full Width Half Maximum (FWHM): 10nm
- Optical Density: OD2+
- Spectral Range: Near-infrared (NIR)
- High transmission efficiency in passband
- Excellent out-of-band rejection
Engineered for professionals working with NIR applications, the BP910-10 provides exceptional performance in biomedical imaging and laser systems. Each filter undergoes comprehensive testing to ensure it meets the stringent requirements for near-infrared optical applications, delivering consistent results for critical research and industrial tasks.

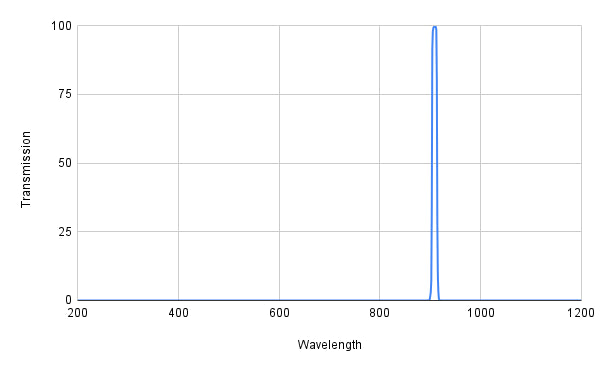

Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to shop@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact shop@syronoptics.com for details.
Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.
Methods
- Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
- Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
- Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.
Price
Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.
Packaging
Packaging
If you need generic packaging, please leave "Generic" in the note when placing order.
In such case:
- No Branding information in Packaging Materials
- All Documentation will be generic
- We will send image of the parcel to you before fulfilling shipment
- You can use your document template for the shipment.
Feel free to contact shop@syronoptics.com for details.
Payment
Payment
Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay
For amount under $200 you can request to make payment within 7days after receiving the order.
SKU:
View full details
Standard Mountings
Camera Mounting List
-
Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
