1 2

BP915-20 Bandpass Filter(CWL=915nm,FWHM=20nm)

BP915-20 Bandpass Filter(CWL=915nm,FWHM=20nm)

PN:SO3010702

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Precision Near-Infrared Bandpass Filter for LiDAR

The BP915-20 bandpass filter delivers exceptional performance at 915nm, operating in the near-infrared region of the electromagnetic spectrum. With its precise 20nm full-width half-maximum (FWHM), this filter provides excellent spectral selectivity while maintaining good light collection efficiency for demanding NIR applications, particularly LiDAR systems.

Superior Specifications:

  • Center Wavelength: 915nm ± 2nm precision
  • Precise Bandwidth: 20nm FWHM for optimal selectivity
  • High NIR Transmission: >85% peak transmission
  • Excellent Blocking: Superior out-of-band rejection
  • Professional Construction: Hard-coated for durability

Key Applications:

  • LiDAR systems and ranging applications
  • NIR imaging and spectroscopy
  • Biomedical and clinical diagnostics
  • Industrial process monitoring
  • Precision sensing applications
  • Environmental monitoring systems

The 915nm LiDAR Advantage:

At 915nm, this filter operates in a strategic NIR region ideal for LiDAR and ranging applications. The 20nm bandwidth provides excellent spectral selectivity while maintaining adequate light collection, making it perfect for applications requiring precise wavelength control with good signal strength in laser-based measurement systems.

Trust SyronOptics for reliable precision NIR filtering in LiDAR applications. Our manufacturing excellence ensures consistent optical quality in your critical near-infrared systems where spectral accuracy and reliability are essential.

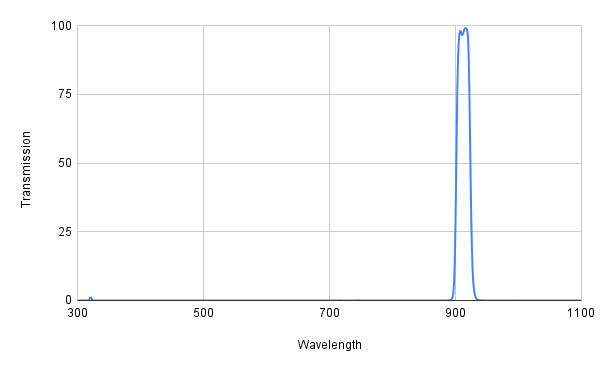

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
