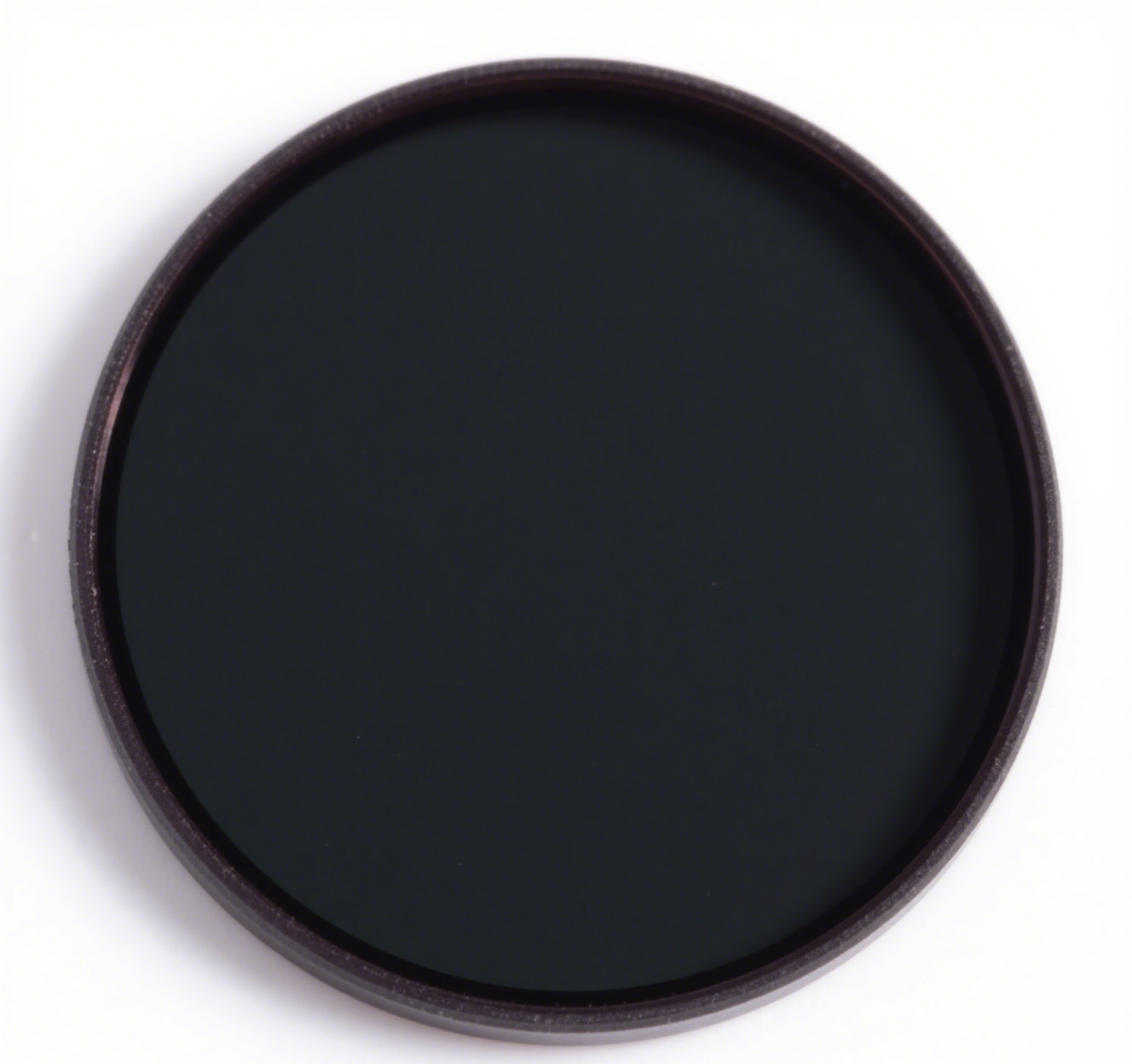

BP940-25 Bandpass Filter(CWL=940nm,FWHM=25nm)
BP940-25 Bandpass Filter(CWL=940nm,FWHM=25nm)
PN:SO3010912
Couldn't load pickup availability
The 940nm wavelength sits in the optimal near-infrared range for machine vision applications, providing excellent penetration through various materials while maintaining high contrast and signal clarity. This makes it ideal for applications requiring consistent performance regardless of ambient lighting conditions.
- 90% Peak Transmission: Maximize light throughput for brighter, clearer imaging
- OD3 Blocking (200-1100nm): Eliminate unwanted wavelengths that could compromise system accuracy
- 25nm FWHM: Precise spectral control for consistent, repeatable results
Ideal Machine Vision Applications:
- Fingerprint Recognition Systems Enhance biometric security systems with superior contrast and detail capture. The 940nm wavelength penetrates skin surface irregularities while highlighting ridge patterns for more accurate identification.
- IR Sensing Applications Perfect for proximity sensors, gesture recognition, and object detection systems. Provides reliable performance in varying environmental conditions while filtering out visible light interference.
- Night Vision Systems Enable clear imaging in low-light conditions without visible illumination. Ideal for security cameras, automotive night vision, and surveillance applications where covert operation is essential.

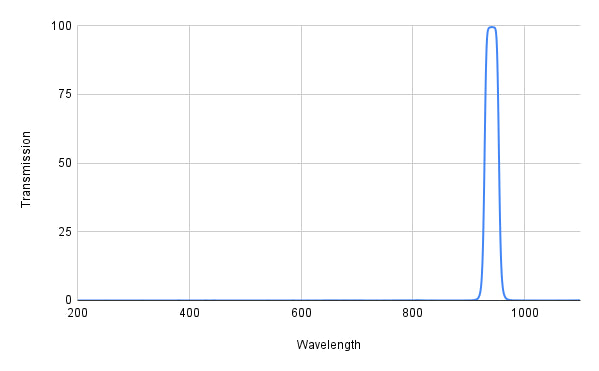

Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to shop@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact shop@syronoptics.com for details.
Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.
Methods
- Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
- Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
- Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.
Price
Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.
Packaging
Packaging
If you need generic packaging, please leave "Generic" in the note when placing order.
In such case:
- No Branding information in Packaging Materials
- All Documentation will be generic
- We will send image of the parcel to you before fulfilling shipment
- You can use your document template for the shipment.
Feel free to contact shop@syronoptics.com for details.
Payment
Payment
Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay
For amount under $200 you can request to make payment within 7days after receiving the order.
SKU:
View full details
Standard Mountings
Camera Mounting List
-
Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
