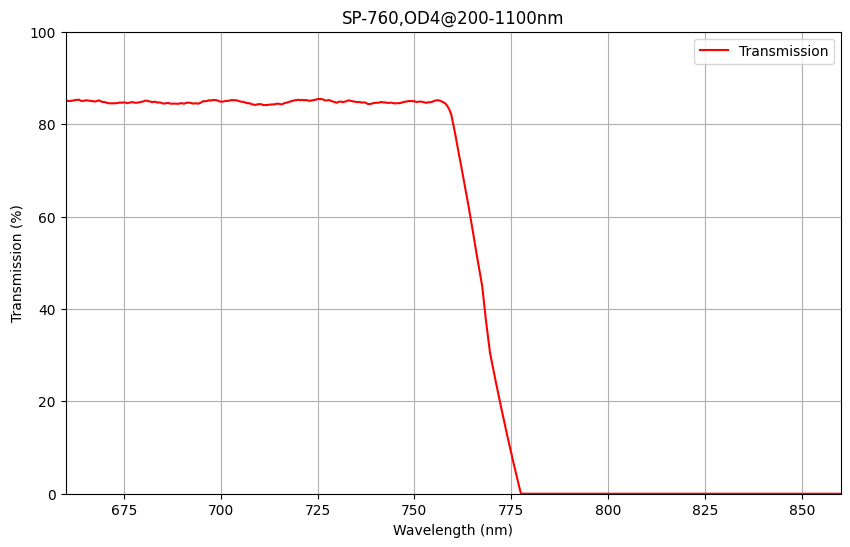

• A graph showing the transmission percentage on the y-axis against wavelength in nanometers on the x-axis, indicating the SP760 shortpass filter's transmission properties.
1 1

SP760 Shortpass Filter (T＞85%@400-750nm,OD4@200-1100nm)

SP760 Shortpass Filter (T＞85%@400-750nm,OD4@200-1100nm)

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Cut-off Wavelength
Transmission // Blocking
Dimension

SP760 Shortpass Filter - Advanced Visible Spectrum Control

The SP760 Shortpass Filter delivers exceptional optical performance with broad visible spectrum transmission and superior OD4 blocking, making it ideal for applications requiring precise red-edge wavelength control with comprehensive out-of-band rejection across UV to near-infrared wavelengths.

Key Specifications:

  • Cut-off Wavelength: 760nm (T=50%)
  • Broad Transmission Range: T>85% @ 400-750nm
  • Superior Blocking Range: OD4 @ 200-1100nm
  • Optical Density: >10,000:1 blocking ratio
  • Complete Visible Coverage: 350nm transmission bandwidth

Applications & Benefits:

  • Red-Edge Spectroscopy: Perfect for vegetation analysis and chlorophyll fluorescence studies
  • Visible Light Imaging: Complete visible spectrum coverage with precise NIR edge control
  • Fluorescence Microscopy: Prevents NIR excitation bleed-through in red fluorophore imaging
  • Photosynthesis Research: Ideal for studying plant photosystem responses at the red edge
  • Color Science Applications: Eliminates infrared contamination for accurate color measurements

Technical Advantages:

  • Superior OD4 blocking - 10,000:1 rejection ratio for maximum protection
  • Complete visible spectrum transmission maximizes light collection efficiency
  • Comprehensive UV to NIR blocking prevents unwanted interference
  • Sharp transition at 760nm - critical for red-edge applications
  • Excellent signal preservation across entire visible range
  • Durable multi-layer coating ensures long-term stability

Essential for researchers and engineers working at the visible-NIR boundary who need comprehensive blocking performance. This filter provides the precision and superior rejection required for red-edge spectroscopy, photosynthesis research, and optical systems where complete visible transmission with excellent out-of-band blocking is critical.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to info@syronoptics.com to get raw data.

Shipment & Delivery

Shipment will usually be made within 5 working days after order.

Delivery from local warehouse is available for below countries and region.

  1. USA
  2. UK
  3. Europe
  4. China
  5. Singapore

To request shipment from local warehouse you need to provide your order number to order@syronoptics.com and inform us from which warehouse you want to initial the shipment.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Payment Notice

Payment could be done online with Credit Card, Apple Pay, Google Pay.

Amount will not be deducted immediately after you authorized the payment. We will share raw data for confirmation by email, only after confirmation the amount will be deducted.

For amount under $100 you can request to make payment within 7 days after received the product. (NET7)

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact info@syronoptics.com for details.

Custom Mounting

We have filter mounting option including:

  • Threaded Mounting
  • Retaining Ring
  • Filter Wheel
  • Filter Cube
  • Filter Slide

Buy in Bulk

For order quantity (or equal coating size) above 100pcs x dia25mm filters. Discount will be available.

Generally the discount will be ranging from 10 - 50% depending on the quantity and specification you are ordering.
