SP830 Shortpass Filter - High Transmission 450-800nm

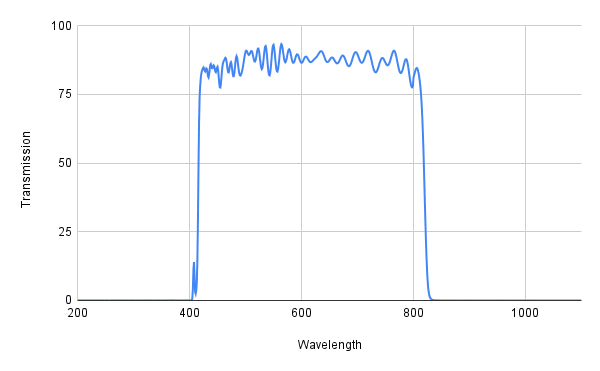

Spectral transmission graph with a blue line on a white background

SP830 Shortpass Filter (T＞90%@450-800nm, OD5@960-1200nm)

Cut-off = 830nm / T＞90%@450-800nm // OD5@960-1200nm / dia12.5mm(unmounted)

$50.00

SP830 Shortpass Filter (T＞90%@450-800nm, OD5@960-1200nm)

SO3030026

Cut-off Wavelength

Cut-off = 830nm

Transmission // Blocking

T＞90%@450-800nm // OD5@960-1200nm

Dimension

SO3030026n-d12.5u

In stock

$50.00

Yes. Listed filters are generally available from stock, but final availability may depend on size and quantity.

Most filters are kept as medium-sized coated pieces
Final size is usually diced before shipment
Preparation time may vary for urgent orders, custom sizes, or larger quantities

We can usually cut optical filters to custom outer sizes, depending on available coated material.

Custom size

Typical custom size range: 3 × 3mm to 60 × 60mm
Custom sizing changes the outer dimension only
Thickness normally follows the original filter specification
Final feasibility depends on coated material size and cutting requirements

Mounting

Standard mounting options are
dia12.5mm (mounted) - OD = dia12.5mm,Thickness=3.5mm,No Thread
dia25mm (mounted) - OD = dia25mm,Thickness=3.5mm,No Thread
Mounted options can include non-threaded or threaded mounts
Custom mounting may be possible depending on quantity and mechanical requirements

Note

Please send the required size, quantity, mounting type, and product link before ordering.

Yes. You may request the transmission curve or related spectral data for engineering review.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

We ship optical products to most supported regions, with shipping cost and delivery method confirmed before payment.

Shipping cost

Shipping is generally USD 5–40 per parcel
Orders above USD 300 are eligible for free shipping
Final cost depends on destination, package size, order value, and shipping method
Shipping cost is shown during checkout or confirmed before payment

Shipping coverage

We generally ship to Europe, North America, Asia, the Middle East, and Oceania
Some countries may be unavailable depending on logistics or customs conditions

Delivery time

Most stocked products need 1–5 working days for preparation before shipment
After shipment, delivery time depends on destination and shipping method
Tracking information will be provided when available

Note

If your destination is not available during checkout, please contact us before ordering.

You can order online, request a quotation, or use bank transfer depending on your purchasing process.

Can I request a quotation before ordering?

Yes, formal quotations are available before payment
Recommended for company purchases, larger quantities, custom sizes, or special shipping requirements
Please send the product link, quantity, destination country, and billing details if available

What online payment methods are available?

Credit card
Apple Pay
Google Pay

Do you support bank transfer?

Yes, bank transfer is available
We support multi-currency payment through local banking where available
Local receiving accounts may include US, UK, Germany, Singapore, and Hong Kong bank accounts
For payment in Chinese RMB inside Mainland China, please contact our local partner
VAT fapiao may be supported for eligible Mainland China transactions

Do you support company purchase orders?

Company purchase orders may be supported after confirmation
Please contact us before ordering if your organization requires PO processing, quotation, or invoice matching

Are NET payment terms available? (Pay after received)

NET 7 or NET 30 terms may be available for eligible organizations
Approval depends on company type, order value, payment history, and internal review
Please contact us before ordering if you need NET payment terms

mport duties, taxes, and customs handling depend on your destination country and shipping method.

Are duties and taxes included?

For express courier services such as DHL or FedEx, duties, taxes, and customs handling are usually paid by the buyer
The final import cost depends on destination country, declared value, and local customs rules
Duties and taxes are not included unless clearly confirmed before payment

Can SyronOptics help with import clearance?

Import-handled delivery may be available for selected regions
Supported regions may include USA, Canada, United Kingdom,Europe, Mainland China, Hong Kong, Singapore, Australia, and New Zealand
With import-handled delivery, we help arrange clearance and local delivery
This option may be slower than express courier

Note

If you are not sure, please contact us to confirm whether import-handled delivery is supported in your region.

This SP830 shortpass filter is designed to transmit shorter wavelengths while reducing longer-wavelength infrared light. It is suitable for imaging, sensing, and optical inspection systems where shorter-wavelength signal needs to be separated from longer-wavelength background using broadband illumination or wavelength-centered signal detection setups. It helps reduce long-wavelength interference, protect detectors from unwanted infrared light, and improve signal clarity in shorter-wavelength measurements.

Key specifications:

Wavelength / main spec: 830 nm cut-off wavelength
Bandwidth / transition spec: See specification table for transition characteristics
Transmission / blocking: T >90%; OD5 blocking from 960-1200 nm
Format / custom option: Available in Dia 12.5mm to dia 25mm (mounted/unmounted), 60x60mm(unmounted); Custom sizes and mounting options available on request

Specifications for product SP830 Shortpass Filter (T＞90%@450-800nm, OD5@960-1200nm)
Part Number
PN	SO3030026
Specifications
Cut-Off Wavelength	830nm
Blocking Region	OD5
Curve

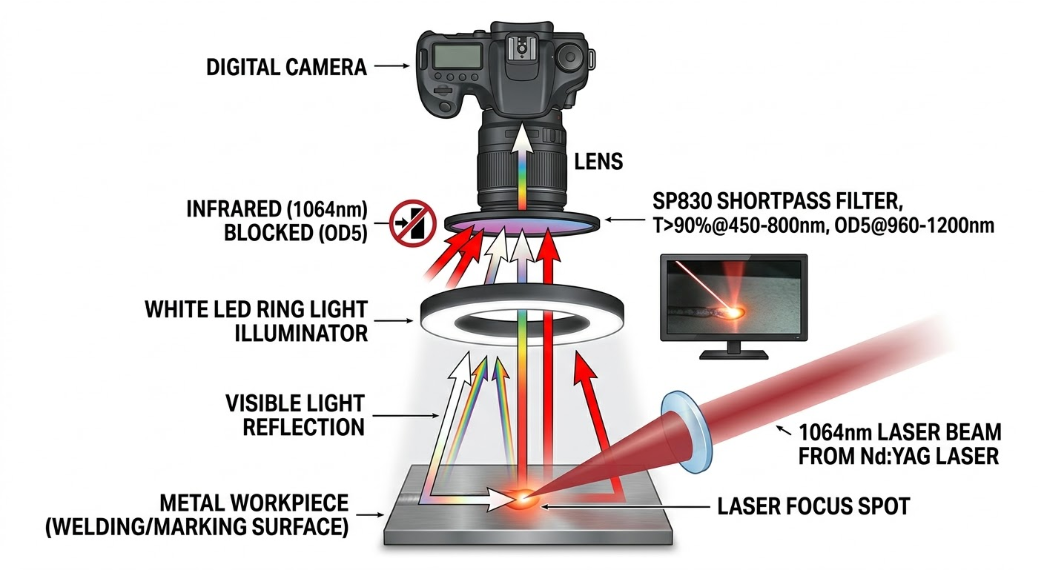

SP830 Shortpass Filter - Industrial Laser Welding/Marking Inspection

Industrial Laser Welding/Marking Inspection

In manufacturing, cameras are used to watch machines weld or engrave metal in real-time. These machines often use powerful, invisible infrared lasers (like Nd:YAG lasers, which operate at 1064nm) to do the cutting. Without a filter, the intense invisible laser would blind or damage the camera. This filter shields the camera by blocking the dangerous 1064nm laser (which falls in the 960-1200nm blocking zone) while letting normal visible light through so the camera can clearly see the metal parts being worked on.

Recommended light source:

White LED Ring Lights: They provide bright, even, visible light that easily passes through the filter's 450-800nm window, allowing the camera to see the physical parts clearly without casting shadows or heating up the workspace.
Halogen Lamps: They offer a very natural, broad spectrum of visible light. This is highly advantageous if the camera needs to see highly accurate, true-to-life colors during the quality inspection process.

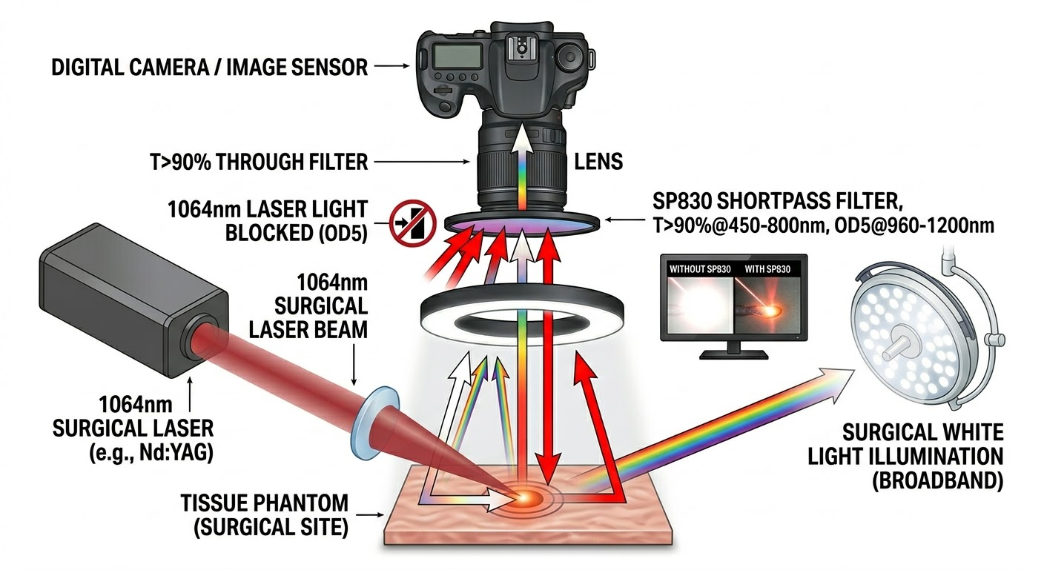

SP830 Shortpass Filter - Medical Laser Surgery Observation

Medical Laser Surgery Observation

During certain modern surgeries or dental procedures, doctors use high-powered infrared lasers to precisely cut or treat tissue. A camera is often attached to a medical microscope so the surgical team can watch on a monitor. This filter protects the camera sensor from being overwhelmed by the invisible surgical laser, ensuring the screen doesn't just show a massive blinding glare, while letting the visible colors of the tissue and blood pass through clearly.

Recommended light source:

Standard Surgical LED Lights: They produce brilliant, cool-temperature visible light that easily passes right through the filter, showing the true colors of human tissue without exposing the patient to extra heat.
Xenon Arc Lamps: Often used in fiber-optic medical tools (like endoscopes), they provide an extremely intense, pure white light that illuminates tiny, dark spaces perfectly for the camera to capture through the filter.

Similar Bandpass Filters

Product Faqs

Need Help Confirming This Filter?

Whether you are replacing an existing part or building a new system, send us:
- Original part number or target specification
- Required size and quantity
- Application or system goal

We will help check product fit or suggest a stock/custom alternative.
