SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)

SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)

Cut-off=1165nm / T>90%@595-1150nm // OD4@1200-1800nm / dia12.5mm(unmounted)
$45.00
Skip to product information
SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)
  • SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)
  • SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)
  • SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)
  • SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)
  • SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)
SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)

SP1165 Shortpass Filter(T>90%@595-1150nm,OD4@1200-1800nm)

SO3030393
Cut-off Wavelength
Cut-off Wavelength
Cut-off=1165nm
Transmission // Blocking
Transmission // Blocking
T>90%@595-1150nm // OD4@1200-1800nm
SO3030393-d12.5u
In stock
$45.00
  • American Express
  • Apple Pay
  • Cartes Bancaires
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa
Stock Availability

Yes. Listed filters are generally available from stock, but final availability may depend on size and quantity.

  • Most filters are kept as medium-sized coated pieces
  • Final size is usually diced before shipment
  • Preparation time may vary for urgent orders, custom sizes, or larger quantities
Custom Size & Mounting

We can usually cut optical filters to custom outer sizes, depending on available coated material.

Custom size
  • Typical custom size range: 3 × 3mm to 60 × 60mm
  • Custom sizing changes the outer dimension only
  • Thickness normally follows the original filter specification
  • Final feasibility depends on coated material size and cutting requirements
Mounting
  • Standard mounting options are
    dia12.5mm (mounted) - OD = dia12.5mm,Thickness=3.5mm,No Thread
    dia25mm (mounted) - OD = dia25mm,Thickness=3.5mm,No Thread
  • Mounted options can include non-threaded or threaded mounts
  • Custom mounting may be possible depending on quantity and mechanical requirements
Note
  • Please send the required size, quantity, mounting type, and product link before ordering.
Request Raw Data

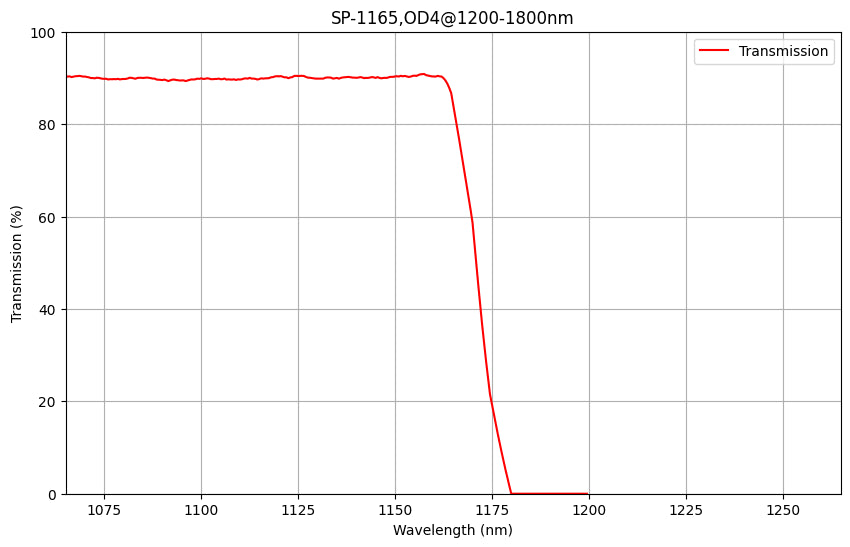

Yes. You may request the transmission curve or related spectral data for engineering review.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
Shipment & Delivery

We ship optical products to most supported regions, with shipping cost and delivery method confirmed before payment.

Shipping cost
  • Shipping is generally USD 5–40 per parcel
  • Orders above USD 300 are eligible for free shipping
  • Final cost depends on destination, package size, order value, and shipping method
  • Shipping cost is shown during checkout or confirmed before payment
Shipping coverage
  • We generally ship to Europe, North America, Asia, the Middle East, and Oceania
  • Some countries may be unavailable depending on logistics or customs conditions
Delivery time
  • Most stocked products need 1–5 working days for preparation before shipment
  • After shipment, delivery time depends on destination and shipping method
  • Tracking information will be provided when available
Note
  • If your destination is not available during checkout, please contact us before ordering.
Payment & Quotation

You can order online, request a quotation, or use bank transfer depending on your purchasing process.

Can I request a quotation before ordering?
  • Yes, formal quotations are available before payment
  • Recommended for company purchases, larger quantities, custom sizes, or special shipping requirements
  • Please send the product link, quantity, destination country, and billing details if available
What online payment methods are available?
  • Credit card
  • Apple Pay
  • Google Pay
Do you support bank transfer?
  • Yes, bank transfer is available
  • We support multi-currency payment through local banking where available
  • Local receiving accounts may include US, UK, Germany, Singapore, and Hong Kong bank accounts
  • For payment in Chinese RMB inside Mainland China, please contact our local partner
  • VAT fapiao may be supported for eligible Mainland China transactions
Do you support company purchase orders?
  • Company purchase orders may be supported after confirmation
  • Please contact us before ordering if your organization requires PO processing, quotation, or invoice matching
Are NET payment terms available? (Pay after received)
  • NET 7 or NET 30 terms may be available for eligible organizations
  • Approval depends on company type, order value, payment history, and internal review
  • Please contact us before ordering if you need NET payment terms
Import, Duties & Customs

mport duties, taxes, and customs handling depend on your destination country and shipping method.

Are duties and taxes included?
  • For express courier services such as DHL or FedEx, duties, taxes, and customs handling are usually paid by the buyer
  • The final import cost depends on destination country, declared value, and local customs rules
  • Duties and taxes are not included unless clearly confirmed before payment
Can SyronOptics help with import clearance?
  • Import-handled delivery may be available for selected regions
  • Supported regions may include USA, Canada, United Kingdom,Europe, Mainland China, Hong Kong, Singapore, Australia, and New Zealand
  • With import-handled delivery, we help arrange clearance and local delivery
  • This option may be slower than express courier
Note
  • If you are not sure, please contact us to confirm whether import-handled delivery is supported in your region.

This SP1165 shortpass filter is designed to transmit shorter wavelengths while reducing longer-wavelength infrared light. It is suitable for imaging, sensing, and optical inspection systems where shorter-wavelength signal needs to be separated from longer-wavelength background using broadband illumination or wavelength-centered signal detection setups. It helps reduce long-wavelength interference, protect detectors from unwanted infrared light, and improve signal clarity in shorter-wavelength measurements.

Key specifications:

  • Wavelength / main spec: 1165 nm cut-off wavelength
  • Bandwidth / transition spec: See specification table for transition characteristics
  • Transmission / blocking: T >90%; OD4 blocking from 1200-1800 nm
  • Format / custom option: Available in Dia 12.5mm to dia 25mm (mounted/unmounted), 60x60mm(unmounted); Custom sizes and mounting options available on request
SP1165 Shortpass Filter - Protection from SWIR Lasers (Laser Safety/Machine Vision)

SP1165 Shortpass Filter - Protection from SWIR Lasers (Laser Safety/Machine Vision)

Protection from SWIR Lasers (Laser Safety/Machine Vision)

This is likely the primary application. The blocking range (1200-1800nm) perfectly covers the common "Telecom" and "Eye-Safe" laser wavelengths:

  • 1310 nm (O-band telecom)
  • 1550 nm (C-band telecom, LiDAR, Rangefinders)
  • Application: If you have a machine vision camera inspecting a fiber optic component or a laser welding process, this filter allows the camera to see the part (illuminated by visible/NIR light) while completely blocking the blinding glare from the high-power 1310/1550nm laser.

Recommended Light Sources

  • 850nm or 940nm NIR LEDs: These wavelengths fall perfectly within the filter's high-transmission window (>90%) and match the peak sensitivity of standard Silicon sensors. This ensures bright, high-contrast inspection images while remaining completely distinct from the blocked SWIR (1310/1550nm) laser noise.
  • 630nm or 660nm Red LEDs: Located safely within the passband (starting at 595nm), these provide visible illumination which can be useful for manual alignment or operator verification, while still offering high transmission efficiency to the camera.
SP1165 Shortpass Filter - Optimizing Silicon Sensors (CMOS/CCD)

SP1165 Shortpass Filter - Optimizing Silicon Sensors (CMOS/CCD)

Optimizing Silicon Sensors (CMOS/CCD)

Standard Silicon sensors lose sensitivity rapidly after 1000nm and become transparent/noisy. However, strong SWIR radiation (heat or ambient IR) can still cause thermal noise or "ghosting" in the image.

  • Application: High-precision inspection in hot environments (e.g., glass or metal manufacturing) where you want to image the product using NIR light but block the longer thermal radiation wavelengths (1200nm+) that might wash out the contrast.

Recommended Light Sources

  • High-Power 850nm or 940nm LEDs: Maximizes Signal-to-Heat Ratio. These monochromatic sources emit light exactly where the silicon sensor is most sensitive and the filter is most transparent (>90% transmission). Crucially, because they do not emit "waste" energy in the SWIR band, they allow you to overpower the thermal background radiation of the hot object with a strong, active signal, ensuring high-contrast images without adding to the heat noise.

Similar Bandpass Filters

Product Faqs

Cut-on / Cut-off Wavelength

Need Help Confirming This Filter?

Whether you are replacing an existing part or building a new system, send us:
- Original part number or target specification
- Required size and quantity
- Application or system goal

We will help check product fit or suggest a stock/custom alternative.
