LP510 Longpass Filter (T>85%@520-1200nm, OD5@200-500nm)

LP510 Longpass Filter (T>85%@520-1200nm, OD5@200-500nm)

Cut-on=510nm / T>85%@520-1200nm // OD5@200-500nm / dia12.5mm(unmounted)
$50.00
$50.00
Skip to product information
LP510 Longpass Filter (T>85%@520-1200nm, OD5@200-500nm)
  • LP510 Longpass Filter (T>85%@520-1200nm, OD5@200-500nm)
LP510 Longpass Filter (T>85%@520-1200nm, OD5@200-500nm)

LP510 Longpass Filter (T>85%@520-1200nm, OD5@200-500nm)

SO3040021
Cut-on Wavelength
Cut-on Wavelength
Cut-on=510nm
Transmission // Blocking
Transmission // Blocking
T>85%@520-1200nm // OD5@200-500nm
SO3040021-d12.5u
In stock
$50.00
$50.00
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa
Stock Availability

Yes. Listed filters are generally available from stock, but final availability may depend on size and quantity.

  • Most filters are kept as medium-sized coated pieces
  • Final size is usually diced before shipment
  • Preparation time may vary for urgent orders, custom sizes, or larger quantities
Custom Size & Mounting

We can usually cut optical filters to custom outer sizes, depending on available coated material.

Custom size
  • Typical custom size range: 3 × 3mm to 60 × 60mm
  • Custom sizing changes the outer dimension only
  • Thickness normally follows the original filter specification
  • Final feasibility depends on coated material size and cutting requirements
Mounting
  • Standard mounting options are
    dia12.5mm (mounted) - OD = dia12.5mm,Thickness=3.5mm,No Thread
    dia25mm (mounted) - OD = dia25mm,Thickness=3.5mm,No Thread
  • Mounted options can include non-threaded or threaded mounts
  • Custom mounting may be possible depending on quantity and mechanical requirements
Note
  • Please send the required size, quantity, mounting type, and product link before ordering.
Request Raw Data

Yes. You may request the transmission curve or related spectral data for engineering review.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
Shipment & Delivery

We ship optical products to most supported regions, with shipping cost and delivery method confirmed before payment.

Shipping cost
  • Shipping is generally USD 5–40 per parcel
  • Orders above USD 300 are eligible for free shipping
  • Final cost depends on destination, package size, order value, and shipping method
  • Shipping cost is shown during checkout or confirmed before payment
Shipping coverage
  • We generally ship to Europe, North America, Asia, the Middle East, and Oceania
  • Some countries may be unavailable depending on logistics or customs conditions
Delivery time
  • Most stocked products need 1–5 working days for preparation before shipment
  • After shipment, delivery time depends on destination and shipping method
  • Tracking information will be provided when available
Note
  • If your destination is not available during checkout, please contact us before ordering.
Payment & Quotation

You can order online, request a quotation, or use bank transfer depending on your purchasing process.

Can I request a quotation before ordering?
  • Yes, formal quotations are available before payment
  • Recommended for company purchases, larger quantities, custom sizes, or special shipping requirements
  • Please send the product link, quantity, destination country, and billing details if available
What online payment methods are available?
  • Credit card
  • Apple Pay
  • Google Pay
Do you support bank transfer?
  • Yes, bank transfer is available
  • We support multi-currency payment through local banking where available
  • Local receiving accounts may include US, UK, Germany, Singapore, and Hong Kong bank accounts
  • For payment in Chinese RMB inside Mainland China, please contact our local partner
  • VAT fapiao may be supported for eligible Mainland China transactions
Do you support company purchase orders?
  • Company purchase orders may be supported after confirmation
  • Please contact us before ordering if your organization requires PO processing, quotation, or invoice matching
Are NET payment terms available? (Pay after received)
  • NET 7 or NET 30 terms may be available for eligible organizations
  • Approval depends on company type, order value, payment history, and internal review
  • Please contact us before ordering if you need NET payment terms
Import, Duties & Customs

mport duties, taxes, and customs handling depend on your destination country and shipping method.

Are duties and taxes included?
  • For express courier services such as DHL or FedEx, duties, taxes, and customs handling are usually paid by the buyer
  • The final import cost depends on destination country, declared value, and local customs rules
  • Duties and taxes are not included unless clearly confirmed before payment
Can SyronOptics help with import clearance?
  • Import-handled delivery may be available for selected regions
  • Supported regions may include USA, Canada, United Kingdom,Europe, Mainland China, Hong Kong, Singapore, Australia, and New Zealand
  • With import-handled delivery, we help arrange clearance and local delivery
  • This option may be slower than express courier
Note
  • If you are not sure, please contact us to confirm whether import-handled delivery is supported in your region.

This LP510 longpass filter is designed to transmit wavelengths longer than the cut-on region while reducing shorter-wavelength visible light. It is suitable for fluorescence imaging, optical inspection, and visible-band optical measurement systems where longer-wavelength signal needs to be separated from visible excitation or shorter-wavelength background. It helps separate longer-wavelength emission from shorter-wavelength excitation and reduce visible background interference.

Key specifications:

  • Wavelength / main spec: 510 nm cut-on wavelength
  • Bandwidth / transition spec: See specification table for transition characteristics
  • Transmission / blocking: T>85% from 520-1200 nm ;  OD5 from 200-500 nm
  • Format / custom option: Available in 25.4 mm diameter and 60x60mm, mounting options

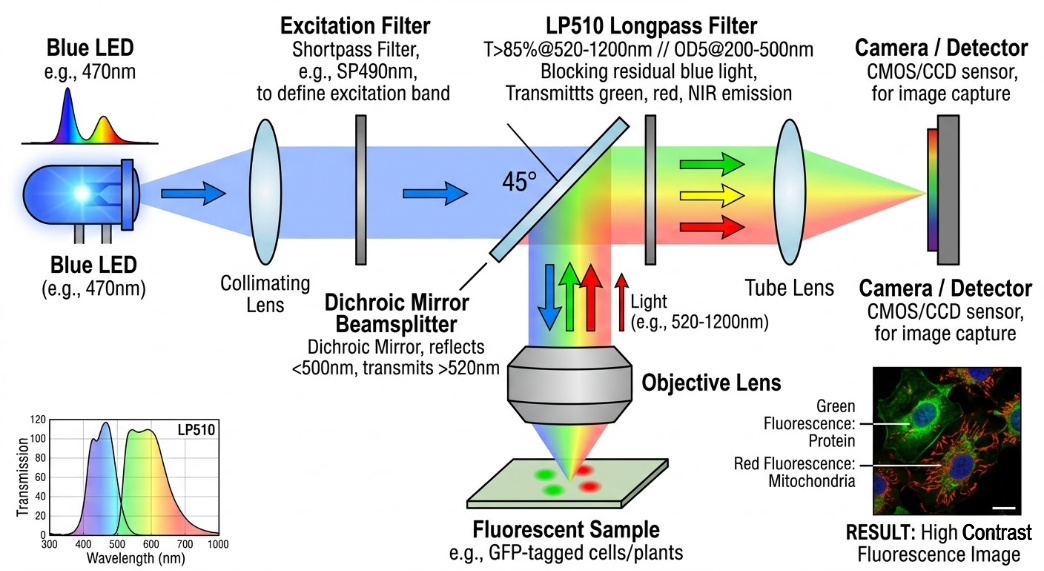

LP510 Longpass Filter - Fluorescence Imaging and Microscopy

LP510 Longpass Filter - Fluorescence Imaging and Microscopy

Fluorescence Imaging and Microscopy

In this application, scientists shine a blue or UV light on a sample (like cells, plants, or minerals) to make it glow in different colors (fluoresce). The LP510 filter acts like a pair of protective sunglasses for the camera lens. It strongly blocks the bright blue/UV "shining" light (from 200-500nm) so it doesn't blind the camera, while letting the much fainter green, red, or infrared "glowing" light (520-1200nm) pass through to be captured clearly.

Recommended light source:

  • Blue LED (e.g., 470nm or 488nm): It is excellent for "waking up" or exciting many common fluorescent dyes. Because its wavelength is strictly under 500nm, the filter will completely block it from ruining the final image.
  • UV Light or UV LED (under 400nm): Great for examining forensic evidence, counterfeit money, or specific minerals. The filter easily blocks the harsh UV glare while letting the resulting colorful glow pass through to the camera.

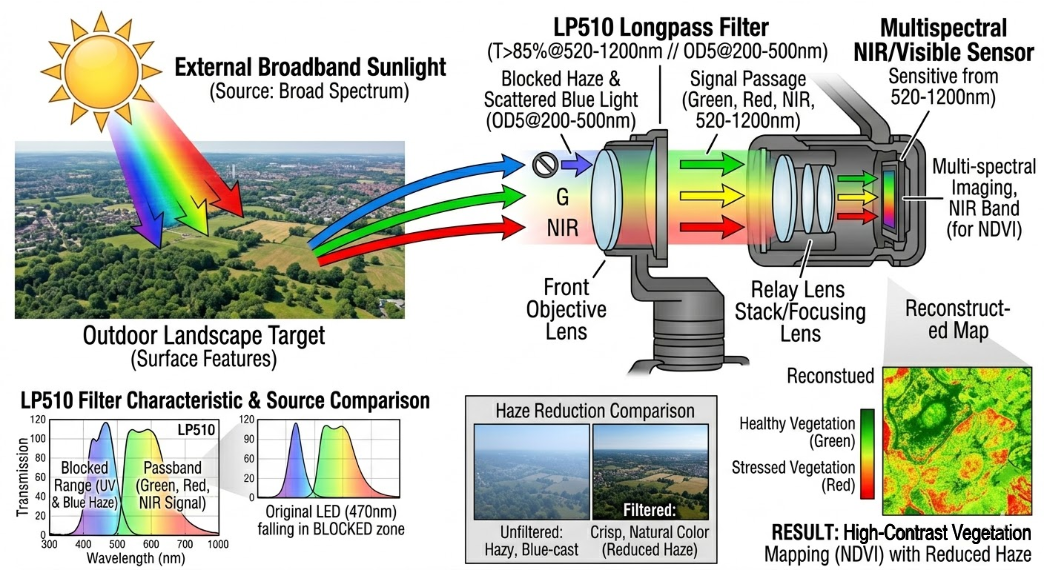

LP510 Longpass Filter - Outdoor Photography and Drone Mapping

LP510 Longpass Filter - Outdoor Photography and Drone Mapping

Outdoor Photography and Drone Mapping

In the earth's atmosphere, blue and UV light scatter everywhere, creating a visual "haze" or fogginess over long distances. This filter acts as a "haze-cutter" for specialized photography or aerial drones. By blocking the scattered blue light and letting only the direct green, red, and infrared light through, it creates incredibly sharp, high-contrast images of landscapes.

Recommended light source:

  • Natural Sunlight: Sunlight provides a massive, full spectrum of light. Using the filter outdoors removes the scattered blue sky haze and invisible UV rays, resulting in crisp, detailed photos of the ground.
  • Infrared (IR) Illuminators: For drones or outdoor security cameras working in low light, these invisible lights provide illumination that perfectly passes through the filter's 520-1200nm opening, allowing the camera to see clearly in the dark without being distracted by streetlights.

Similar Bandpass Filters

Product Faqs

Cut-on / cut-off wavelength

Cut-on / cut-off wavelength is the transition point where an edgepass filter starts or stops transmitting light; in a practical system, it defines which wavelength range is allowed through and which range is reduced or blocked.
Blocking region

Blocking region is the wavelength range where the filter is designed to suppress unwanted light; in a practical system, stronger or wider blocking helps reduce background signal, stray light, and detector interference.
Optical Density (OD)

Blocking depth / optical density (OD) describes how strongly unwanted light is suppressed in the blocking region; for example, OD6 @ 200–1200nm means the filter is designed to block wavelengths from 200–1200nm to about 0.0001% transmission, helping reduce stray light, background signal, and detector overload.
Angle of incidence (AOI)

Angle of incidence (AOI) is the angle at which light hits the filter surface; as AOI increases, interference filters can show a spectral shift, usually moving the transmission or transition wavelength toward shorter wavelengths.

Need Help Confirming This Filter?

Whether you are replacing an existing part or building a new system, send us:
- Original part number or target specification
- Required size and quantity
- Application or system goal

We will help check product fit or suggest a stock/custom alternative.
