LP910 Longpass Filter (T>95%@920-2000nm,OD4@200-890nm)
LP910 Longpass Filter (T>95%@920-2000nm,OD4@200-890nm)
In Stock.
Ships within 5 working days of order.
Couldn't load pickup availability

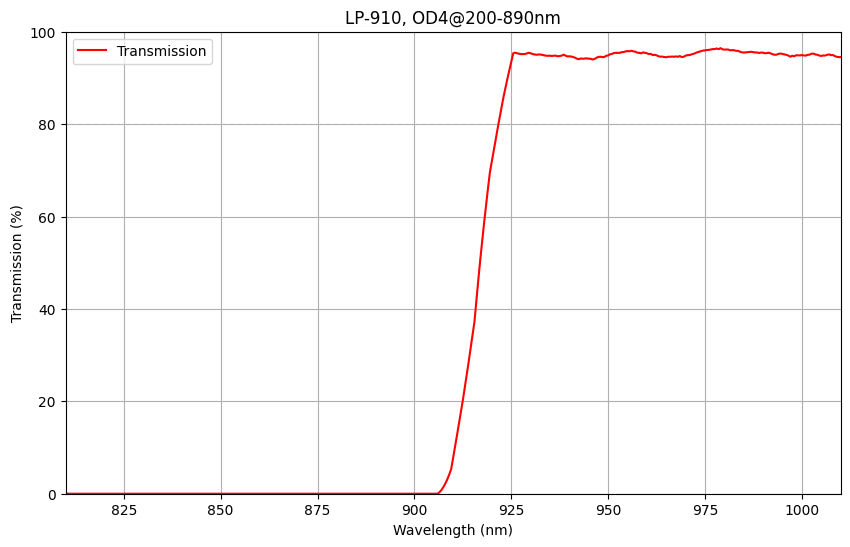

- Wavelength: LP910 longpass filter designed for NIR applications from 920-2000nm
- Spectral Features: Sharp cut-on at 910nm with >95% transmission above 920nm for superior signal clarity
- Optical Density: OD4 blocking from 200-890nm ensures deep rejection of unwanted wavelengths
- Filter Dimension Availability: Multiple sizes available – contact us for custom dimensions and mounting options
Request Raw Data
Request Raw Data
You can request the raw transmission data from us.
Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
Shipment & Delivery
Shipment & Delivery
- Stocked products ship within 5 business days after order confirmation.
- Custom-made products typically ship within 4–8 weeks.
- Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
- Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
- Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
- General international parcel shipping cost: USD 35 (for reference).
Return & Refund
Return & Refund
1. Eligible Products
Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.
Custom-made or non-stock items are not eligible for no-reason returns.
2. No-Reason Return (Buyer’s Remorse)
If you wish to return an item for reasons other than product defect or seller error:
- Please email shop@syronoptics.com to request a return authorization and return address.
- Buyer is responsible for all return shipping costs.
- Items must be unused, in original condition, and with original packaging.
- Refund will be issued after inspection of the returned item.
3. Seller’s Fault (Defective / Wrong / Damaged Item)
If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):
Please provide clear evidence (photos or videos) showing the issue.
We will evaluate the case and either:
- Provide a replacement, or
Issue a refund (with or without requiring the item to be returned). - Return shipping cost will be covered by the seller in confirmed seller-fault cases.
4. Important Notes
- Returned items are subject to inspection before refund approval.
- Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
- Unauthorized returns will not be accepted.
Payment Terms
Payment Terms
Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.
If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.
If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.
All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.
Custom Sizing
Custom Sizing
Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.
Pricing is not significantly lower for small-size orders in low quantities due to operational costs.
SKU:
View full details
| Specifications | |
|---|---|
Cut-On Wavelength |
910nm
|
Optical Density |
OD4
|
Part Number |
SO3040236
|
-

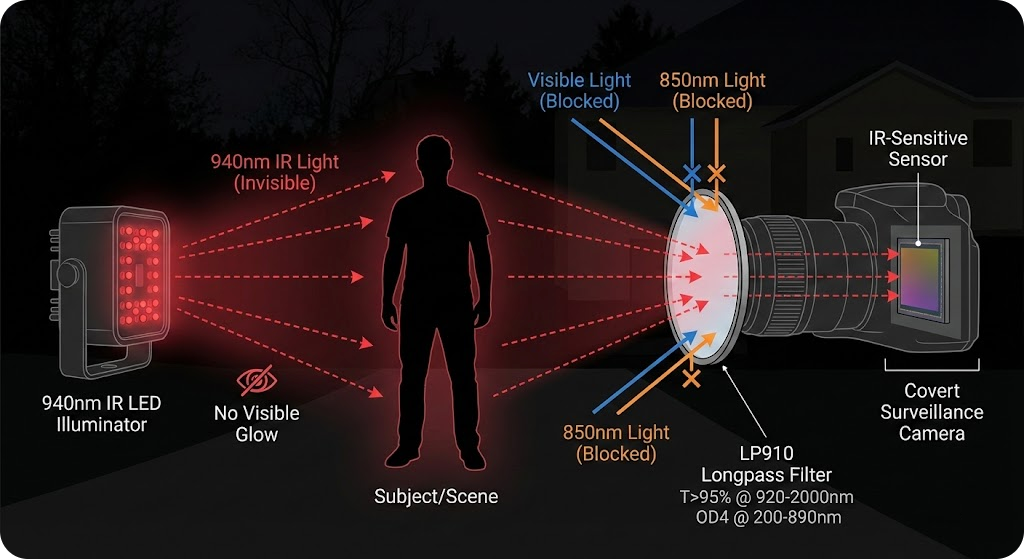

LP910 Longpass Filter - Covert Surveillance & Night Vision
Covert Surveillance & Night Vision
This is one of the most common applications for a 910nm cut-on filter.
Standard night vision often uses 850nm illumination, which produces a faint but visible red glow ("red tail") at the source. For covert operations where the camera must remain completely undetectable, 940nm illumination is used because it is invisible to the human eye. The LP910 filter is placed over the sensor to block visible light and any stray signal from 850nm sources, ensuring the camera only sees the "invisible" 940nm light.
Recommended Light Source
- 940nm LEDs: These are the standard illuminators for covert security cameras.
- 980nm Laser Diodes: Used for longer-range illumination.
-

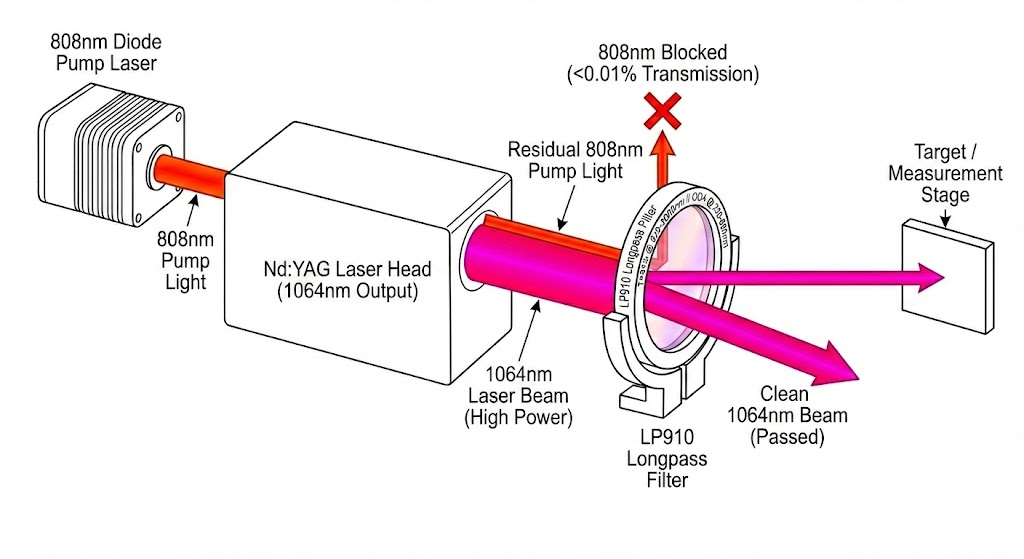

LP910 Longpass Filter - Nd:YAG Laser System "Cleanup"
Nd:YAG Laser System "Cleanup"
- The Application: Nd:YAG lasers emit at 1064nm but are often pumped by diode lasers operating at 808nm. In optical systems using these lasers, it is critical to block the remaining 808nm pump light to prevent it from interfering with the measurement or heating the target, while allowing the 1064nm beam to pass with high efficiency.
Recommended Light Source:Nd
- YAG Laser (1064nm): The filter transmits the main beam (>95%).
- Fiber Lasers (1030–1070nm): Common in industrial cutting and marking.
