T>90%@380-1100nm+R>99%@300-360nm Longpass Dichroic Mirror(LPDM)

Deep UV-Blocking Dichroic Mirror for Full Spectrum Applications

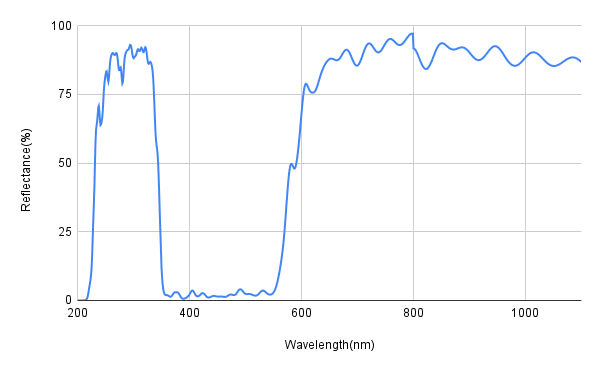

This premium dichroic mirror delivers outstanding T>90% transmission from 380-1100 nm and R>99% reflection at 300-360 nm, providing exceptional deep UV protection while maintaining superior transmission across the entire visible and near-infrared spectrum.

Key Features:

• Full Spectrum Transmission: Greater than 90% transmission from 380-1100 nm (UV-A to near-IR)
• Deep UV Blocking: Greater than 99% reflection in the deep UV range (300-360 nm)
• Complete Visible Coverage: Excellent transmission across violet, blue, green, red wavelengths
• Near-IR Performance: Maintains high transmission into the near-infrared region
• Advanced Coating Technology: Precision-engineered multi-layer dielectric coating

Applications:

• UV-sensitive CCD and CMOS imaging systems
• Solar cell testing and characterization
• Full-spectrum laser systems and beam conditioning
• Photovoltaic research and development
• Optical systems requiring deep UV exclusion
• Broadband spectroscopy with UV protection

Perfect for demanding applications where you need complete visible and near-infrared transmission while blocking harmful deep UV radiation. This mirror ensures optimal performance and protection for your most sensitive optical components across the broadest possible wavelength range.
