Clear Optical Path USAF Target (Hollow Pattern)

Clear Optical Path USAF Target (Hollow Pattern)

Regular price $288.00 USD
Regular price Sale price $288.00 USD
Sale Sold out
Shipping calculated at checkout.
Resolution
Size
Product Number
  • Determine Resolution for X-Ray, UV, Thermal, and Far-IR Imaging Systems
  • Easy Mounting
  • Ideal for Transmittance Applications

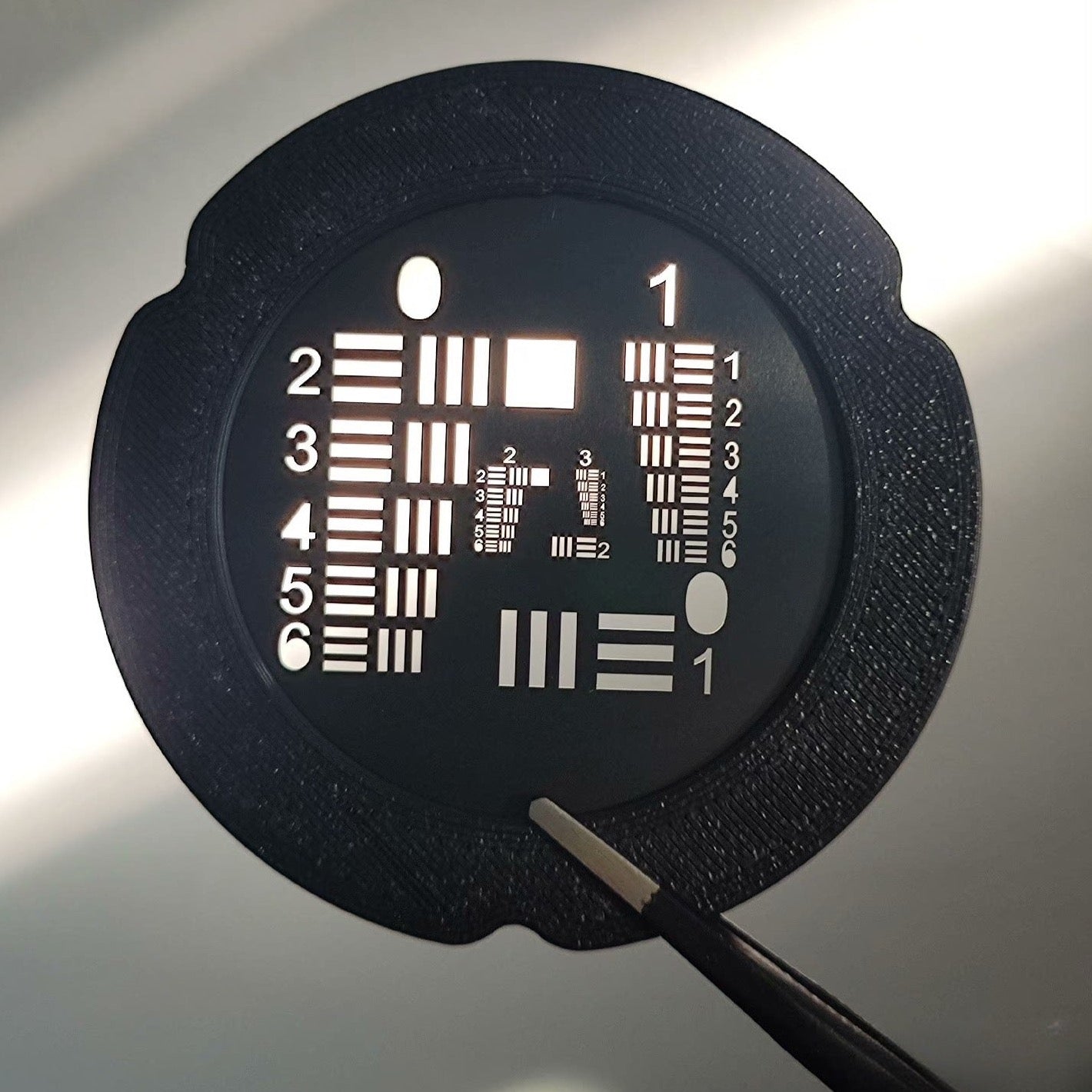

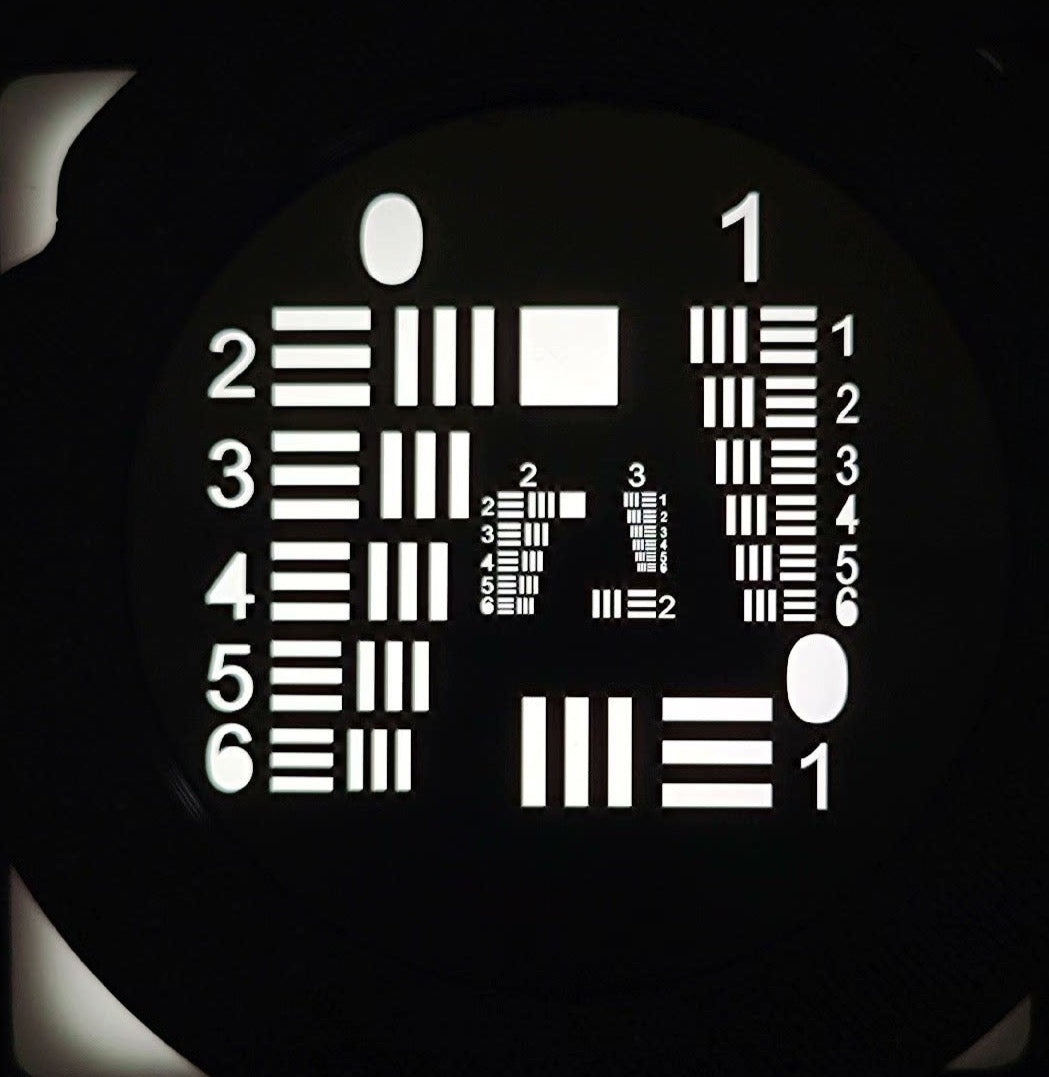

Notice: The pattern area on the target is hollow. Light can go through the hole without attenuation.

For other pattern and size please contact us for customization.

View full details
  • How to read a USAF resolution chart

    • Element Number: This identifies the specific pattern of lines within a group.
    • Group Number: This identifies the group that the element belongs to.

    To read a USAF 1951 target chart, you would start by photographing the chart through the lens that you are testing. Then,you would examine the photograph to see which is the smallest element where the individual lines are still distinguishable. The higher the element number that can be resolved, the higher the resolving power of the lens.

  • How to read a USAF resolution chart

    The table shows the number of lines per millimeter (lp/mm) for each element within a group.

    Here’s how to use it to determine the resolution of your lens:

    1. Take a picture of the USAF 1951 target chart through the lens you are testing. Make sure the image is in focus and properly lit.
    2. Examine the photograph to find the smallest element where the individual lines are still distinguishable. This is the element that corresponds to the resolving power of your lens.
    3. Locate the group number and element number of the smallest resolved element in the table. The corresponding value in the table is the number of lines per millimeter (lpm) that your lens can resolve.

    For example, if the smallest element you can resolve is element number 3 in group 4, then the table shows that your lens can resolve 11.31 lines per millimeter.
