BP10000-370 10000nm Bandpass Filter | OD2 LWIR Optical Filter

BP10000-370 (10000nm CWL, OD2@400-16000nm, FWHM=370nm) Bandpass Filter

10000nm \ 370nm \ OD2@400-16000nm / T＞80% / 3.3×3.3mm

$10.00

BP10000-370 (10000nm CWL, OD2@400-16000nm, FWHM=370nm) Bandpass Filter

SO3020184

SO3020184-3.3×3.3

In stock

$10.00

Yes. Listed filters are generally available from stock, but final availability may depend on size and quantity.

Most filters are kept as medium-sized coated pieces
Final size is usually diced before shipment
Preparation time may vary for urgent orders, custom sizes, or larger quantities

We can usually cut optical filters to custom outer sizes, depending on available coated material.

Custom size

Typical custom size range: 3 × 3mm to 60 × 60mm
Custom sizing changes the outer dimension only
Thickness normally follows the original filter specification
Final feasibility depends on coated material size and cutting requirements

Mounting

Standard mounting options are
dia12.5mm (mounted) - OD = dia12.5mm,Thickness=3.5mm,No Thread
dia25mm (mounted) - OD = dia25mm,Thickness=3.5mm,No Thread
Mounted options can include non-threaded or threaded mounts
Custom mounting may be possible depending on quantity and mechanical requirements

Note

Please send the required size, quantity, mounting type, and product link before ordering.

Yes. You may request the transmission curve or related spectral data for engineering review.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

We ship optical products to most supported regions, with shipping cost and delivery method confirmed before payment.

Shipping cost

Shipping is generally USD 5–40 per parcel
Orders above USD 300 are eligible for free shipping
Final cost depends on destination, package size, order value, and shipping method
Shipping cost is shown during checkout or confirmed before payment

Shipping coverage

We generally ship to Europe, North America, Asia, the Middle East, and Oceania
Some countries may be unavailable depending on logistics or customs conditions

Delivery time

Most stocked products need 1–5 working days for preparation before shipment
After shipment, delivery time depends on destination and shipping method
Tracking information will be provided when available

Note

If your destination is not available during checkout, please contact us before ordering.

You can order online, request a quotation, or use bank transfer depending on your purchasing process.

Can I request a quotation before ordering?

Yes, formal quotations are available before payment
Recommended for company purchases, larger quantities, custom sizes, or special shipping requirements
Please send the product link, quantity, destination country, and billing details if available

What online payment methods are available?

Credit card
Apple Pay
Google Pay

Do you support bank transfer?

Yes, bank transfer is available
We support multi-currency payment through local banking where available
Local receiving accounts may include US, UK, Germany, Singapore, and Hong Kong bank accounts
For payment in Chinese RMB inside Mainland China, please contact our local partner
VAT fapiao may be supported for eligible Mainland China transactions

Do you support company purchase orders?

Company purchase orders may be supported after confirmation
Please contact us before ordering if your organization requires PO processing, quotation, or invoice matching

Are NET payment terms available? (Pay after received)

NET 7 or NET 30 terms may be available for eligible organizations
Approval depends on company type, order value, payment history, and internal review
Please contact us before ordering if you need NET payment terms

mport duties, taxes, and customs handling depend on your destination country and shipping method.

Are duties and taxes included?

For express courier services such as DHL or FedEx, duties, taxes, and customs handling are usually paid by the buyer
The final import cost depends on destination country, declared value, and local customs rules
Duties and taxes are not included unless clearly confirmed before payment

Can SyronOptics help with import clearance?

Import-handled delivery may be available for selected regions
Supported regions may include USA, Canada, United Kingdom,Europe, Mainland China, Hong Kong, Singapore, Australia, and New Zealand
With import-handled delivery, we help arrange clearance and local delivery
This option may be slower than express courier

Note

If you are not sure, please contact us to confirm whether import-handled delivery is supported in your region.

Wavelength: 10000nm center wavelength (CWL) for long-wave infrared applications
Spectral Features: FWHM = 370nm bandwidth for precise spectral isolation
Optical Density: OD2 blocking from 400-16000nm for superior out-of-band rejection
Filter Dimension Availability: Custom sizes available for research and industrial imaging systems

Specifications for product BP10000-370 (10000nm CWL, OD2@400-16000nm, FWHM=370nm) Bandpass Filter
Optical Specification
Center Wavelength (CWL)	10000nm
FWHM	370nm
Blocking Region	OD2@400-16000nm
Peak Transmission (%)	80
Part Number
PN	SO3020184

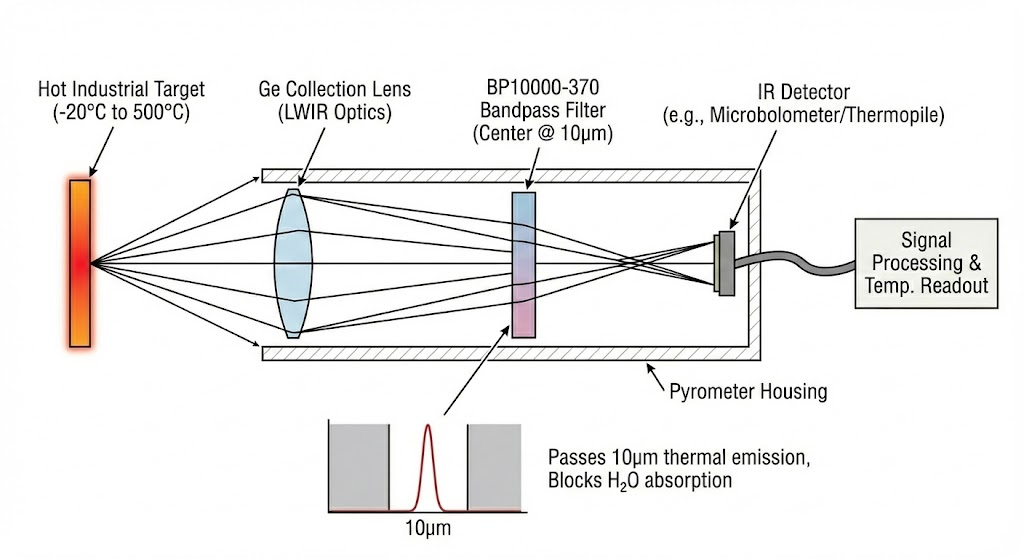

BP10000-370 Bandpass Filter - Industrial Pyrometry & Thermography

Industrial Pyrometry & Thermography

Context: Used in non-contact temperature measurement sensors (pyrometers) for industrial furnaces, power equipment, or glass manufacturing.
Function: The 10 µm wavelength is ideal for measuring the temperature of objects near room temperature to medium heat (approx. -20°C to 500°C) because the peak thermal emission of these objects shifts into this region. It avoids interference from humidity (water vapor) which absorbs strongly at other LWIR wavelengths.

Recommended Light Sources

Passive Target Radiation (Blackbody Emission): In this application, there is no external active light source; the target object itself acts as the source by emitting thermal radiation. The advantage is that this passive emission allows for non-contact measurement, while the specific 10 µm wavelength aligns with the peak emission of low-to-medium heat targets (-20°C to 500°C) and avoids signal attenuation from atmospheric humidity.

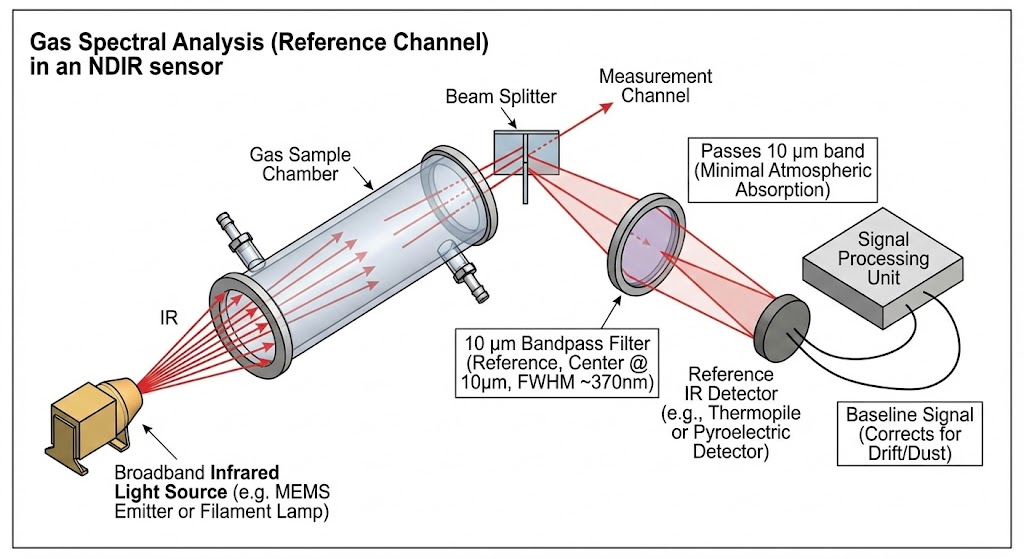

BP10000-370 Bandpass Filter - Gas Spectral Analysis (Reference Channel)

Gas Spectral Analysis (Reference Channel)

Context: Used in NDIR (Non-Dispersive Infrared) gas sensors.
Function: While many gases (like CO₂ at 4.26 µm) have absorption peaks elsewhere, the 10 µm region is often used as a Reference Channel. This band is relatively free of atmospheric absorption, allowing the system to establish a baseline signal intensity to compare against the absorption channel, correcting for light source drift or dust.

Recommended Light Sources

Broadband IR Emitter (e.g., SiC Globar or MEMS): It provides continuous spectral output that covers both the target gas absorption wavelengths (e.g., 4.26 µm for CO₂) and the 10 µm reference band, ensuring that any fluctuation in source intensity affects both channels equally, which is essential for accurate differential measurement and drift compensation.

Product Faqs

Yes. Send us your wavelength, size, optical setup, and application. We can help check whether this product is suitable or suggest an alternative.

Yes. Transmission curves, drawings, or additional specifications may be available on request depending on the product.

Some products can be customized by size, mounting, wavelength, coating, or package. Custom availability depends on the product type and project requirements.

Contact us with your target specification. We can check stocked alternatives or advise whether a custom option is possible.

Still not sure if this product fits?

Send us your wavelength, size, quantity, application, and any drawing or specification you have. We can help check whether this product is suitable or suggest a stock or custom alternative.
