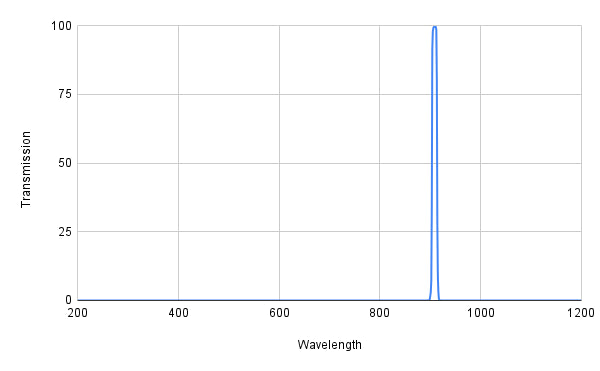

Spectral transmission curve with a peak at around 1000 nm on a graph.
  • Spectral transmission curve with a peak at around 1000 nm on a graph.
  • Black bandpass filter with specifications on a white background
BP910-10 Bandpass Filter(CWL=910nm,FWHM=10nm)

BP910-10 Bandpass Filter(CWL=910nm,FWHM=10nm)

SO3010696

Center Wavelength (CWL) // FWHM
Center Wavelength (CWL) // FWHM
CWL=910nm // FWHM=10nm
Optical Density // Peak Transmission (Tpk)
Optical Density // Peak Transmission (Tpk)
OD5@200-1100nm // T＞90%
SO3010696-d12.5mt
In stock
$60.00
$60.00
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa
Stock Availability

Yes. Listed filters are generally available from stock, but final availability may depend on size and quantity.

  • Most filters are kept as medium-sized coated pieces
  • Final size is usually diced before shipment
  • Preparation time may vary for urgent orders, custom sizes, or larger quantities
Custom Size & Mounting

We can usually cut optical filters to custom outer sizes, depending on available coated material.

Custom size
  • Typical custom size range: 3 × 3mm to 60 × 60mm
  • Custom sizing changes the outer dimension only
  • Thickness normally follows the original filter specification
  • Final feasibility depends on coated material size and cutting requirements
Mounting
  • Standard mounting options are
    dia12.5mm (mounted) - OD = dia12.5mm,Thickness=3.5mm,No Thread
    dia25mm (mounted) - OD = dia25mm,Thickness=3.5mm,No Thread
  • Mounted options can include non-threaded or threaded mounts
  • Custom mounting may be possible depending on quantity and mechanical requirements
Note
  • Please send the required size, quantity, mounting type, and product link before ordering.
Request Raw Data

Yes. You may request the transmission curve or related spectral data for engineering review.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
Shipment & Delivery

We ship optical products to most supported regions, with shipping cost and delivery method confirmed before payment.

Shipping cost
  • Shipping is generally USD 5–40 per parcel
  • Orders above USD 300 are eligible for free shipping
  • Final cost depends on destination, package size, order value, and shipping method
  • Shipping cost is shown during checkout or confirmed before payment
Shipping coverage
  • We generally ship to Europe, North America, Asia, the Middle East, and Oceania
  • Some countries may be unavailable depending on logistics or customs conditions
Delivery time
  • Most stocked products need 1–5 working days for preparation before shipment
  • After shipment, delivery time depends on destination and shipping method
  • Tracking information will be provided when available
Note
  • If your destination is not available during checkout, please contact us before ordering.
Payment & Quotation

You can order online, request a quotation, or use bank transfer depending on your purchasing process.

Can I request a quotation before ordering?
  • Yes, formal quotations are available before payment
  • Recommended for company purchases, larger quantities, custom sizes, or special shipping requirements
  • Please send the product link, quantity, destination country, and billing details if available
What online payment methods are available?
  • Credit card
  • Apple Pay
  • Google Pay
Do you support bank transfer?
  • Yes, bank transfer is available
  • We support multi-currency payment through local banking where available
  • Local receiving accounts may include US, UK, Germany, Singapore, and Hong Kong bank accounts
  • For payment in Chinese RMB inside Mainland China, please contact our local partner
  • VAT fapiao may be supported for eligible Mainland China transactions
Do you support company purchase orders?
  • Company purchase orders may be supported after confirmation
  • Please contact us before ordering if your organization requires PO processing, quotation, or invoice matching
Are NET payment terms available? (Pay after received)
  • NET 7 or NET 30 terms may be available for eligible organizations
  • Approval depends on company type, order value, payment history, and internal review
  • Please contact us before ordering if you need NET payment terms
Import, Duties & Customs

mport duties, taxes, and customs handling depend on your destination country and shipping method.

Are duties and taxes included?
  • For express courier services such as DHL or FedEx, duties, taxes, and customs handling are usually paid by the buyer
  • The final import cost depends on destination country, declared value, and local customs rules
  • Duties and taxes are not included unless clearly confirmed before payment
Can SyronOptics help with import clearance?
  • Import-handled delivery may be available for selected regions
  • Supported regions may include USA, Canada, United Kingdom,Europe, Mainland China, Hong Kong, Singapore, Australia, and New Zealand
  • With import-handled delivery, we help arrange clearance and local delivery
  • This option may be slower than express courier
Note
  • If you are not sure, please contact us to confirm whether import-handled delivery is supported in your region.

This BP910-10 Bandpass Filter is designed to transmit a narrow band around 910 nm while reducing out-of-band light. It is suitable for NIR sensing, machine vision, and laser diode systems systems using NIR LED, VCSEL, or laser diode illumination. It helps isolate the target signal, reduce background light, and improve contrast.

Key specifications:

  • Wavelength / main spec: 910 nm center wavelength (CWL)
  • Bandwidth / transition spec: 10 nm FWHM
  • Transmission / blocking: T >90%; OD5 blocking from 200-1100 nm
  • Format / custom option: Available in Dia 12.5mm to dia 25mm (mounted/unmounted); Custom sizes and mounting options available on request

Spectral Data & AOI Review

Filter curves can shift when the filter is used at an angle.

SyronOptics can review spectral data and selected AOI examples to help check whether a filter fits the actual optical path.

LIDT Reference (1064nm)

Selected 1064nm laser damage test data is available for reference when reviewing similar laser-related filter designs.

Final suitability depends on the actual laser condition, coating design, beam size, and system setup.

Custom Size Cutting

Coated filter plates can often be cut into smaller formats for custom optical assemblies.

For narrow bandpass filters, usable area and size may depend on coating uniformity across the larger piece.

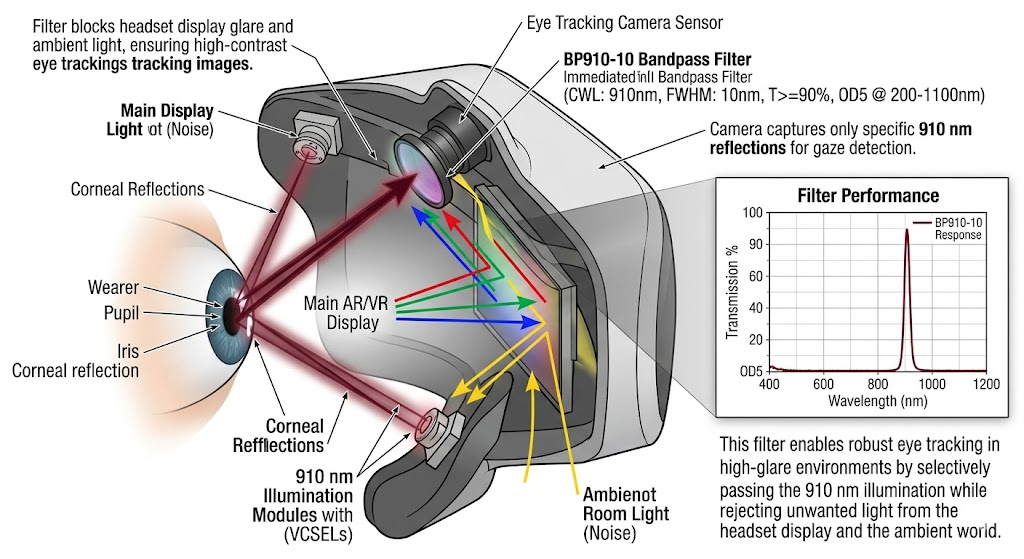

BP910-10 Bandpass Filter - Eye Tracking in AR/VR Headsets

BP910-10 Bandpass Filter - Eye Tracking in AR/VR Headsets

Eye Tracking in AR/VR Headsets

Virtual reality and augmented reality headsets need to know exactly where you are looking to render graphics properly and let you interact with virtual menus. They do this by shining invisible light onto your eyes and tracking the tiny reflections. This filter is placed over the internal tracking camera to block out the bright, flashing colors from the headset's own display screen, as well as any sunlight leaking into the room. By only letting the pure 910nm tracking light pass through, it guarantees the headset never loses track of your gaze, no matter how bright the virtual environment gets.

Recommended light source:

  • 910 nm VCSEL: These lasers are incredibly tiny and use very little power, making them perfect for fitting inside a compact headset without draining the battery or generating excess heat.
  • 910 nm Micro-LED: This provides a soft, safe, and even glow across the eye. It prevents any harsh glare or hot spots, ensuring the user remains comfortable during long periods of wear.

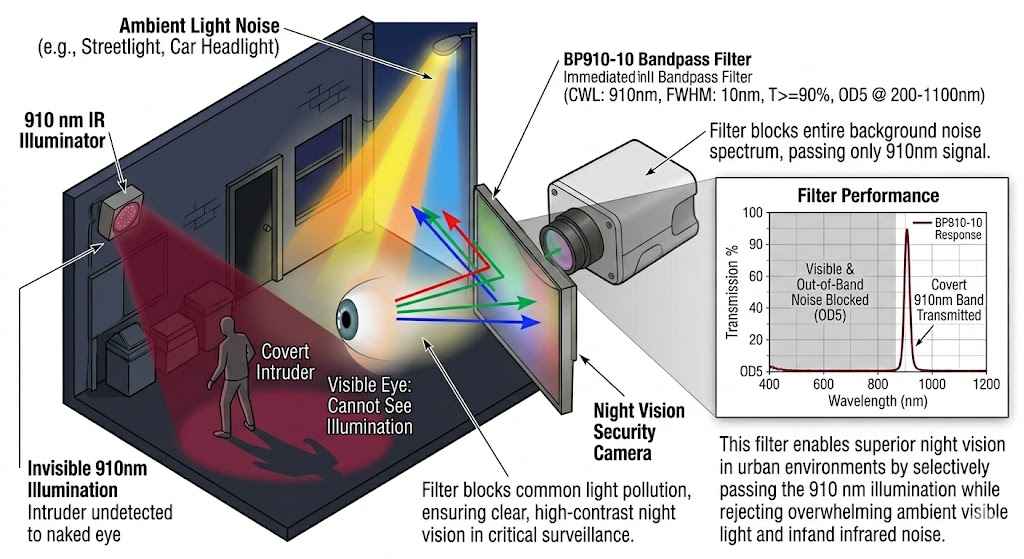

BP910-10 Bandpass Filter - Covert Security and Night Vision

BP910-10 Bandpass Filter - Covert Security and Night Vision

Covert Security and Night Vision

Security cameras use this to see clearly in pitch-black conditions without tipping off intruders. The monitored area is flooded with invisible infrared light. The extreme blocking feature of this filter stops ambient streetlights, car headlights, or daytime sun from washing out the camera sensor. Meanwhile, the narrow 10nm opening ensures only the pure, invisible security light reaches the camera lens to create a crisp image.

Recommended light source:

  • 910 nm Infrared LED: Unlike older 850 nm security LEDs that emit a faint, tell-tale red glow, 910 nm light is completely invisible to the human eye. This gives the camera true stealth capabilities while still lighting up the area brightly for the sensor.
  • 910 nm Laser Illuminator: Used for long-range, military, or border patrol night vision. It can throw a focused beam of invisible light over vast distances, and the filter ensures the camera only picks up this specific beam instead of random background light.

Similar 910nm Bandpass Filters

Product FAQs

What is the difference between unmounted, mounted, and threaded filter options?

For size options, unmounted and mounted filters use different size references.

Unmounted filters
  • Listed size refers to the actual filter size
  • Example: 12.5mm unmounted means the bare filter is 12.5mm in diameter
Mounted filters
  • Listed size usually refers to the outside size of the mount
  • The filter inside is typically smaller than the mount
  • Example: 12.5mm mounted means the mount outside is 12.5mm, while the filter inside is slightly smaller
  • The inside filter is usually about 1–1.5mm smaller than the mounted outer diameter
Mount type
  • Mounted does not automatically mean threaded
  • If only labeled as mounted, it usually means a smooth, non-threaded mount
  • Threaded mounts should specify a thread standard, such as M25.5 × 0.5mm or SM1
Note
  • If your system has strict requirements for outer diameter, clear aperture, thickness, or thread standard, please confirm before ordering.

How thick is the optical filter?

Filter thickness depends on whether the filter is supplied unmounted or mounted.

Unmounted filters
  • Usually 0.5mm–2mm
  • Common thicknesses: 0.5mm, 1.1mm, 1.5mm
  • Other cases may range from about 0.3mm–3mm
  • Thickness may vary by substrate, coating design, or customer requirement
Mounted filters
  • Total outside thickness depends on the mount structure
  • Non-threaded mount: usually around 3.5mm or 6mm
  • Metric threaded mount: usually around 6.5mm–7.5mm
Note
  • If your system has a strict thickness limit, please confirm the required thickness before ordering.

How is the filter fixed inside the mount?

The fixing method depends on whether the mount is threaded or non-threaded.

Non-threaded mounts
  • Filter is usually fixed with adhesive
  • The filter is secured inside the mount after assembly
  • The filter is generally not removable after mounting
Threaded mounts
  • Filter is usually held with a retaining ring
  • Adhesive is usually not required
  • The filter can usually be removed or replaced later
Note
  • If you need the filter to be removable, please request a threaded mount with retaining ring before ordering.

Can this filter be used at a non-normal angle of incidence?

Yes, but the spectrum may shift when the filter is used away from normal incidence.

Narrow bandpass filters
  • Around 10nm FWHM: small angles such as 0–5° usually have limited effect
  • At 10–15°, wavelength shift may become noticeable
  • Tight spectral systems should check AOI carefully before ordering
Wide bandpass filters
  • Around 50–100nm FWHM: usually more tolerant of angle shift
  • Around 15–20° may still be acceptable in some systems
  • Final suitability depends on the required passband and blocking range
Note
  • Non-normal incidence may also introduce polarization-related effects
  • If your system uses larger AOI, polarized light, or tight wavelength tolerance, please confirm before ordering.

Can you test the filter at different angles of incidence?

Yes. We can provide AOI (angle-of-incidence) testing at selected angles.

AOI testing options
  • Common test angles: 5°, 10°, 15°, 20°, 30°
  • Used to review wavelength shift under non-normal incidence
  • Suitable for laser, imaging, or angle-sensitive optical systems
Cost
  • USD 35 per angle
  • Minimum: 2 angles per request
Note
  • AOI testing can be requested before placing an order
  • This allows you to review measured performance before confirming system compatibility

What if I am not sure which filter fits my system?

If you are not sure, testing a sample in your own system is often the best way to confirm fit.

Sample testing
  • Available for eligible company, laboratory, university, or research-group customers
  • Usually applies to products or orders below USD 150
  • You may test first and pay only if the filter works for your system
Return after testing
  • If the filter is not suitable, you may return it after testing
  • Return approval depends on product condition and review
  • Custom, modified, damaged, or contaminated products may not be eligible
Note
  • Please contact us before ordering if you want to check whether sample testing is available.

Need Help Confirming This Filter?

Whether you are replacing an existing part or building a new system, send us:

- Original part number or target specification
- Required size and quantity
- Application or system goal

We will help check product fit or suggest a stock/custom alternative.
