DEEP RED Channel Filter Set - Ex:BP620/60nm, Em:BP700/75nm, Dm:LPDM660

Ex:BP620/60nm;Em:BP700/75nm;Dm:LPDM660 / None

$210.00

DEEP RED Channel Filter Set - Ex:BP620/60nm, Em:BP700/75nm, Dm:LPDM660

SO3140021

Filter Set

Ex:BP620/60nm;Em:BP700/75nm;Dm:LPDM660

Filter Cubes

In stock

$210.00

We ship optical products internationally. Shipping cost and available courier options are confirmed before payment based on destination, package size, order value, and delivery requirements.

Where do you ship?

How is the shipping cost confirmed?

Can you support urgent delivery?

Will I receive tracking information?

Import, Duties & Customs
Import duties, taxes, and customs requirements depend on the destination country. We can help provide shipping documents and discuss import support options before shipment.

Are duties and taxes included?

Can SyronOptics help with import clearance?

What documents can you provide for customs?

You can order online when available, or contact us for a formal quotation, invoice, or company purchasing requirement.

Can I request a quotation before ordering?

Do you support company purchase orders?

Can I request an invoice?

Are NET payment terms available?

Can I request a transmission curve or drawing?

Can you confirm if this product fits my optical system?

What information should I send before ordering?

Filter Specifications:

Excitation Filter (Ex): Bandpass 620/60 nm
Emission Filter (Em): Bandpass 700/75 nm
Dichroic Mirror (DM): LPDM660

DEEPRED filter set compatible with Cy5

Excitation Wavelength:647nm

Emission Wavelength:665nm

DEEPRED filter set Compatiblew with Alexa Fluor 647

Excitation Wavelength:650nm

Emission Wavelength:671nm

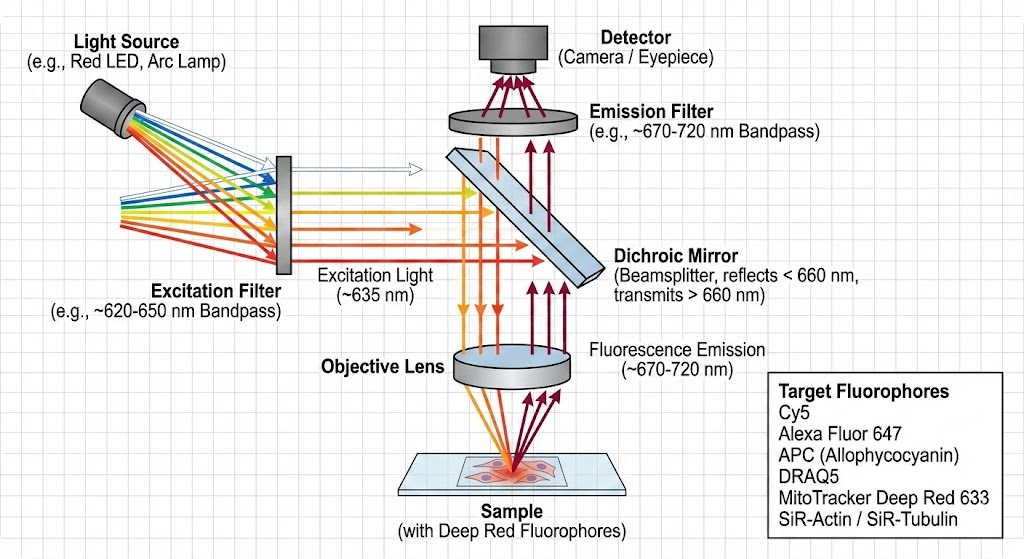

DEEP RED Filter Set for Cy5 - Fluorescence Microscopy

This filter set is primarily used for Fluorescence Microscopy in biological research.

A. Target Fluorophores
You are not limited to Cy5. This set is compatible with a wide range of popular "Far-Red" dyes, including:

Cy5
Alexa Fluor 647 (Often brighter and more photostable than Cy5)
APC (Allophycocyanin)
DRAQ5 (Nuclear stain)
MitoTracker Deep Red 633
SiR-Actin / SiR-Tubulin (Silicon Rhodamine dyes for live-cell imaging)

Recommended Light Sources

High-Power LED (The Modern Standard)

Specification: A Red LED module with a peak around 630–640 nm.

Laser Lines (For Confocal / TIRF)

Specification: 633 nm (Helium-Neon) or 640 nm (Diode).

Broad Spectrum Lamps (Traditional)

Specification: Xenon Arc or Metal Halide lamps.

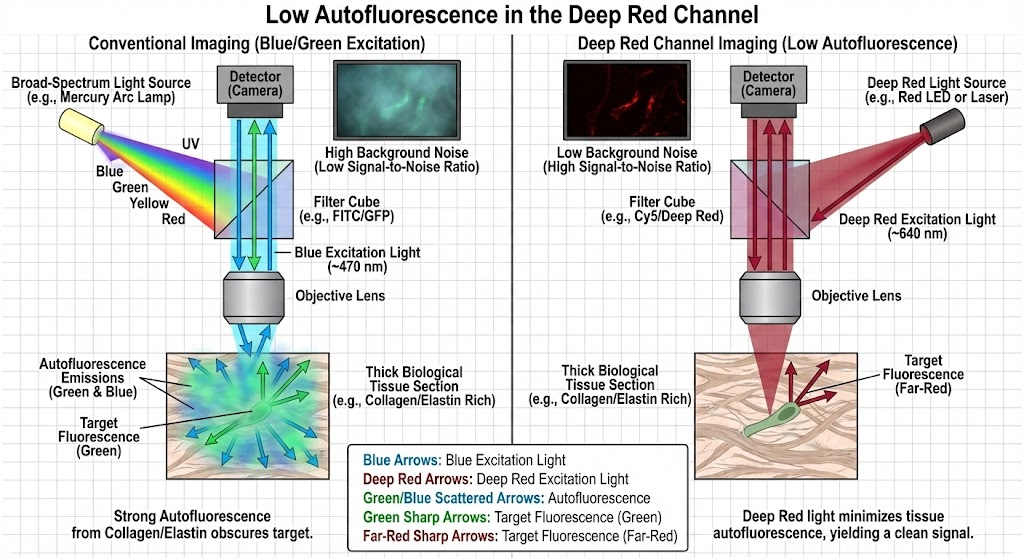

DEEP RED Filter Set for Cy5 - Low Autofluorescence

Low Autofluorescence

Biological tissues (like collagen or elastin) naturally fluoresce in the green and blue spectrum. The Deep Red channel is often the "cleanest" channel with the least background noise, making it ideal for thick tissue sections or samples with high background signal.

Recommended Light Sources

High-Power Red LED (~635 nm): It physically generates zero UV or Blue light. This guarantees that even if your excitation filter has a tiny pinhole or leak, you will not accidentally trigger the massive background noise from the tissue.
Red Laser (633 nm or 640 nm): When paired with a Confocal microscope, this allows you to image deep into the tissue while maintaining that "clean" low-background signal.

Product Faqs

Yes. Send us your wavelength, size, optical setup, and application. We can help check whether this product is suitable or suggest an alternative.

Yes. Transmission curves, drawings, or additional specifications may be available on request depending on the product.

Some products can be customized by size, mounting, wavelength, coating, or package. Custom availability depends on the product type and project requirements.

Contact us with your target specification. We can check stocked alternatives or advise whether a custom option is possible.

Not sure if this filter set fits your microscope or application?

Whether you are replacing an existing filter set or building a new fluorescence channel, send us:
- Microscope model or filter cube type
- Original filter set part number, if available
- Fluorophore / light source / camera or detector
- Required excitation, emission, and dichroic requirements

We will help check whether this filter set is suitable or suggest a stock or custom alternative.
