• Graph of transmission vs wavelength for a bandpass filter with peak at 10000 nm.
1 1

BP10000-370 (10000nm CWL, OD2@400-16000nm, FWHM=370nm) Bandpass Filter

BP10000-370 (10000nm CWL, OD2@400-16000nm, FWHM=370nm) Bandpass Filter

PARTNUMBER:SO3020184

$10.00 USD
$10.00 USD
Sale Sold out
Shipping calculated at checkout.
CWL \ FWHM \ Blocking
Peak Transmission
Size

In Stock.

Ships within 5 working days of order.

Shipment & Delivery

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

Return & Refund

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

Payment Terms

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

  • Wavelength: 10000nm center wavelength (CWL) for long-wave infrared applications
  • Spectral Features: FWHM = 370nm bandwidth for precise spectral isolation
  • Optical Density: OD2 blocking from 400-16000nm for superior out-of-band rejection
  • Filter Dimension Availability: Custom sizes available for research and industrial imaging systems
View full details

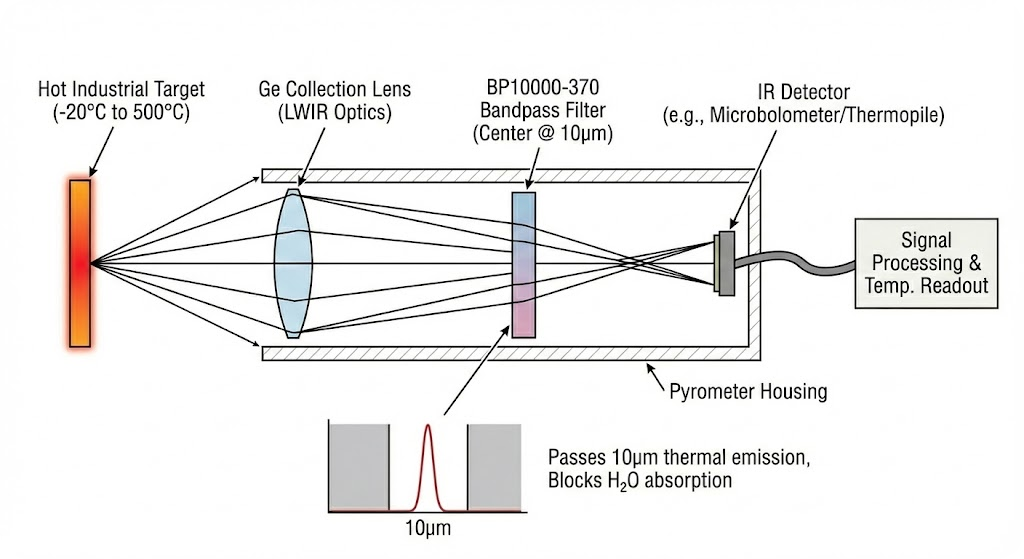

  • BP10000-370 Bandpass Filter - Industrial Pyrometry & Thermography

    BP10000-370 Bandpass Filter - Industrial Pyrometry & Thermography

    Industrial Pyrometry & Thermography

    • Context: Used in non-contact temperature measurement sensors (pyrometers) for industrial furnaces, power equipment, or glass manufacturing.
    • Function: The 10 µm wavelength is ideal for measuring the temperature of objects near room temperature to medium heat (approx. -20°C to 500°C) because the peak thermal emission of these objects shifts into this region. It avoids interference from humidity (water vapor) which absorbs strongly at other LWIR wavelengths.

    Recommended Light Sources

    • Passive Target Radiation (Blackbody Emission): In this application, there is no external active light source; the target object itself acts as the source by emitting thermal radiation. The advantage is that this passive emission allows for non-contact measurement, while the specific 10 µm wavelength aligns with the peak emission of low-to-medium heat targets (-20°C to 500°C) and avoids signal attenuation from atmospheric humidity.

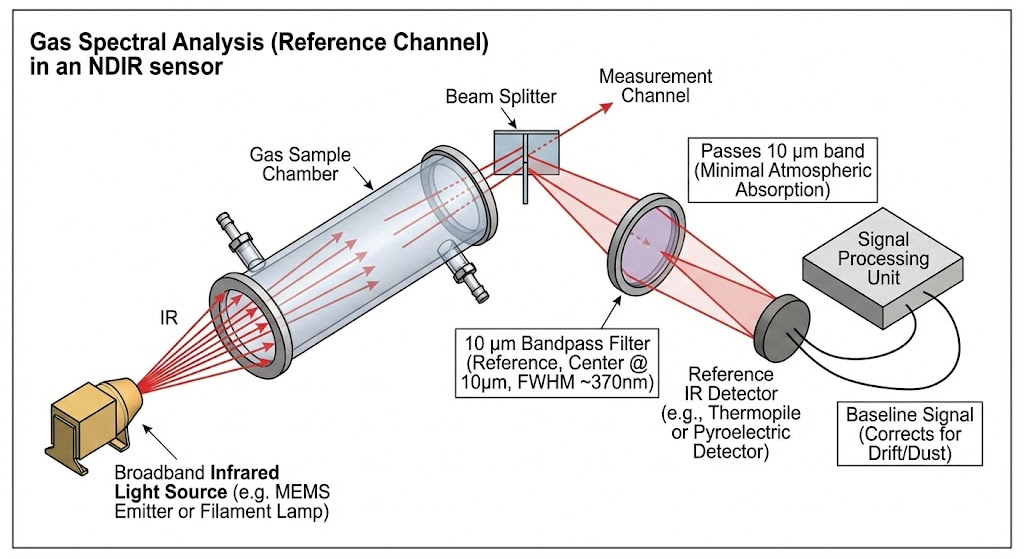

  • BP10000-370 Bandpass Filter - Gas Spectral Analysis (Reference Channel)

    BP10000-370 Bandpass Filter - Gas Spectral Analysis (Reference Channel)

    Gas Spectral Analysis (Reference Channel)

    • Context: Used in NDIR (Non-Dispersive Infrared) gas sensors.
    • Function: While many gases (like CO₂ at 4.26 µm) have absorption peaks elsewhere, the 10 µm region is often used as a Reference Channel. This band is relatively free of atmospheric absorption, allowing the system to establish a baseline signal intensity to compare against the absorption channel, correcting for light source drift or dust.

    Recommended Light Sources

    • Broadband IR Emitter (e.g., SiC Globar or MEMS): It provides continuous spectral output that covers both the target gas absorption wavelengths (e.g., 4.26 µm for CO₂) and the 10 µm reference band, ensuring that any fluctuation in source intensity affects both channels equally, which is essential for accurate differential measurement and drift compensation.
