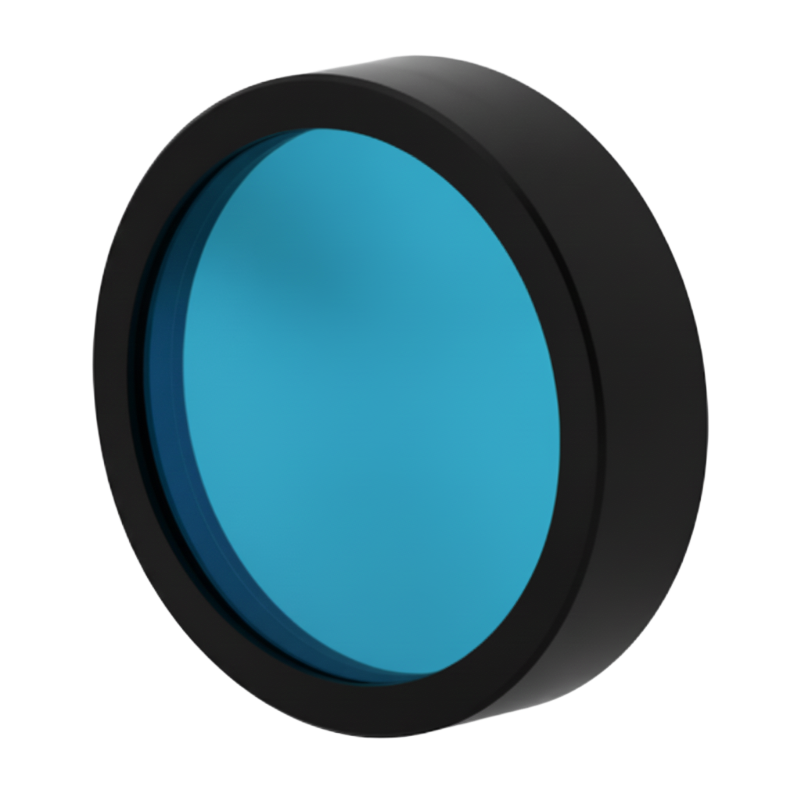

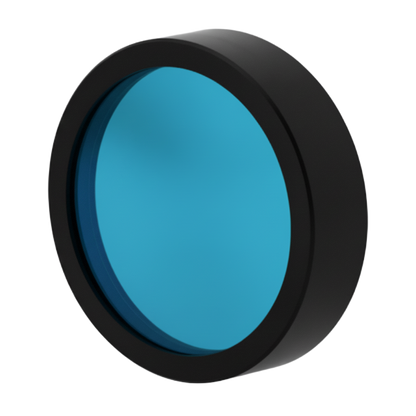

BP460-75 Bandpass Filter(CWL=460nm,FWHM=75nm)

BP460-75 Bandpass Filter - Maximum Blue Light Throughput

The BP460-75 bandpass filter is engineered for applications demanding maximum light collection in the blue spectral region. With a 460nm center wavelength and extra-broad 75nm FWHM bandwidth, this filter delivers exceptional transmission efficiency while maintaining OD2 blocking of unwanted wavelengths, making it the ideal choice for light-limited imaging and high-sensitivity detection systems.

Key Features

• Center Wavelength (CWL): 460nm - optimized for blue light applications
• Extra-Broad Bandwidth: 75nm FWHM for maximum light collection and signal strength
• Optical Density: OD2 blocking ensures effective rejection of out-of-band wavelengths
• Maximum Transmission: Optimized coatings deliver superior throughput across the passband
• Durable Construction: Hard-coated surfaces for long-term reliability and performance

Applications

Perfect for applications requiring broad blue light transmission and maximum signal strength including:

• Fluorescence microscopy with CFP, ECFP, and cyan fluorophores
• Flow cytometry and high-throughput cell analysis
• Blue LED-based illumination and imaging systems
• Color imaging and machine vision applications
• Photometric and colorimetric measurement systems
• Bioluminescence and chemiluminescence detection
• Semiconductor wafer inspection and quality control
• Low-light imaging and astronomical applications

Technical Excellence

The BP460-75's extra-broad 75nm bandwidth represents the optimal balance between spectral selectivity and light collection efficiency. This wide passband captures significantly more photons than narrow-band alternatives, providing superior signal-to-noise ratios in light-limited applications while still maintaining excellent spectral discrimination with OD2 (100:1) blocking performance.

This broad bandwidth design is particularly advantageous when working with LED sources, which typically exhibit broader emission spectra than laser sources. The filter efficiently captures the full spectral output of blue LEDs (typically 440-480nm), maximizing system efficiency and reducing exposure times in imaging applications.

Manufactured using advanced multi-layer thin-film coating technology, the BP460-75 delivers consistent performance across the entire aperture with minimal transmission variation. The hard-coated surfaces ensure durability in demanding laboratory and industrial environments, maintaining optical quality through years of continuous use.

The 75nm bandwidth also provides excellent tolerance for LED wavelength variations due to temperature changes or manufacturing differences, ensuring consistent performance across different light sources and operating conditions.

Whether you're conducting fluorescence imaging with weak signals, developing LED-based optical systems, performing color analysis, or working in low-light conditions, the BP460-75 provides the perfect combination of broad spectral coverage and maximum light throughput. Trust SyronOptics for optical components that deliver professional-grade performance when every photon counts.
