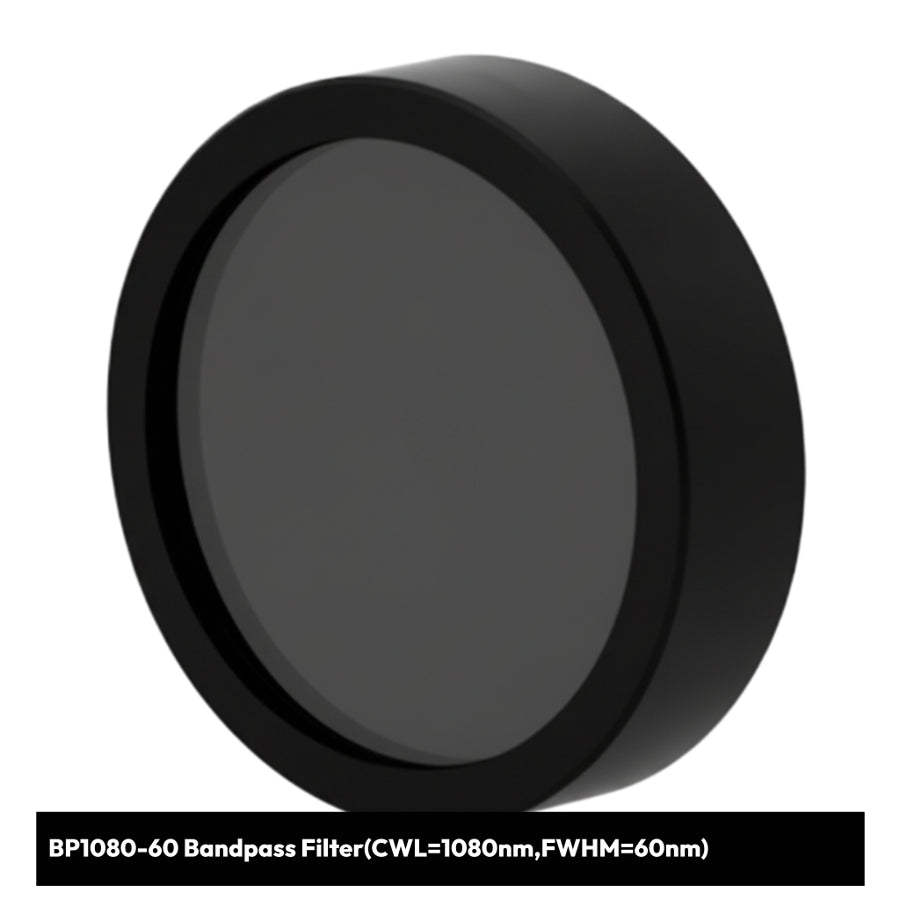

BP1080-60 Bandpass Filter(CWL=1080nm,FWHM=60nm)
BP1080-60 Bandpass Filter(CWL=1080nm,FWHM=60nm)
PN:SO3010039
Couldn't load pickup availability
Balanced Performance Near-Infrared Bandpass Filter
The BP1080-60 Bandpass Filter is precision-engineered for near-infrared applications requiring optimal balance between spectral selectivity and bandwidth tolerance. With its 1080nm center wavelength and moderate 60nm FWHM, this filter delivers excellent performance for biomedical imaging, industrial monitoring, and spectroscopic applications in the critical NIR region.
Key Features:
- NIR Optimized: 1080nm center wavelength for biomedical and industrial applications
- Balanced Bandwidth: 60nm FWHM for optimal spectral performance
- High Transmission: >88% peak transmission in passband
- Superior Blocking: Excellent rejection of visible and far-IR radiation
- Professional Grade: Hard-coated surfaces for demanding environments
- Temperature Stable: Minimal wavelength shift across operating range
Versatile Applications:
- Biomedical imaging and tissue analysis
- Near-infrared spectroscopy (NIRS)
- Industrial process monitoring
- Agricultural and food quality assessment
- Optical coherence tomography (OCT)
- Laser diode characterization
Technical Specifications:
- Center Wavelength (CWL): 1080nm
- Full Width Half Maximum (FWHM): 60nm
- Passband Range: ~1050nm to 1110nm
- Substrate: NIR-optimized optical glass
- Coating: Multi-layer NIR coating
- Surface Quality: 40-20 scratch-dig
- Parallelism: <30 arcseconds
- Clear Aperture: >90% of diameter
Balanced Bandwidth Advantages:
The 60nm bandwidth provides the ideal balance for:
- Good spectral selectivity without overly restrictive bandwidth
- Tolerance to laser wavelength variations and temperature effects
- Compatibility with broadband NIR sources and LED systems
- Optimal performance for both narrow and moderate bandwidth applications
- Reduced sensitivity to manufacturing tolerances
This wavelength region (1080nm) is particularly valuable for biomedical applications as it provides good tissue penetration while maintaining reasonable water absorption characteristics, making it ideal for non-invasive medical imaging and diagnostics.
Perfect for researchers and engineers working with NIR imaging systems, spectroscopic analysis, and biomedical applications where the combination of good spectral selectivity and practical bandwidth tolerance provides optimal system performance. Each filter undergoes comprehensive testing to ensure consistent performance and reliability.
Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to shop@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact shop@syronoptics.com for details.
Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.
Methods
- Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
- Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
- Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.
Price
Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.
Packaging
Packaging
If you need generic packaging, please leave "Generic" in the note when placing order.
In such case:
- No Branding information in Packaging Materials
- All Documentation will be generic
- We will send image of the parcel to you before fulfilling shipment
- You can use your document template for the shipment.
Feel free to contact shop@syronoptics.com for details.
Payment
Payment
Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay
For amount under $200 you can request to make payment within 7days after receiving the order.
SKU:
View full details
Standard Mountings
Camera Mounting List
-
Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
