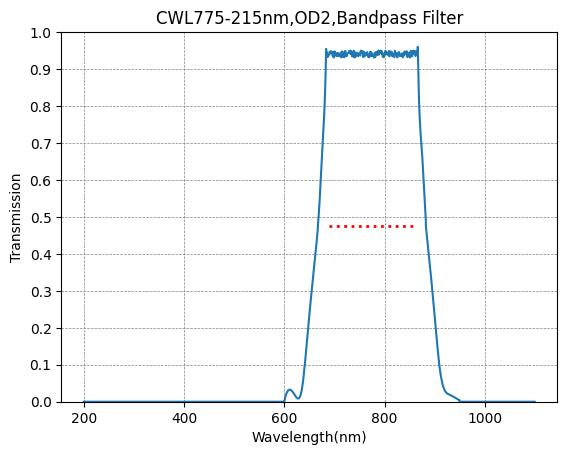

• A graph showing the transmission verses wavelength for a bandpass filter with a central wavelength of 775nm and a bandwidth of 215nm.
1 2

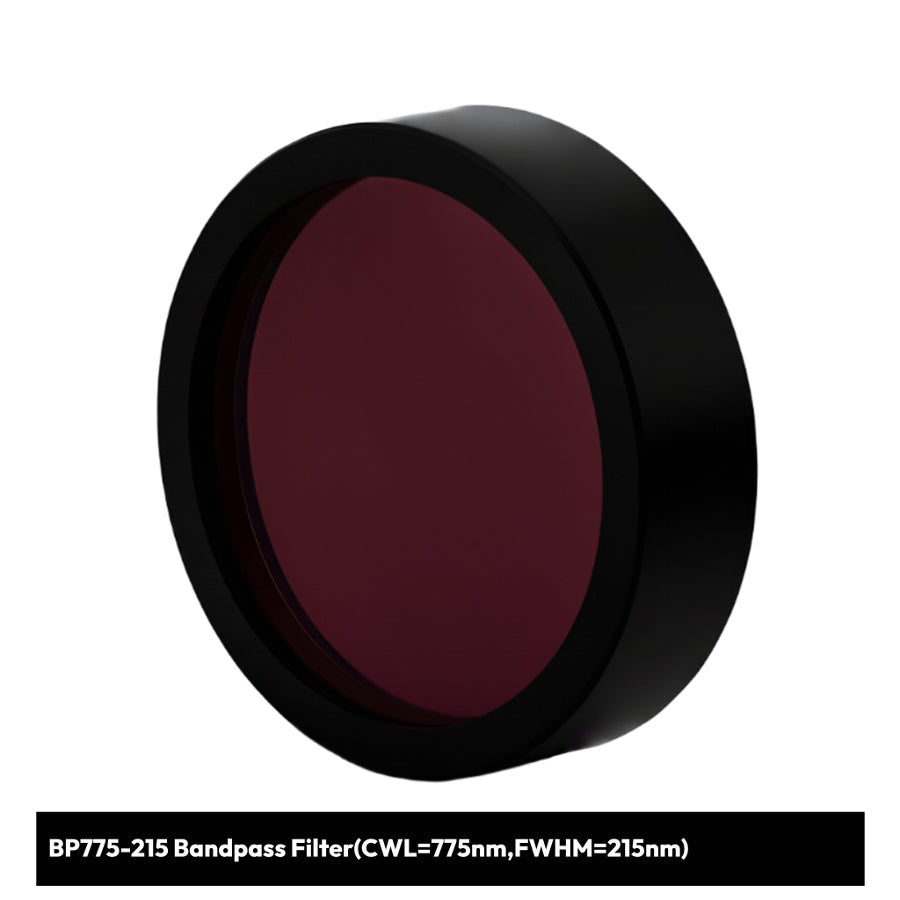

BP775-215 Bandpass Filter(CWL=775nm,FWHM=215nm)

BP775-215 Bandpass Filter(CWL=775nm,FWHM=215nm)

PN:SO3010521

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Ultra-Broadband Visible/Near-Infrared Filtering

The BP775-215 Bandpass Filter delivers reliable optical performance with a center wavelength of 775nm and ultra-wide 215nm FWHM (Full Width at Half Maximum). Operating across the visible to near-infrared spectrum, this versatile filter provides effective broadband spectral coverage for applications requiring very wide bandwidth in the 775nm region.

Technical Specifications

  • Center Wavelength: 775nm ± 5nm
  • FWHM: 215nm for ultra-broadband filtering
  • Peak Transmission: >80% at center wavelength
  • Out-of-Band Blocking: OD2+ rejection
  • Surface Quality: 60-40 scratch-dig specification
  • Coating: Standard broadband optimized multilayer design

Versatile Applications

Ideal for broadband spectroscopy, general imaging applications, color separation, and analytical instrumentation where very wide spectral coverage around 775nm is required. The 215nm bandwidth effectively captures a broad range of visible to near-infrared wavelengths, making it suitable for applications requiring maximum light throughput across a wide spectral range.

Reliable Performance

Each BP775-215 filter undergoes standard optical testing to ensure consistent performance across the ultra-wide spectral range. Proven coating processes provide good environmental stability and reliable long-term performance in broadband applications.

Cost-Effective Solution

The BP775-215 offers dependable ultra-broadband filtering performance at an accessible price point. This filter combines practical manufacturing techniques with quality control to deliver consistent performance for a wide range of applications requiring maximum spectral coverage and light throughput.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
