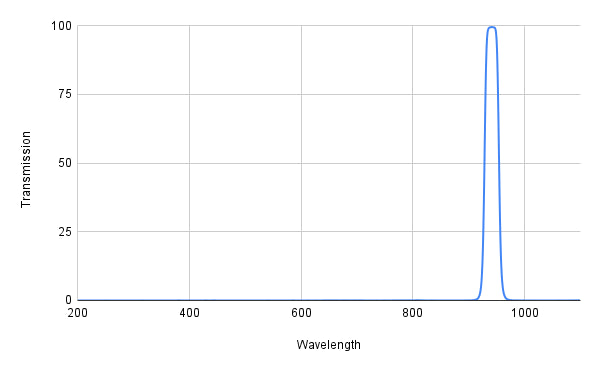

• Spectral transmission graph with a peak at around 900 nm on a white background
1 2

BP940-30 Bandpass Filter(CWL=940nm,FWHM=30nm)

BP940-30 Bandpass Filter(CWL=940nm,FWHM=30nm)

PN:SO3010722

$55.00 USD
$55.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Professional NIR Bandpass Filter for Selective Applications

The BP940-30 Bandpass Filter delivers exceptional performance in the near-infrared spectrum with a center wavelength of 940nm and a well-balanced 30nm full width at half maximum (FWHM). This medium-bandwidth filter provides an optimal combination of spectral selectivity and light collection efficiency, making it ideal for demanding NIR applications requiring both precision and adequate signal strength.

Key Features:

  • Center Wavelength: 940nm (near-infrared spectrum)
  • Medium Bandwidth: 30nm FWHM for balanced performance
  • Superior NIR Transmission: Excellent light throughput in the passband
  • Sharp Spectral Edges: Precise wavelength boundaries
  • Professional Grade: Engineered for critical optical applications

Optimal Applications:

  • Near-infrared spectroscopy and analysis
  • NIR sensing and detection systems
  • Biomedical imaging and diagnostics
  • Machine vision with NIR illumination
  • Scientific instrumentation and research
  • Industrial process monitoring

Technical Excellence:

The 30nm bandwidth provides an excellent balance between spectral selectivity and signal strength, covering approximately 925-955nm. This makes the BP940-30 particularly valuable for applications requiring good spectral discrimination while maintaining adequate light collection in the 940nm region, where many NIR sensors and laser diodes operate.

Whether you're developing precision NIR sensing systems, conducting spectroscopic analysis, or implementing advanced imaging techniques, the BP940-30 ensures reliable performance with the spectral characteristics that demanding NIR applications require.

Optimize your NIR optical systems with the professional performance of the BP940-30 bandpass filter.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
