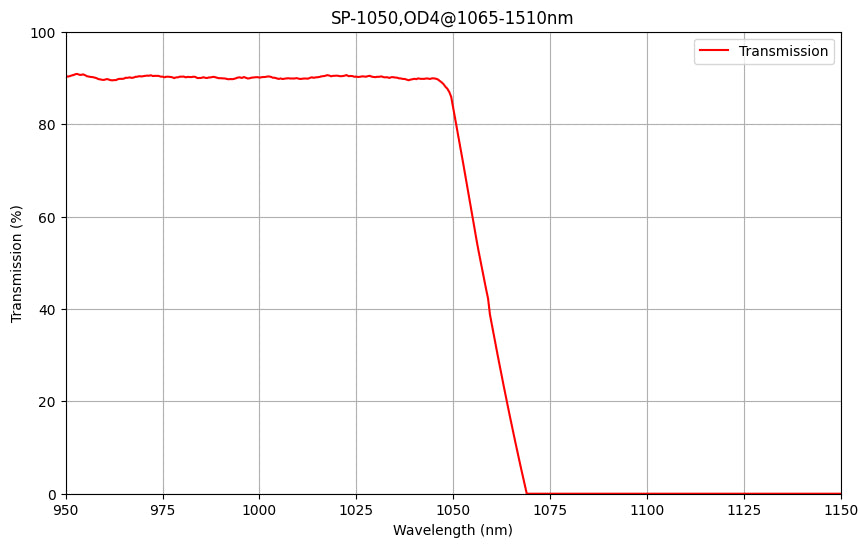

• Transmission spectrum graph with a red line showing transmission percentage against wavelength in nanometers.
1 1

SP1050 Shortpass Filter(T>90%@500-1040nm,OD4@1065-1510nm)

SP1050 Shortpass Filter(T>90%@500-1040nm,OD4@1065-1510nm)

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Cut-off Wavelength
Transmission // Blocking
Dimension

In Stock.

Ships within 5 working days of order.
  • Wavelength: SP1050 shortpass filter optimized for visible to NIR range (500-1040nm)
  • Spectral Features: Sharp cut-off at 1050nm with >90% transmission from 500-1040nm for superior signal clarity
  • Optical Density: OD4 blocking from 1065-1510nm ensures deep rejection of unwanted NIR wavelengths
  • Filter Dimension Availability: Available in multiple standard sizes – contact us for custom dimensions

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to info@syronoptics.com to get raw data.

Shipment & Delivery

Shipment will usually be made within 5 working days after order.

Delivery from local warehouse is available for below countries and region.

  1. USA
  2. UK
  3. Europe
  4. China
  5. Singapore

To request shipment from local warehouse you need to provide your order number to order@syronoptics.com and inform us from which warehouse you want to initial the shipment.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Payment Notice

Payment could be done online with Credit Card, Apple Pay, Google Pay.

Amount will not be deducted immediately after you authorized the payment. We will share raw data for confirmation by email, only after confirmation the amount will be deducted.

For amount under $100 you can request to make payment within 7 days after received the product. (NET7)

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact info@syronoptics.com for details.

Custom Mounting

We have filter mounting option including:

  • Threaded Mounting
  • Retaining Ring
  • Filter Wheel
  • Filter Cube
  • Filter Slide

Buy in Bulk

For order quantity (or equal coating size) above 100pcs x dia25mm filters. Discount will be available.

Generally the discount will be ranging from 10 - 50% depending on the quantity and specification you are ordering.

View full details

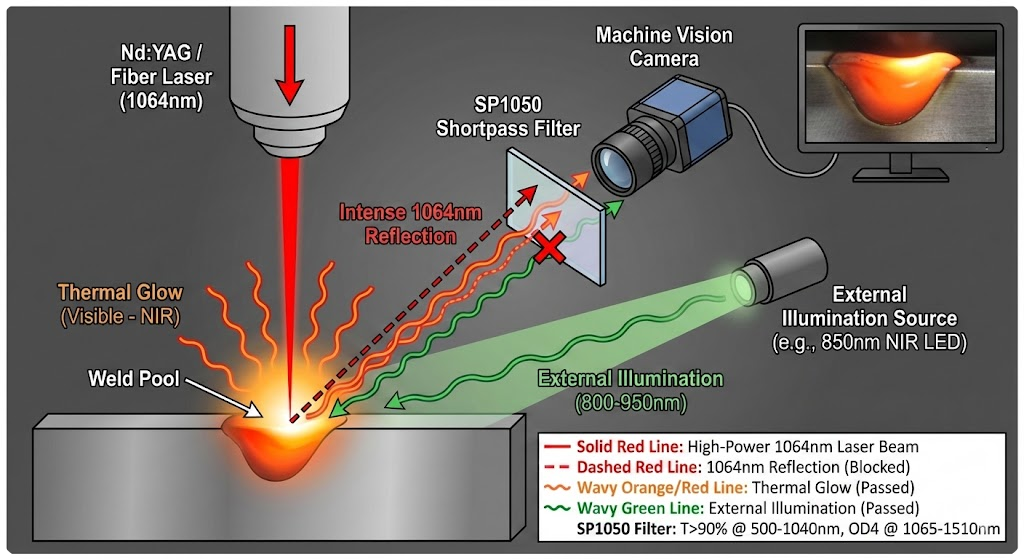

  • SP1050 Shortpass Filter - Laser Process Monitoring

    SP1050 Shortpass Filter - Laser Process Monitoring

    Laser Process Monitoring

    The most distinct application for this filter is Machine Vision inspection in the presence of Nd:YAG or Fiber Lasers.

    In industrial settings (like laser welding, cutting, or marking), high-power lasers operating at 1064nm are used to melt metal. Cameras need to monitor the "weld pool" or the part being processed without being blinded or damaged by the intense reflection of the laser beam.

    • How it works: The SP1050 acts as a "laser clean-up" or protection filter. It blocks the blinding 1064nm laser spike (and longer wavelengths) while allowing the camera to see the thermal glow of the weld pool or external illumination (which is often in the visible or 800-950nm range).

    Recommended Light Sources

    • 940nm High-Power LEDs: These emit at a wavelength that passes through the filter with high efficiency (>90%) but is close enough to the infrared spectrum to reduce visual distractions for operators; they provide strong illumination for the camera while the filter strictly blocks the nearby 1064nm laser reflections.
    • 850nm NIR LEDs: This is a standard machine vision wavelength that matches the peak sensitivity of most industrial silicon sensors (CCD/CMOS) and passes completely through the 500-1040nm passband, ensuring bright, low-noise images of the workpiece.
    • Visible Spectrum LEDs (White or Red): These are recommended when the application requires color contrast or manual visual verification by operators, as the filter allows full transmission of visible light while still protecting the sensor from the damaging IR laser energy.

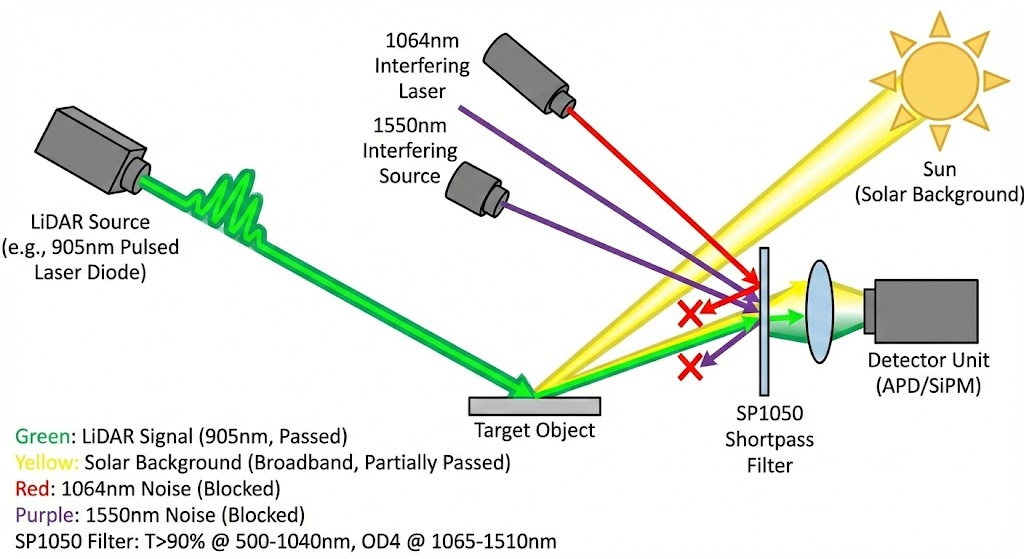

  • SP1050 Shortpass Filter - LiDAR & Remote Sensing

    SP1050 Shortpass Filter - LiDAR & Remote Sensing

    LiDAR & Remote Sensing

    It effectively filters out background noise from 1064nm or 1550nm sources while permitting detectors to see signals in the 900-1000nm range (common for many LiDAR diodes).

    Recommended Light Sources

    • 905nm Pulsed Laser Diodes: These are the industry standard for Time-of-Flight (ToF) LiDAR systems; the SP1050 allows this wavelength to pass with maximum transmission (>90%) while blocking longer-wavelength interference from common environmental sources or other laser systems.
    • 940nm VCSEL Arrays: These sources are increasingly used for short-to-medium range sensing (like facial recognition or obstacle avoidance) because the 940nm wavelength suffers less interference from sunlight; the filter passes this signal clearly while protecting the detector from specific 1064nm noise sources.
    • 980nm Laser Diodes: Often used in specialized remote sensing or pumping applications, this wavelength sits near the upper limit of the filter's passband, allowing for detection systems that need to operate discreetly just below the 1000nm cutoff.
