    Hard-clad Silica Multimode Fiber

    • Low-hydroxy or high-hydroxy hard-clad silica multimode fiber has good performance and transmission for use in the UV to near-IR (180-1100nm for high-hydroxy) or visible to near-IR (400-2500nm for low-hydroxy).
      The fiber has a double cladding design (TECS on the fluorine-doped silica layer) to improve dynamic performance (especially when the fiber is bent). It also increases the strength of the fiber and reduces static fatigue.
      The strong bonding of the quartz and TECS cladding avoids slippage or decoupling, providing a more stable terminal.
      This type of fiber has been used in many fields such as spectroscopy, laser, medical, laser, industrial sensor monitoring, etc.

    Fiber Optic Cable Selection

    • Straight Type Fiber Cable

      Connector: SMA905 D80 FC ST (customized connector Can be provided)

      Core core diameter:

      • Single mode :3.5um 9um
      • Multi-mode: 50um, 105um, 200um, 300um, 400um, 600um, 800um, 1000um, 1500um

      Fiber numerical pores: 0.12, 0.15, 0.22, 0.37

      Use band: 180-1100nm, 400-2500Nm
      The total length is 1 meter (customized length is available)

      Attach a dust hat with each connector

    • Y-Type Fiber Cable

      The three interfaces are SMA905. (the connector can be matched.)

      One in, two out or two in one out (how much the branch can be made by requesting)

      Connector: SMA905 D80 FC ST (customized connector Can be provided)

      Core core diameter:

      • Single mode :3.5um 9um
      • Multi-mode: 50um, 105um, 200um, 300um, 400um, 600um, 800um, 1000um, 1500um

      Fiber numerical pores: 0.12, 0.15, 0.22, 0.37

      Use band: 180-1100nm, 400-2500nm
      The total length is 1 meter (customized length is available)

      Attach a dust hat with each connector.

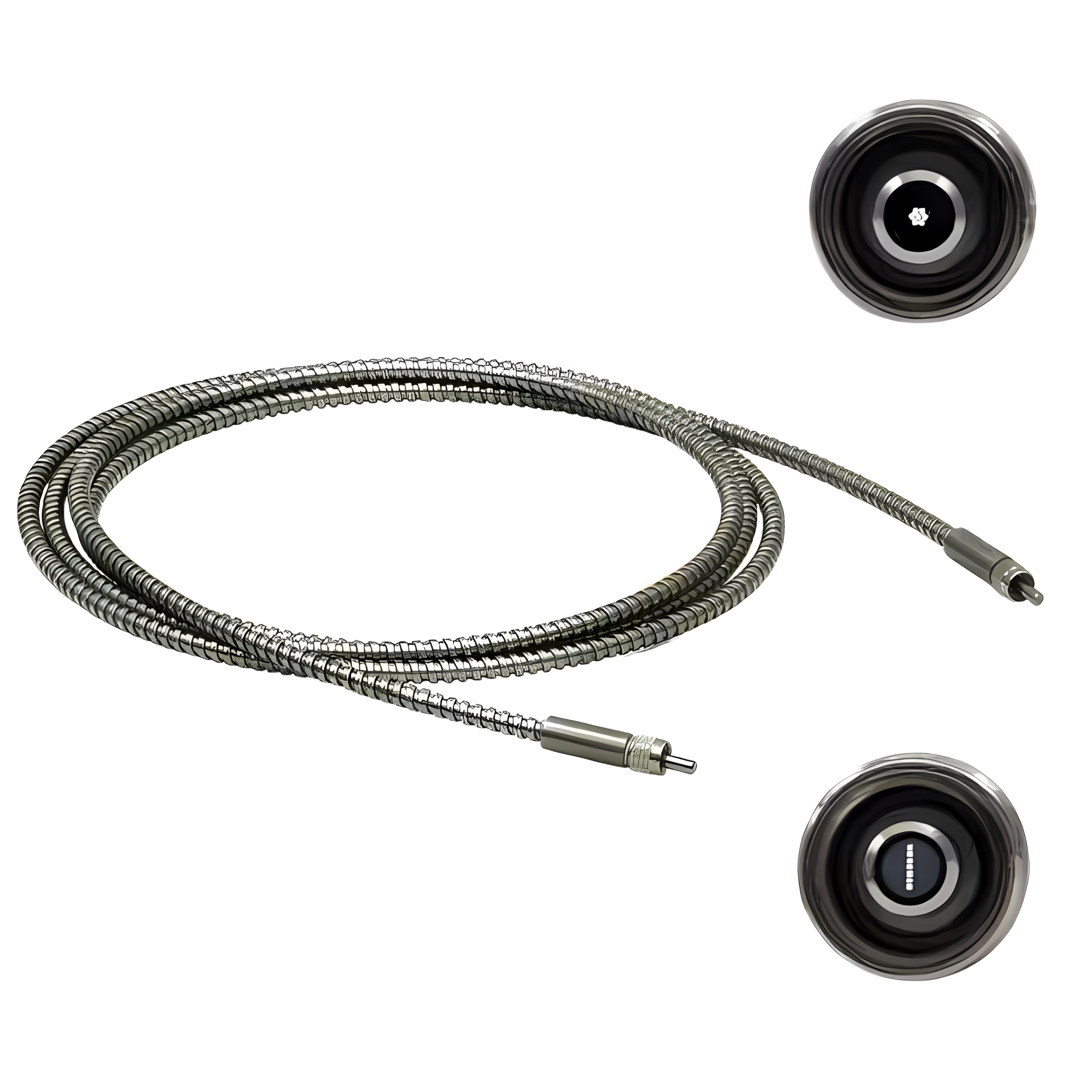

    • Ring Rotor Fiber Cable

      Connector: SMA905 D80 FC ST (customized connector Can be provided)

      Core core diameter:

      • Single mode :3.5um 9um
      • Multi-mode: 50um, 105um, 200um, 300um, 400um, 600um, 800um, 1000um, 1500um

      Fiber numerical pores: 0.12, 0.15, 0.22, 0.37

      Use band: 180-1100nm, 400-2500Nm
      The total length is 1 meter (customized length is available)

      Attach a dust hat with each connector

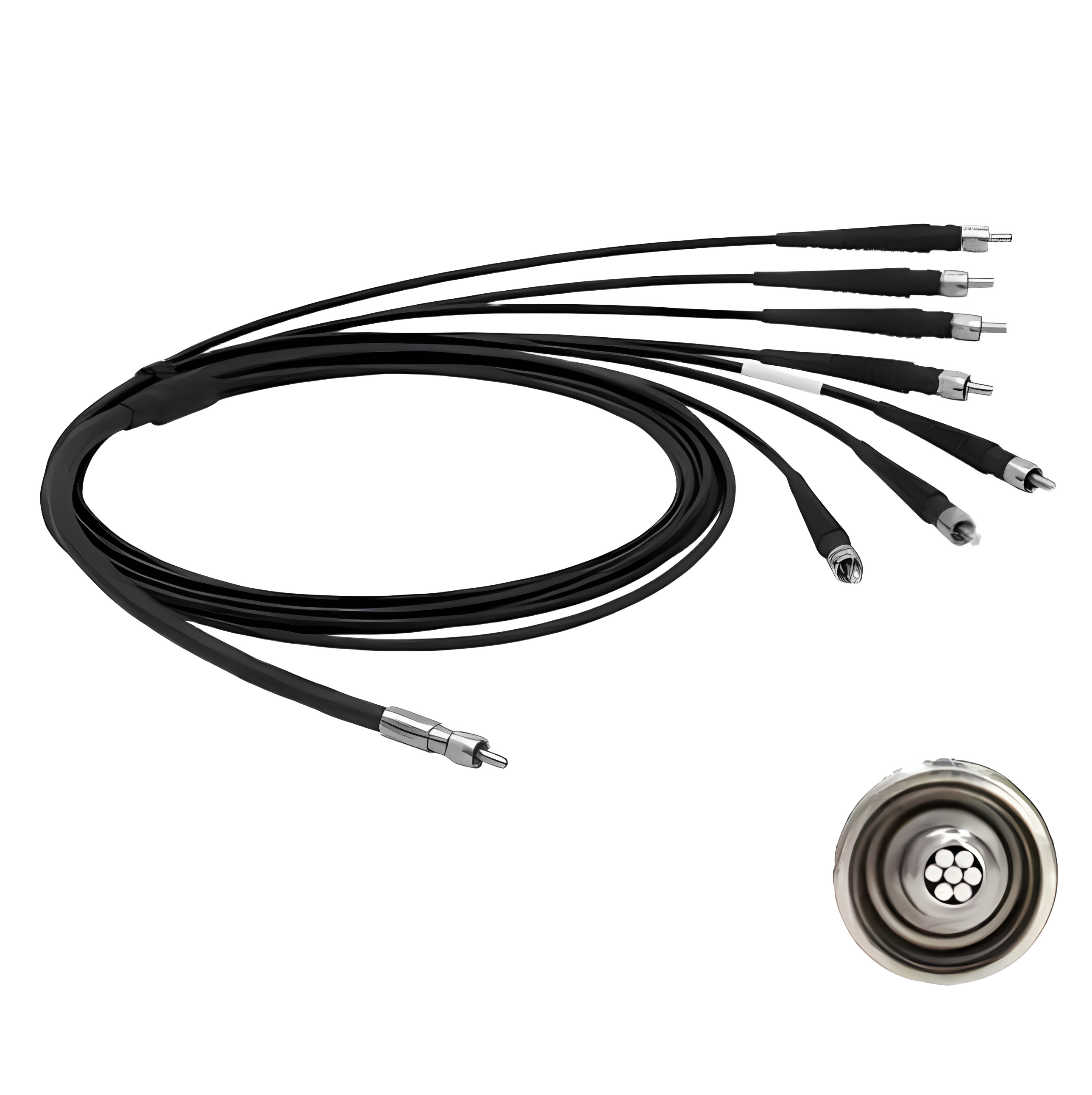

    • Multi-head Ring Rotor Fiber Cable

      The seven interfaces are SMA905 (the joints can be matched.)

      1 out, seven or seven in one out (how much the branch can be made as required)

      Connector: SMA905 D80 FC ST (customized connector Can be provided)

      Core core diameter:

      • Single mode :3.5um 9um
      • Multi-mode: 50um, 105um, 200um, 300um, 400um, 600um, 800um, 1000um, 1500um

      Fiber numerical pores: 0.12, 0.15, 0.22, 0.37

      Use band: 180-1100nm, 400-2500Nm
      The total length is 1 meter (customized length is available)

      Attach a dust hat with each connector

    Fiber Structure and Transmission

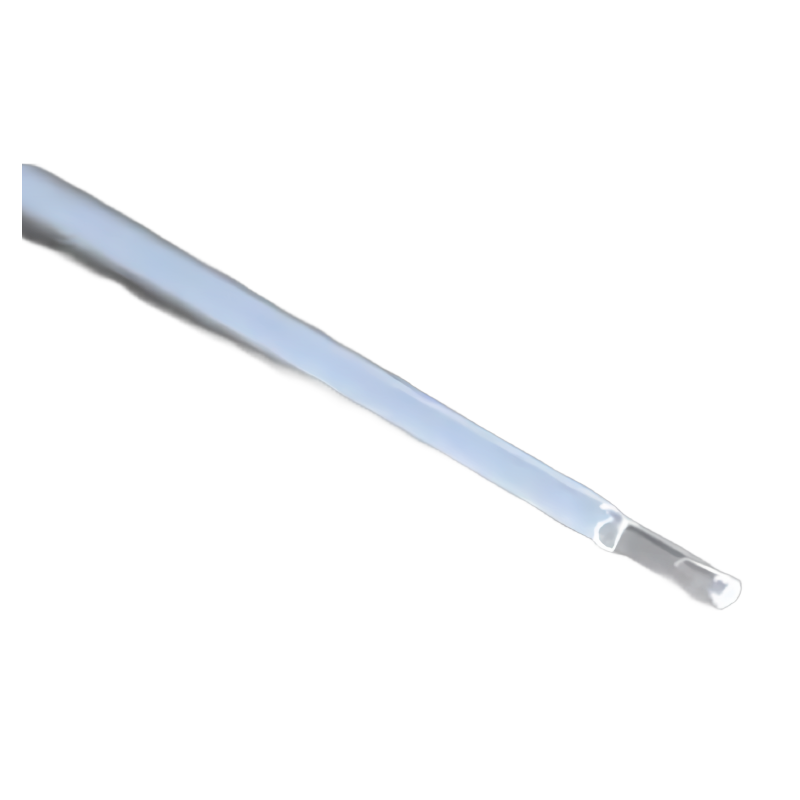

    • Fiber

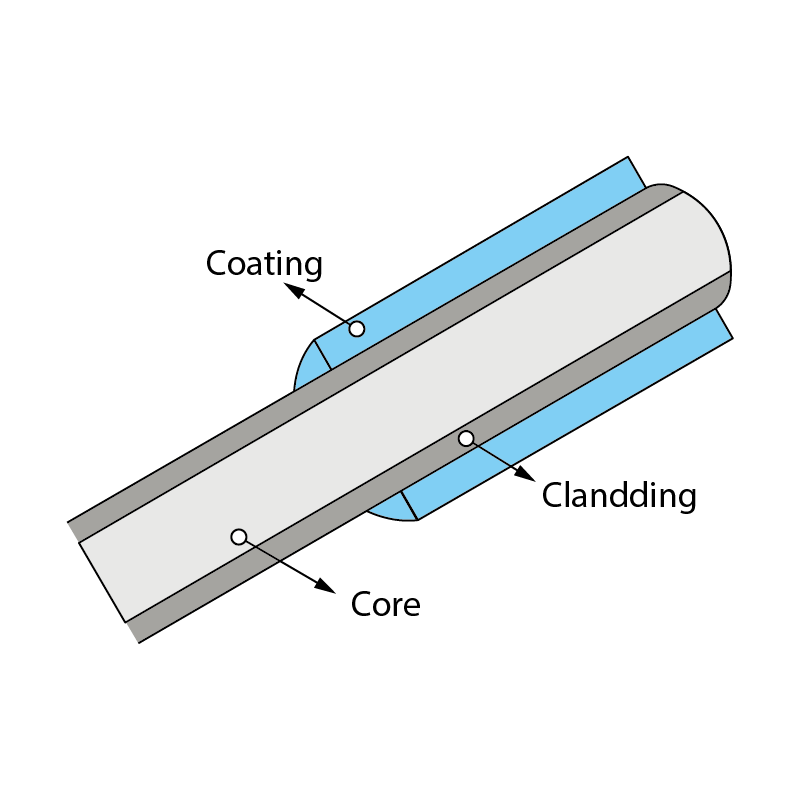

    • Fiber Structure

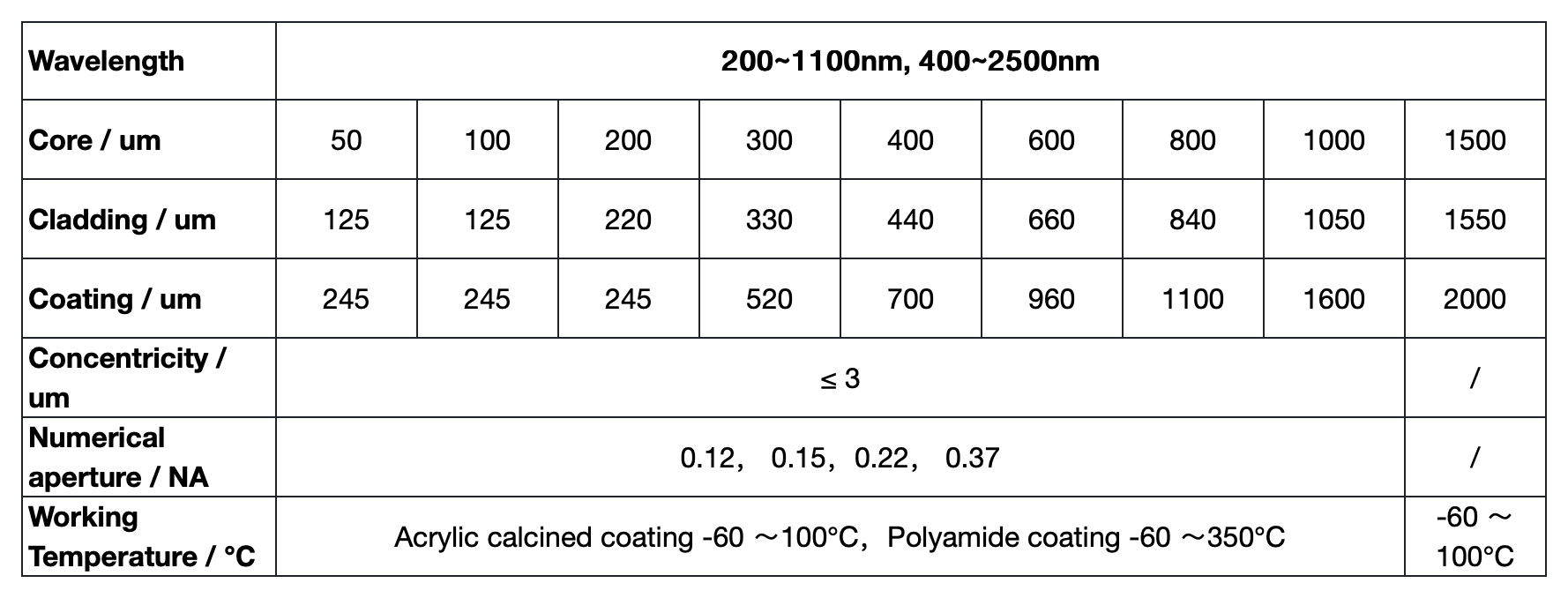

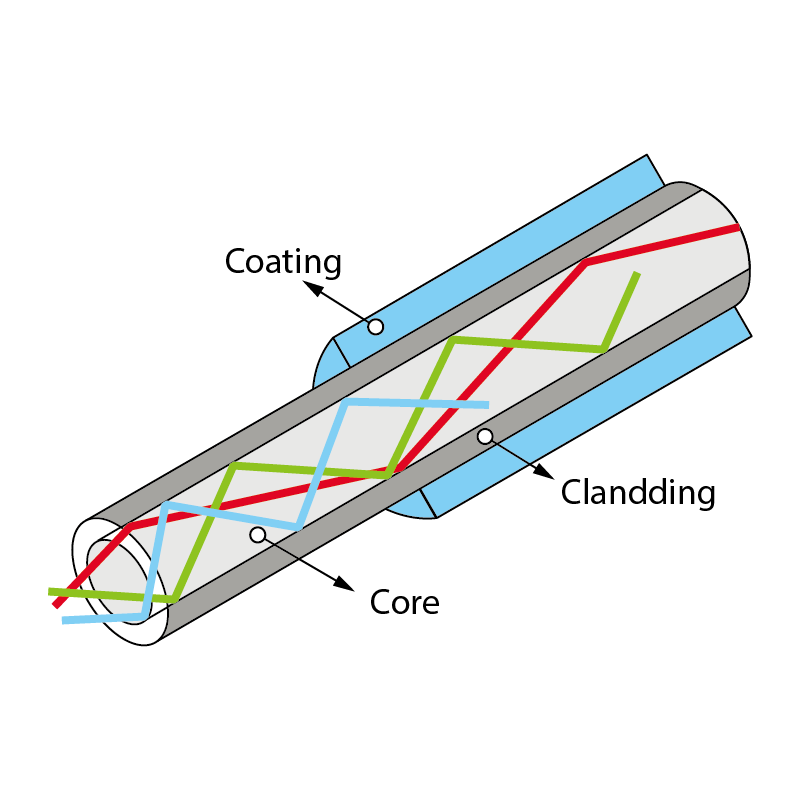

    • Fiber Transmission

    Attenuation Data

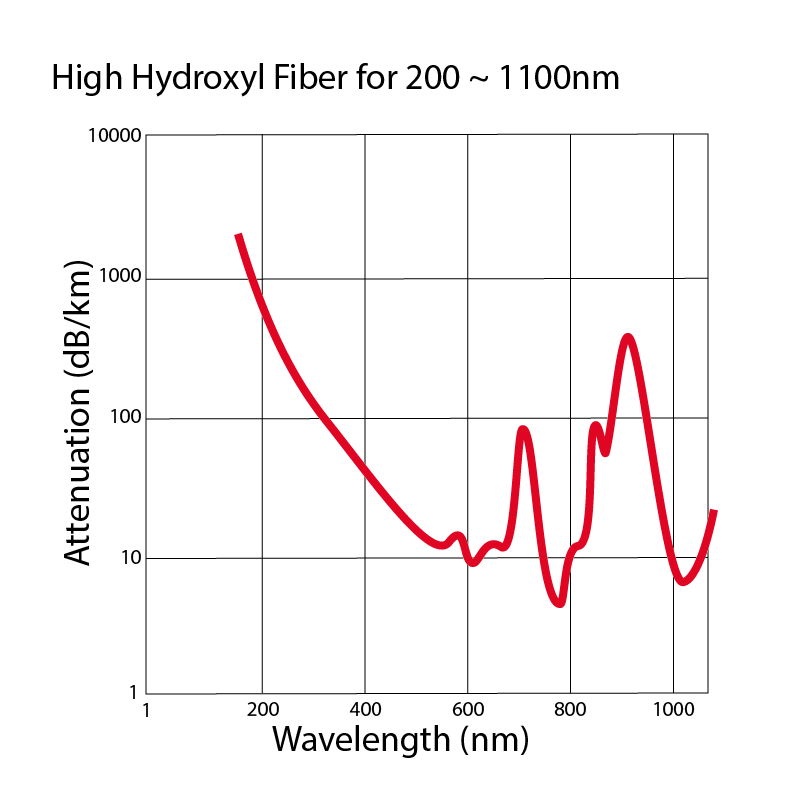

    • High Hydroxyl Fiber for 200 ~ 1100nm

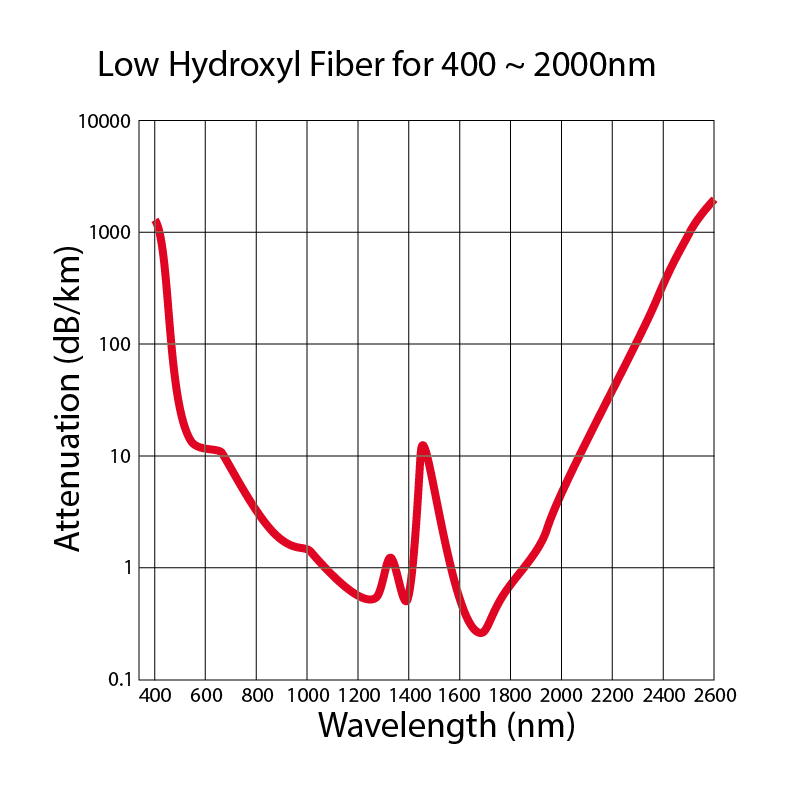

    • Low Hydroxyl Fiber for 400 ~ 2000nm

    Fiber Optic Cable Connector Selection

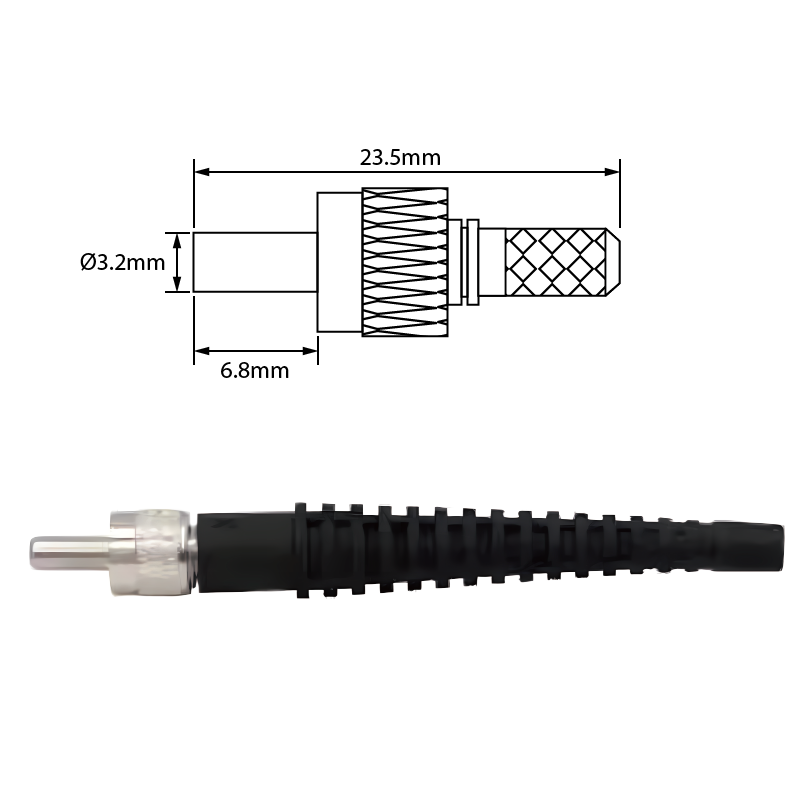

    • SMA905

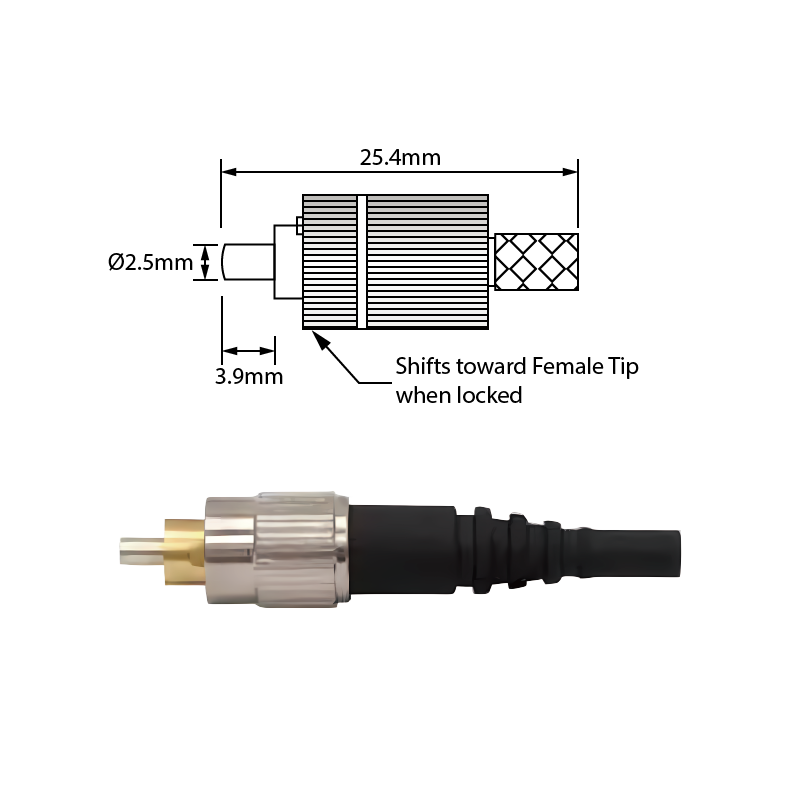

    • FC / PC

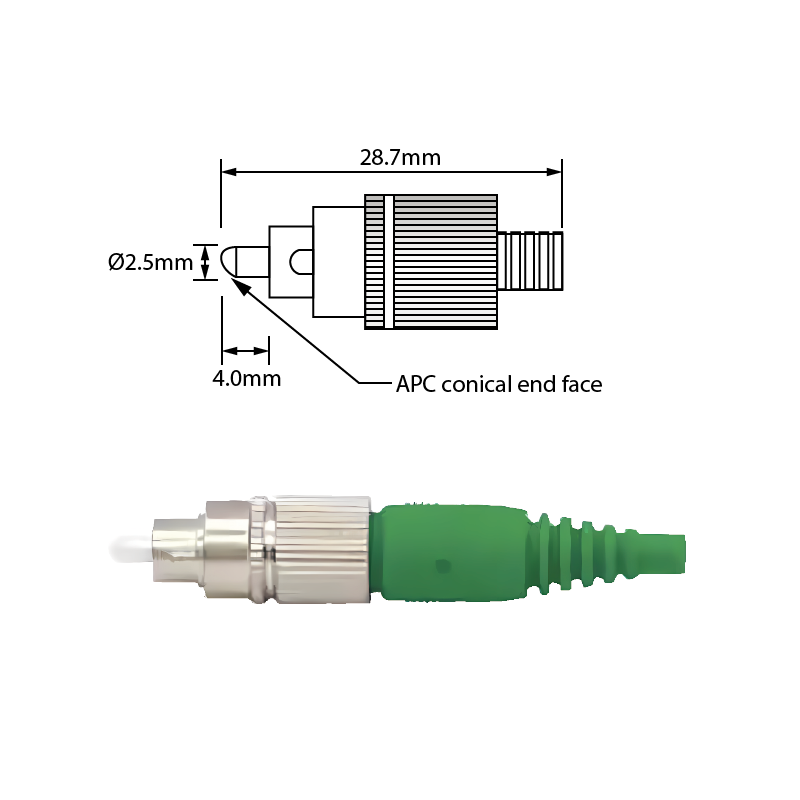

    • FC / APC

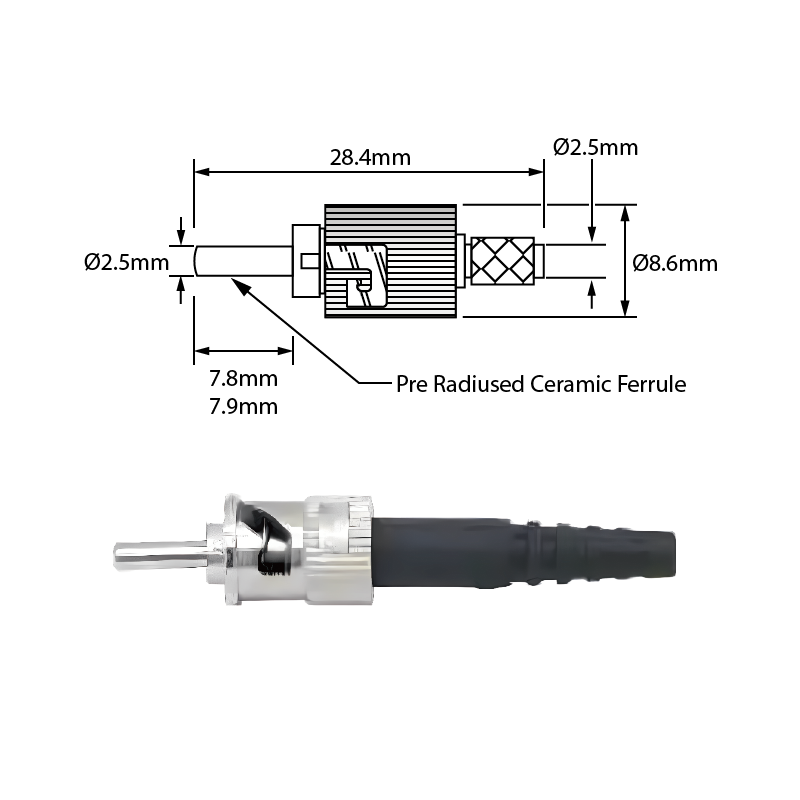

    • ST

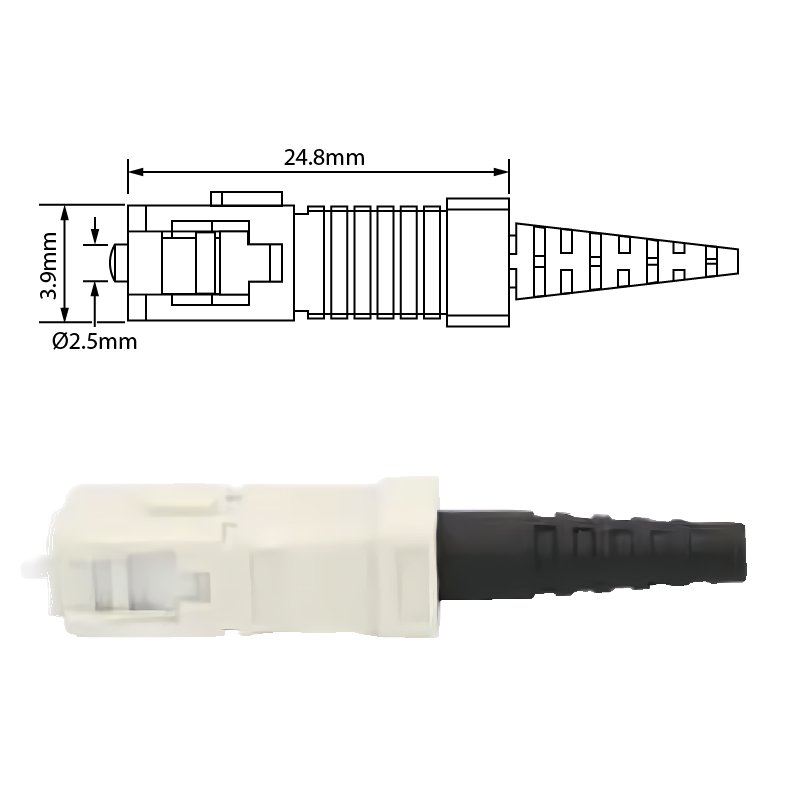

    • SC

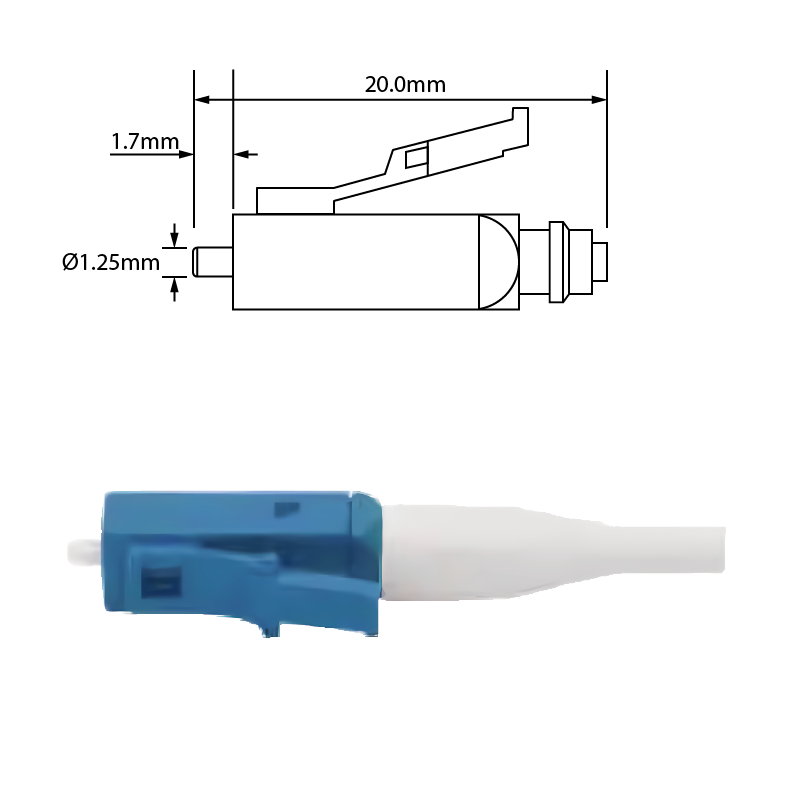

    • LC

    Fiber Optic Cable Sheath Selection

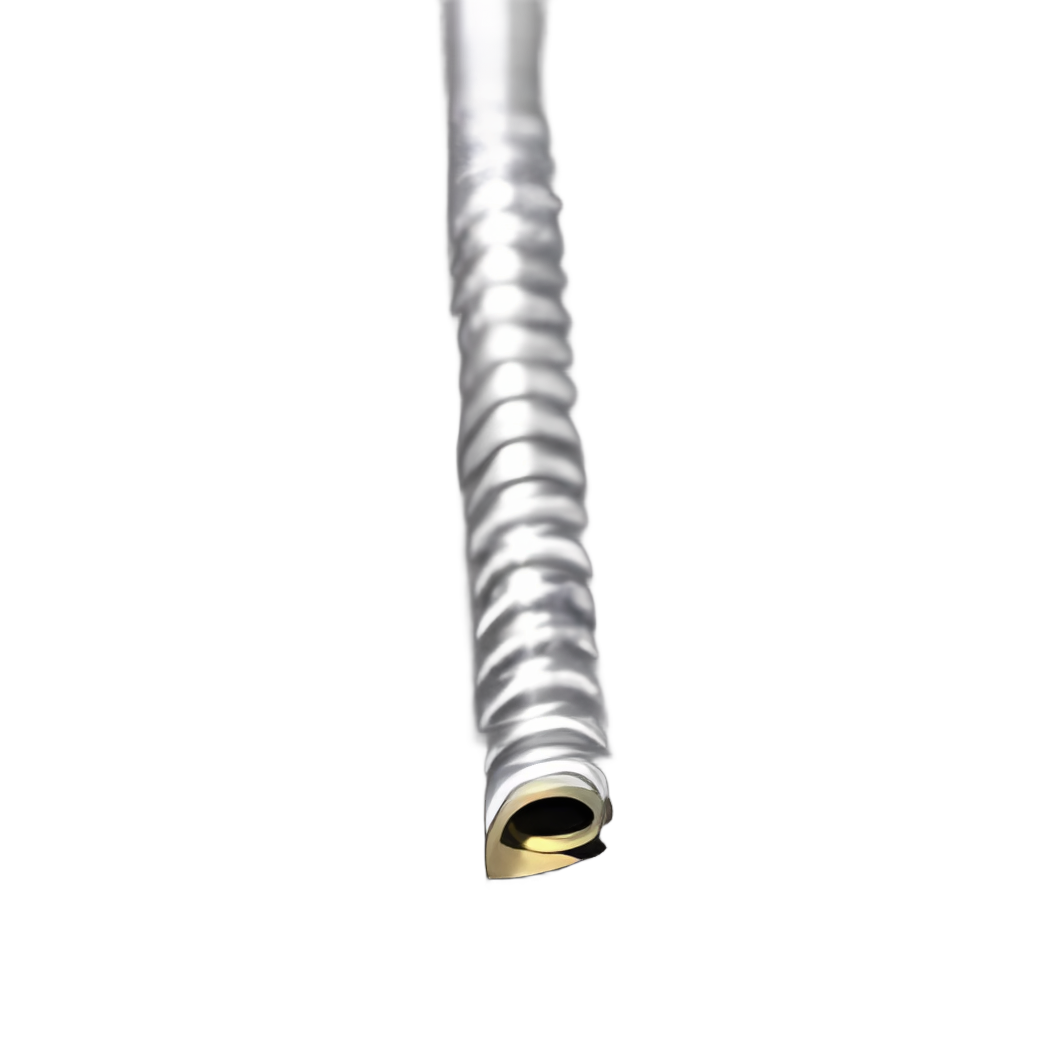

    • Metal sheath

      Outer Dia. 5mm

      Inner Dia. 3mm

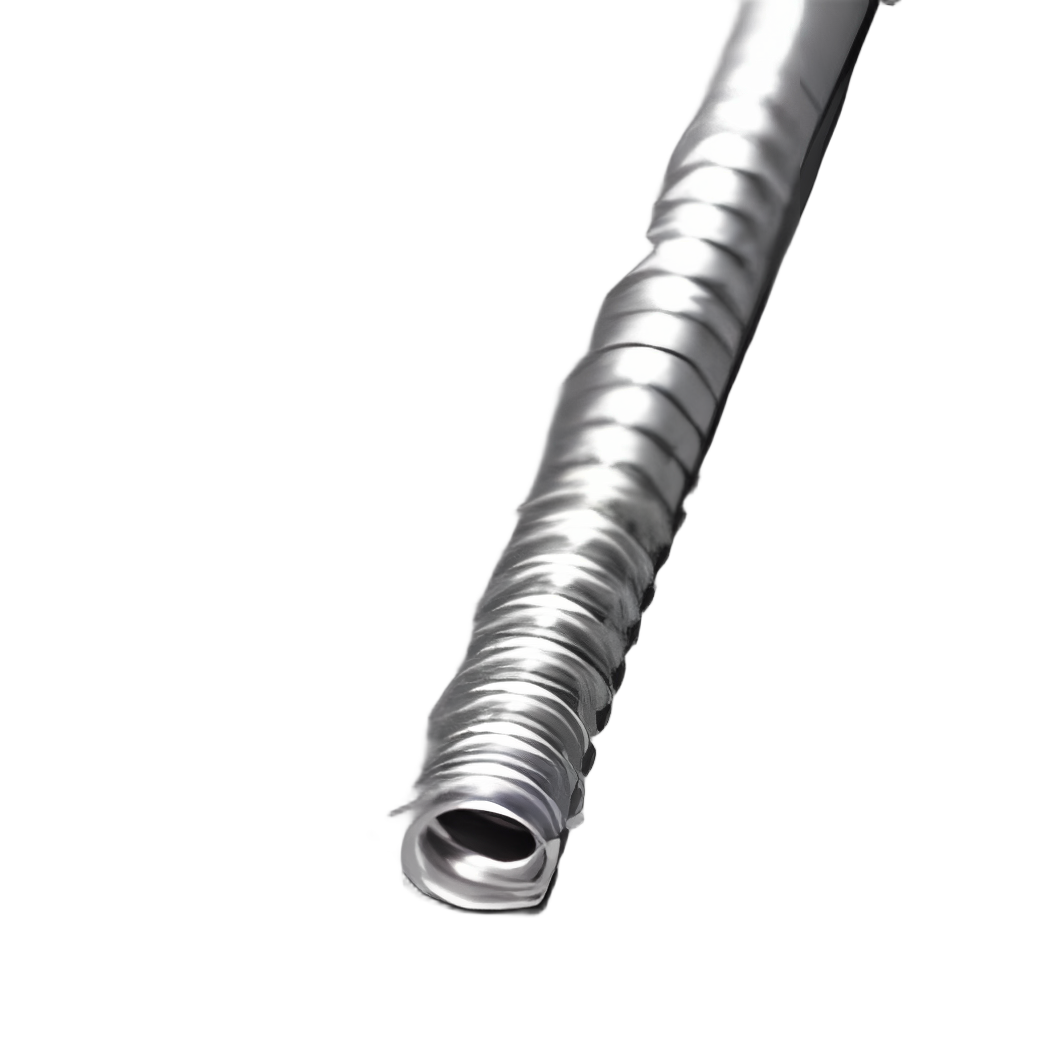

    • Metal sheath

      Outer Dia. 6mm

      Inner Dia. 4mm

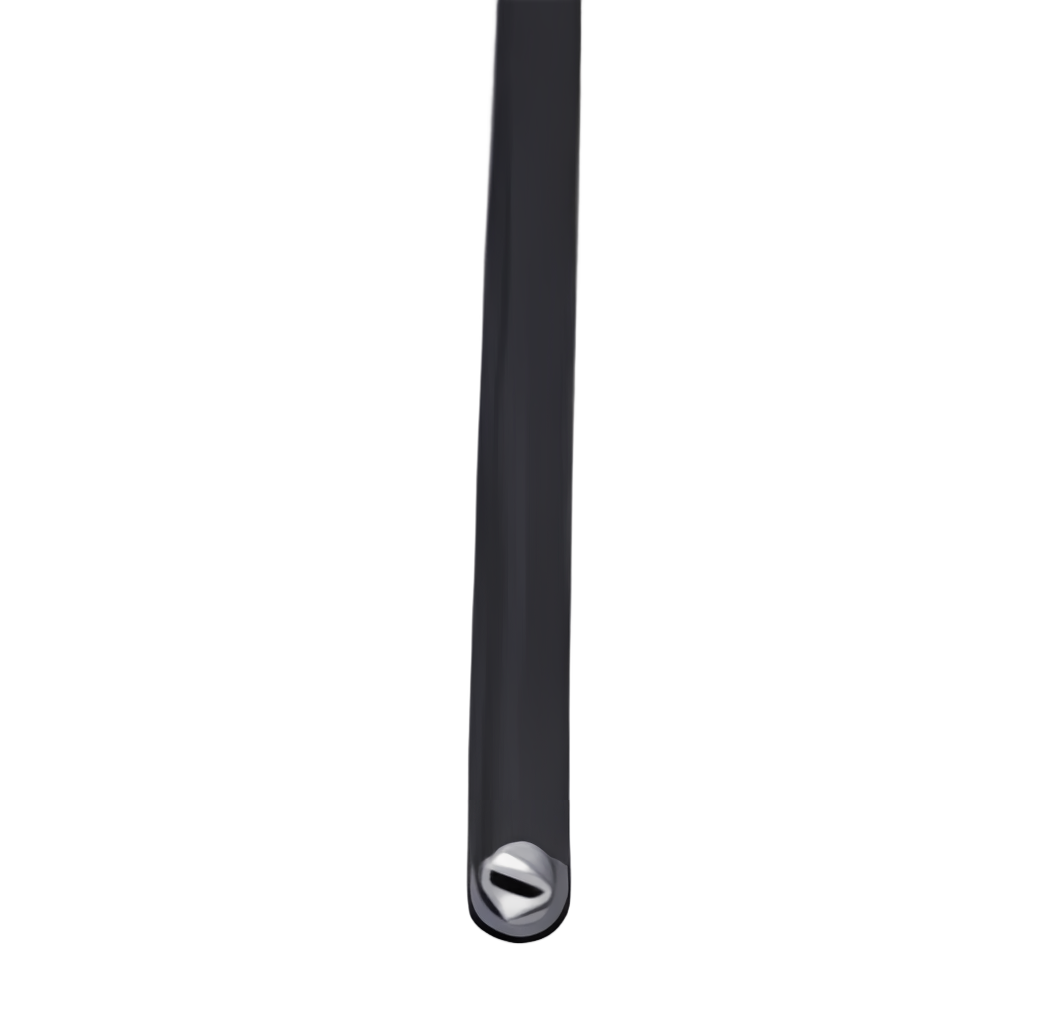

    • PVC Black sheath

      Outer Dia. 3mm

      Inner Dia. 1mm

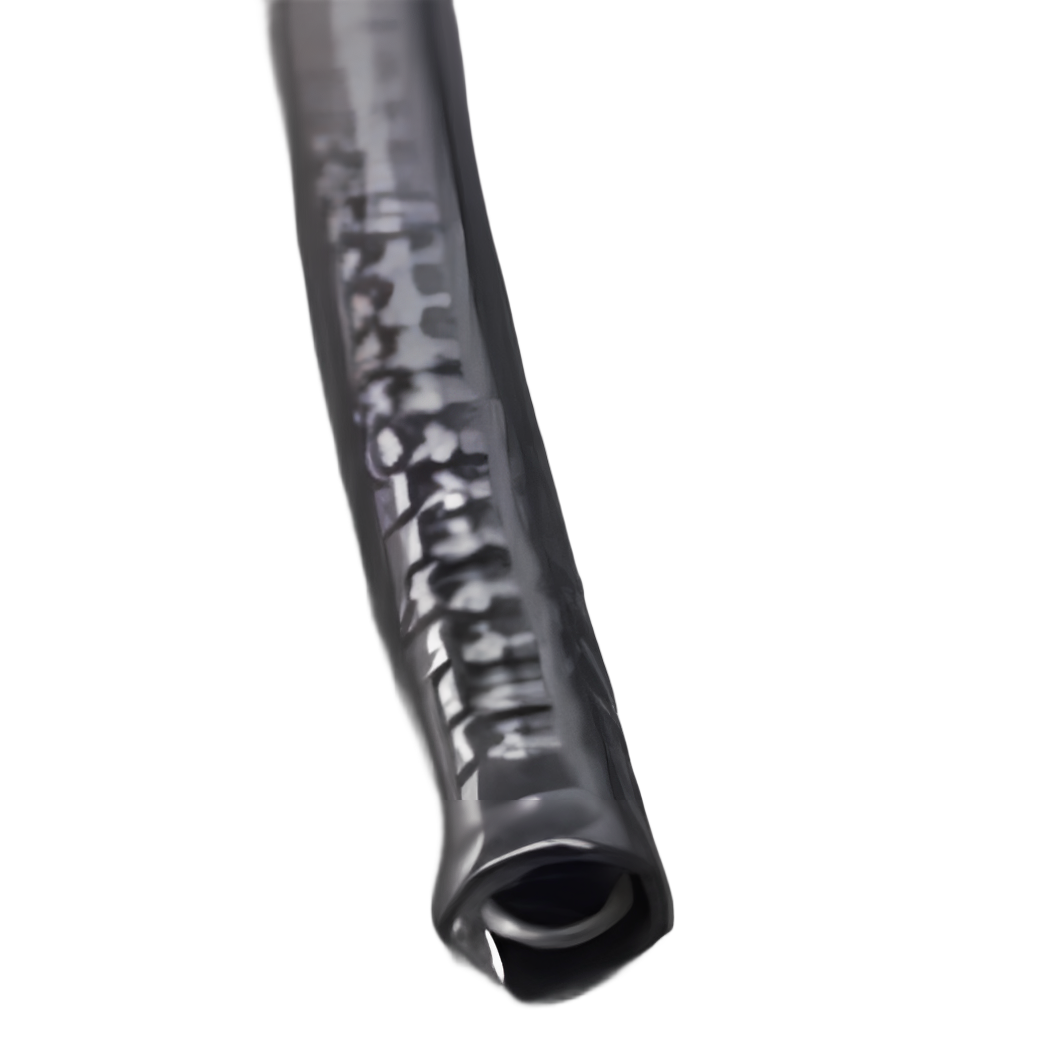

    • PVC Black sheath

      Outer Dia. 6mm

      Inner Dia. 4mm

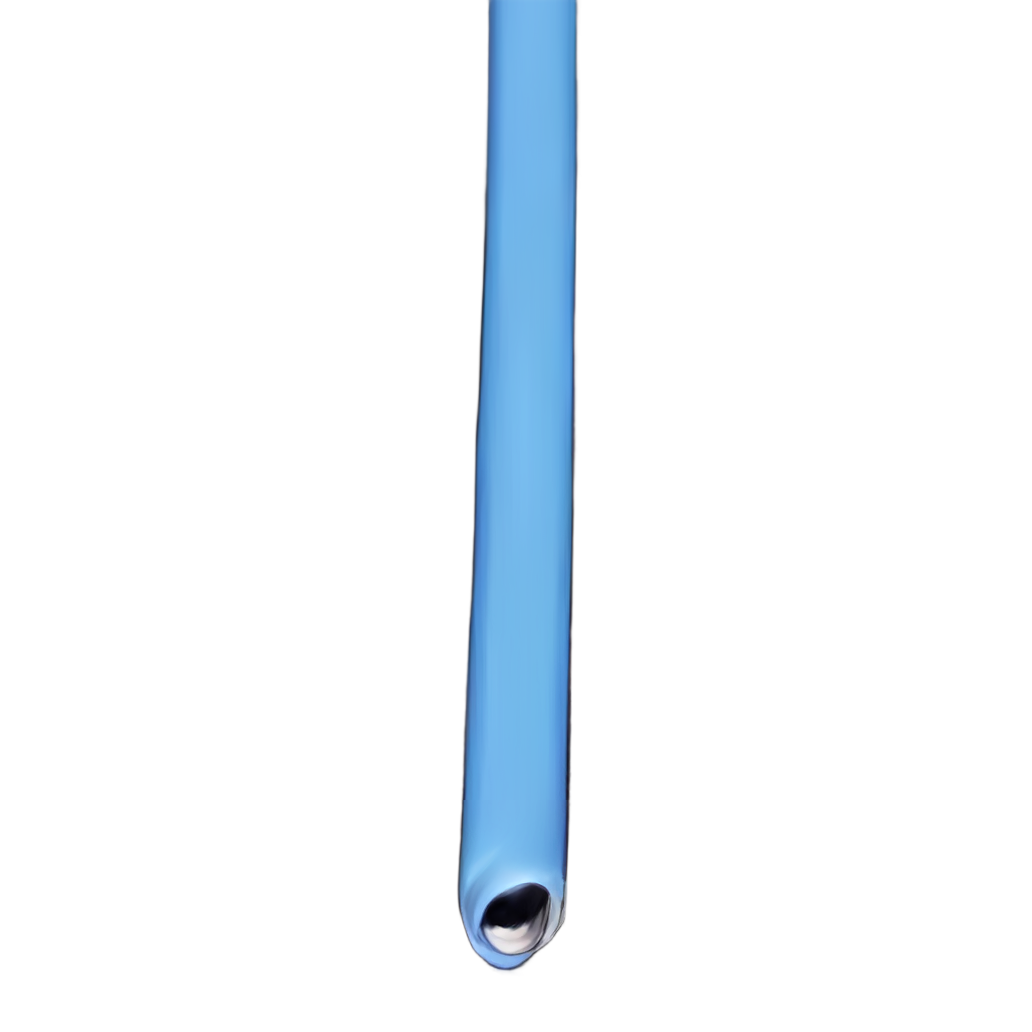

    • PVC Blue sheath

      Outer Dia. 3mm

      Inner Dia. 1mm

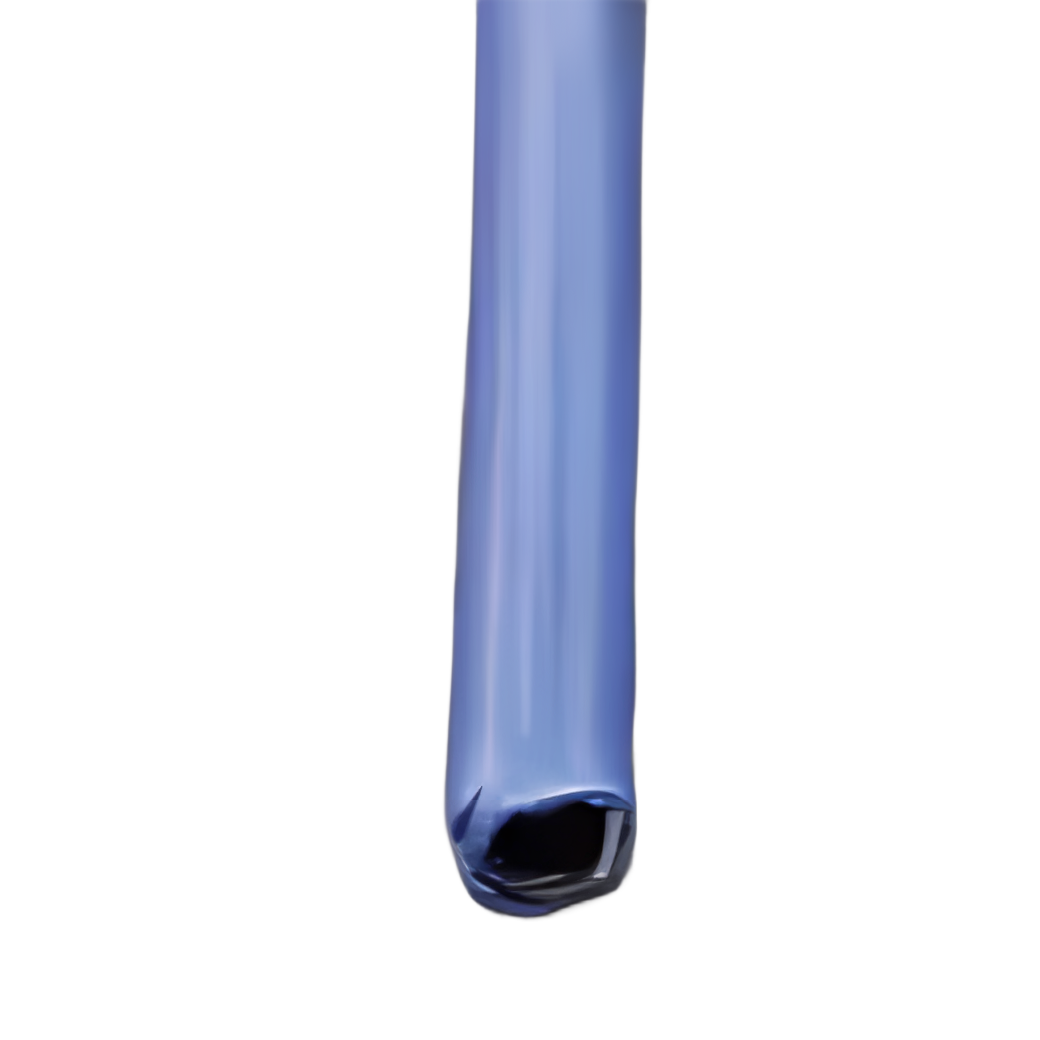

    • PVC Blue sheath

      Outer Dia. 5mm

      Inner Dia. 3mm
