1080nm Filter Selection Guide: Reverse Engineering from Typical Applications
I. Filter Configuration for 1080nm Laser Processing Systems

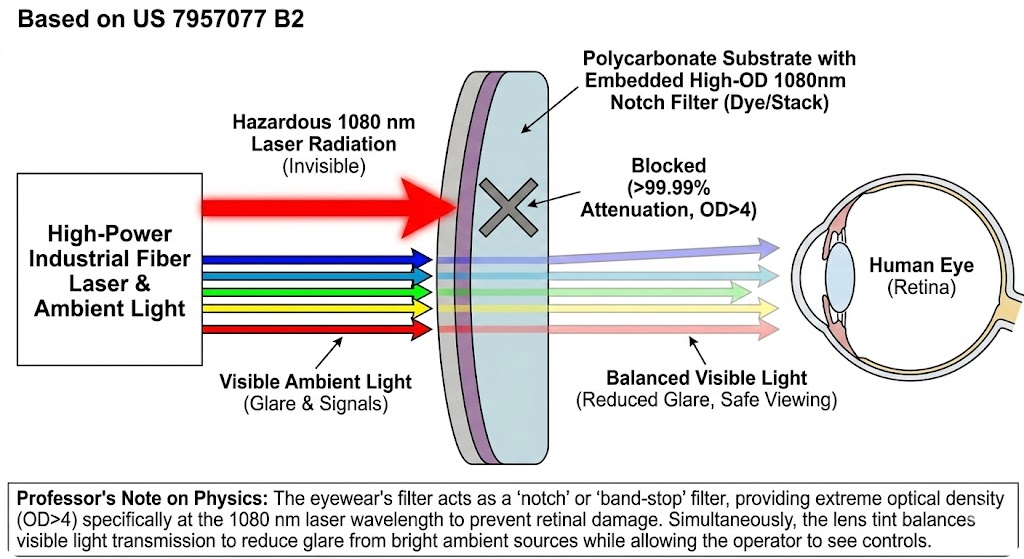

Application Scenario:In industrial fiber laser welding equipment, 1080nm high-power lasers (e.g., 10kW-class continuous-wave lasers) are used for deep penetration welding of metallic materials. Specific filters are required in the optical path system to achieve the following core functions:
1. Core Filter Specifications

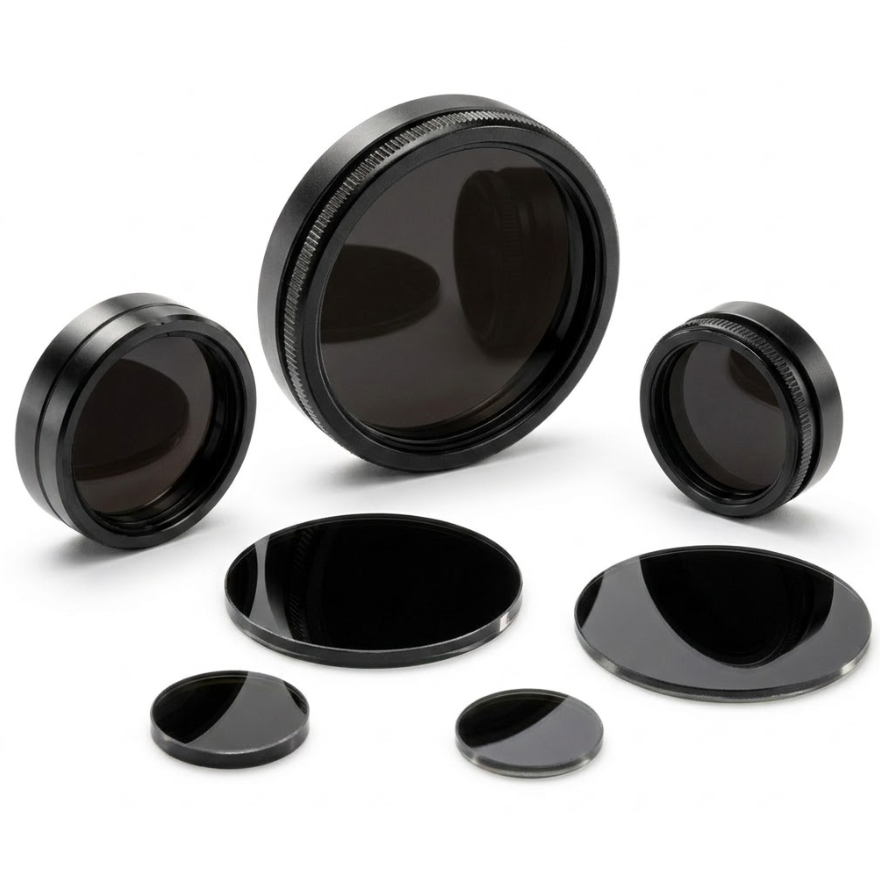

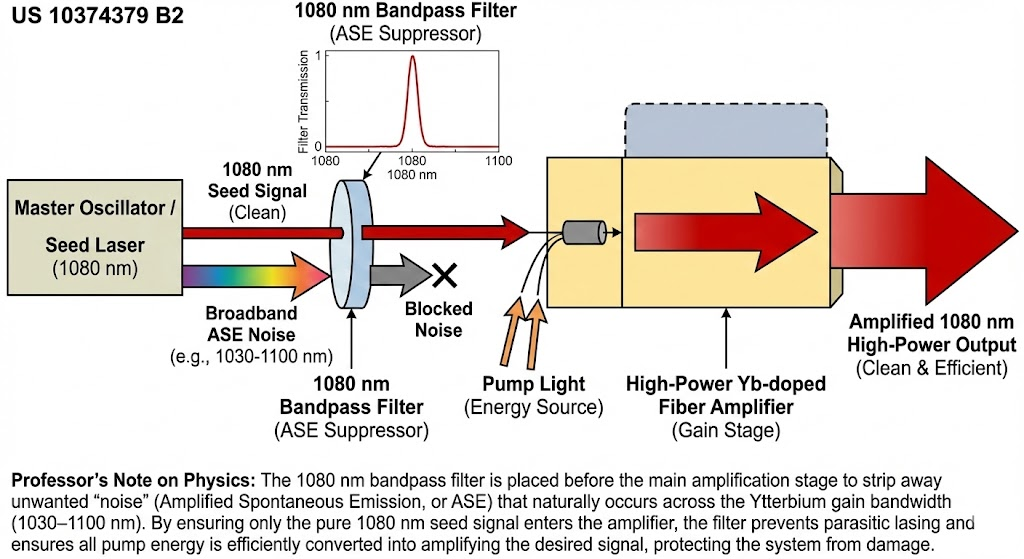

Bandpass Filter
- Central Wavelength: 1080 ± 0.5nm (strictly matched to the laser output wavelength)
- Bandwidth (FWHM): ≤ 2nm (realized via multi-stage Fabry-Perot interferometric cavity design)
- Peak Transmittance: ≥ 99.5% (achieved through ion-beam sputtering coating technology)
- Blocking Depth: OD ≥ 6 (transmittance of non-passband wavelengths < 0.0001% in the 800–1100nm range)
- Laser Damage Threshold: ≥ 50J/cm² (10ns pulse, 1kHz repetition rate)
Protective Components
- Fused silica substrate with anti-reflective coating (refractive index mismatch Δn < 0.001)
- Integrated micro-channel water-cooling structure (heat dissipation efficiency > 200W/cm²)
2. Selection Rationale

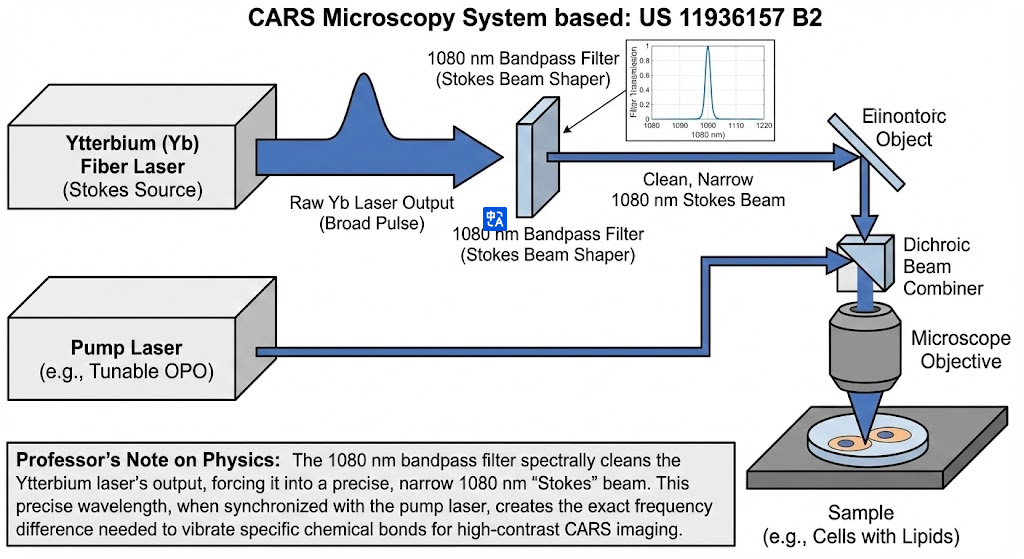

Narrow Bandpass Design
To accommodate potential ±1nm spectral drift of the laser output (caused by temperature fluctuations or pump source instability), a 2nm bandwidth ensures full-power laser transmission while suppressing residual 808nm pump light—energy levels exceeding 1% could saturate photodetectors.
High Damage Threshold
With a focused power density of up to 10⁸W/cm² from 10kW lasers, standard filters (damage threshold < 10J/cm²) fail within seconds. A Ta₂O₅/SiO₂ multilayer film system (layer thickness control precision ±0.1nm) is necessary to withstand high-power loads.
Deep Blocking Feature
532nm second harmonic generated by welding spatter (via nonlinear optical effects) would interfere with coaxial vision monitoring systems. An OD6 blocking depth attenuates such stray light to less than one-millionth of its original energy.
II. Filter Configuration for 1080nm Optical Communication Systems
Application Scenario:In long-haul fiber transmission networks, the 1080nm wavelength serves as a backup communication link outside the C-band (1530–1565nm). Filters in optical modules must achieve the following core functions:
1. Core Filter Specifications
Polarization-Insensitive Bandpass Filter
- Central Wavelength: 1080 ± 0.1nm (matched to the wavelength locking precision of tunable lasers)
- Bandwidth (FWHM): 0.8nm (corresponding to 100GHz channel spacing)
- Insertion Loss: ≤ 0.5dB (achieved via ion-beam assisted deposition technology)
- Polarization-Dependent Loss (PDL): ≤ 0.05dB (using asymmetric film stack design)
- Temperature Stability: Central wavelength drift < 0.01nm/°C (-40°C to 85°C)
Compensation Components
- Built-in chirped mirror for dispersion compensation (group delay dispersion <±50fs²)
- Integrated MEMS temperature controller (temperature control precision ±0.05°C)
2. Selection Rationale
Polarization Insensitivity
Polarization state variations in fiber transmission (due to stress or temperature gradients) degrade signal quality. A (ahbmclbmah)^p periodic film stack (a=0.75, b=0.8, c=1.2, p=30) limits p-s polarization separation to ≤0.9nm, meeting the polarization tolerance requirements of coherent communication systems.
Ultra-Narrow Bandwidth
In dense wavelength division multiplexing (DWDM) systems with 0.8nm (100GHz) channel spacing, traditional filters with transition band slopes >10nm/%T cause crosstalk exceeding -30dB. A multilayer stack with >30 high/low refractive index pairs (Δn > 0.8) compresses the transition band to ≤0.3nm.
Thermal Stability
Ambient temperature changes induce ~0.002nm/°C wavelength drift in filters. Doping the substrate with GeO₂ (adjusting thermal expansion coefficient to 0.5ppm/°C) and integrating MEMS temperature control technology ensure drift remains within system tolerance.
III. Key Parameter Comparison Across Scenarios
Laser Processing vs. Optical Communication Requirements
- Central Wavelength Accuracy:
- Laser Processing: ±0.5nm (matched to laser source)
- Optical Communication: ±0.1nm (aligned to DWDM channels)
- Bandwidth (FWHM):
- Laser Processing: ≤2nm (suppresses pump light residuals)
- Optical Communication: 0.8nm (100GHz channel spacing)
- Damage Threshold:
- Laser Processing: ≥50J/cm² (10ns pulses)
- Optical Communication: ≥0.3W (continuous wave)
- Polarization-Dependent Loss:
- Laser Processing: No strict requirement
- Optical Communication: ≤0.05dB (critical for coherent systems)
- Temperature Stability:
- Laser Processing: Secondary (relies on external temperature control)
- Optical Communication: Critical (requires built-in temperature regulation)
IV. Typical Failure Modes and Mitigation Strategies
1. Laser Processing Scenario
Failure Mode:
Laser-induced damage (LID) on filter surfaces, manifesting as local melting or cracks.
Mitigation:
- Use ion-beam polishing (surface roughness < 0.5nm) to eliminate scattering centers
- Perform post-coating laser conditioning (10% rated power, 10⁴ pulses) to enhance damage resistance
2. Optical Communication Scenario
Failure Mode:
Wavelength drift due to temperature changes, leading to increased bit error rate.
Mitigation:
- Employ substrates with matched thermal expansion (e.g., ultra-low expansion glass ULE)
- Integrate miniature Peltier elements for active temperature compensation
By adhering to these configurations, 1080nm filters enable efficient energy transmission with stray light suppression in laser processing, and precise wavelength selection with polarization insensitivity in optical communication. Customized designs should always consider specific system parameters (laser power, transmission distance, environmental temperature range) for optimal performance.
